Description

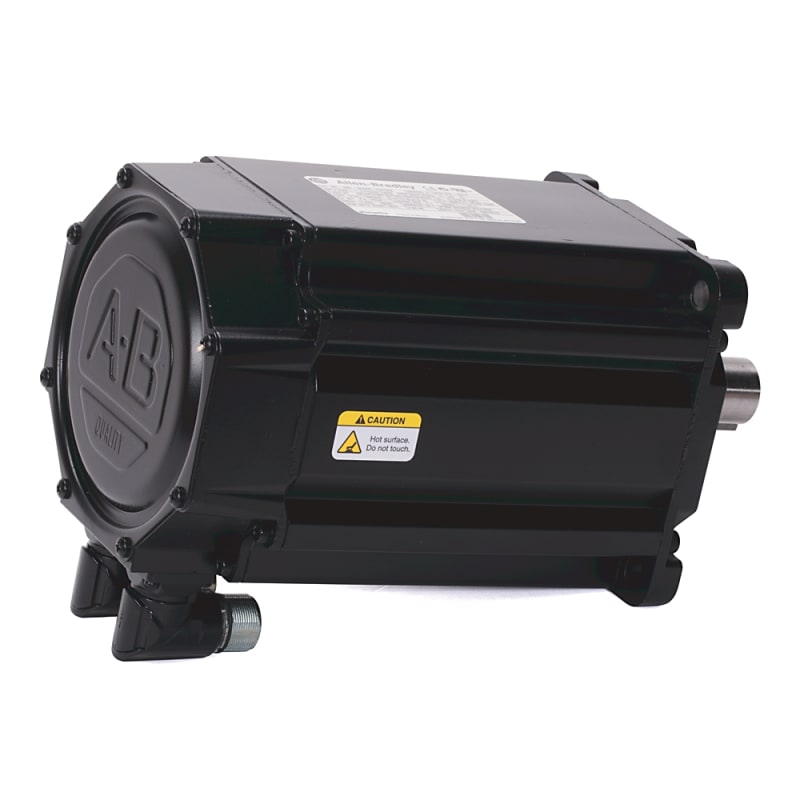

The Allen-Bradley MPL-B580J-MJ74AA is a low-inertia, brushless servo motor from the MP-Series, designed for high-performance motion control. It features a 460V winding, multi-turn high-resolution encoder, and a keyed shaft with DIN-style rotatable connectors.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
MPL-B580J-MJ74AA |
| Subcategory |
Servo Motors |
| Series |
Premium permanent magnet rotary servo motor |
|
Series Type
|
Low-inertia |
| Voltage Class |
400 Volts AC |
| Frame Size |
165 millimeters |
| Magnetic Stack Length |
8 inches |
| Rated Speed |
3750 rpm |
| Feedback |
Multi-turn high-resolution encoder |
| Connectors |
Circular DIN, right angle, 180 degrees rotatable |
| Brake |
24 Volts DC brake |
| Mounting Flange |
IEC metric |
| Weight |
29.48 kgs |
Information About MPL-B580J-MJ74AA
The MPL-B580J-MJ74AA servo motor from Allen-Bradley’s MP-Series is built for applications requiring fast response and exacting motion control. It features a low-inertia design, which allows for faster acceleration and deceleration, improving system throughput. Operating at a 400V AC class voltage, this motor includes a 165 mm IEC metric flange for standard mounting and a magnetic stack length of 8 inches, providing a balance of power and compact size.
Key Features:
- Low-Inertia Design: Enables high acceleration and deceleration for quick, responsive motion control.
- Multi-Turn High-Resolution Encoder: Offers precise position feedback for accurate and repeatable motion.
- DIN-Style Connectors: Circular, 180° rotatable connectors simplify installation and maintenance in space-constrained panels.
- 460V AC Winding: Designed for high-voltage industrial systems, optimizing torque output with efficient operation.
- 24V DC Brake: Integrated braking system ensures safe motor stop and holding power when power is removed.
- IEC Metric Mounting Flange: Ensures compatibility with standard European and global motor mounts.
- High Rated Speed: Delivers up to 3750 RPM for high-speed applications requiring fast system throughput.
- Robust Construction: With a total weight of 29.48 kg, the motor is designed for industrial durability and reliability.
- Premium Magnetic Stack: 8-inch stack length provides balanced torque performance with reduced cogging and vibration.
The MPL-B580J-MJ74AA servo motor offers fast, accurate motion control performance in demanding automation systems, combining efficiency with robust feedback and installation flexibility.
