Description

The Allen-Bradley 25B‑B062N104 is a 240 VAC, 3-phase PowerFlex 525 AC adjustable-frequency drive featuring embedded Ethernet/IP and safety functions.

Technical Specifications

Information About 25B-B062N104

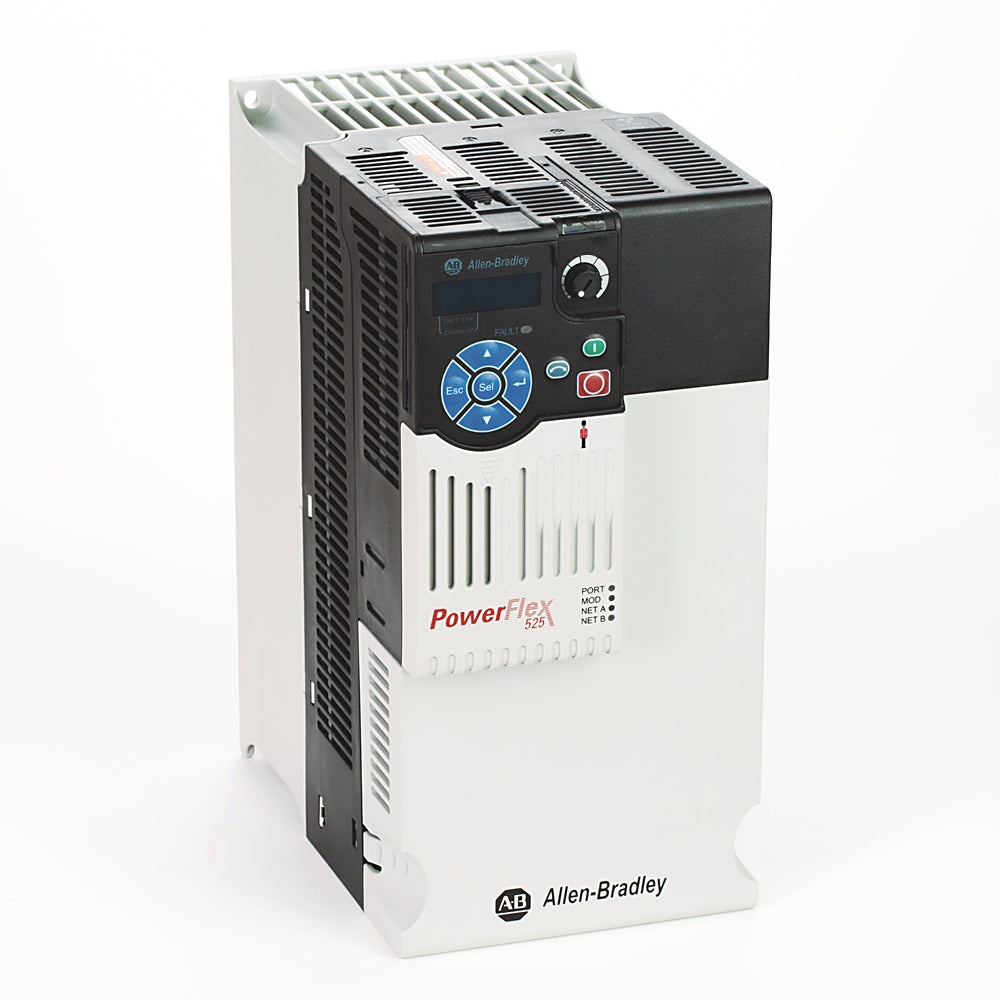

The Allen‑Bradley 25B‑B062N104 is a PowerFlex 525 AC variable-frequency drive designed for demanding industrial motor control applications.

Key Features:

• Series: PowerFlex 525

• Input Voltage: 200–240 VAC, 3-phase

• Output Current: 62.1 A

• Power Rating:

  • Normal Duty: 20 HP (15 kW)

  • Heavy Duty: 15 HP (11 kW)

• Frame & Enclosure: Frame E, IP20 (open-type)

• Communications: Built-in EtherNet/IP, USB, and DSI/RS‑485

• Safety Feature: Integrated Safe Torque Off (STO)

• Control Modes: V/Hz, Sensorless Vector, Closed-loop Velocity Vector, Permanent Magnet motor control

• Cooling: Internal fan-cooled; supports panel or DIN-rail mounting

• Dimensions: Approx. 185 × 300 × 279 mm

• Certifications & Compliance: UL/NEMA open type, meets safety and EMC standards

Widely used in networked industrial systems, this drive offers modular setup, advanced motor control, and built-in safety and communication capabilities. It's active and supported, ideal for modernizing control panels and optimizing motor-driven equipment.
