Description

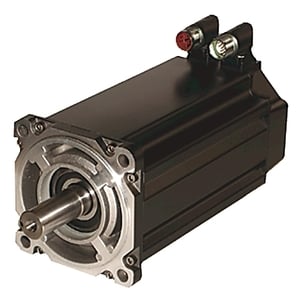

The MPL-B4540F-SJ72AA is a high-performance servo motor from Allen-Bradley's Bulletin MPL series. Designed for dynamic applications, this low-inertia motor delivers precise motion control with fast acceleration and high torque consistency.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
MPL-B4540F-SJ72AA
|
| Subcatecory |
|
| Series Type |
Low-inertia |
| Voltage Class |
400 Volts AC |
| Frame Size |
130 millimeters |
| Magnetic Stack Length |
4 inches |
| Rated Speed |
3000 rpm |
| Feedback |
Single-turn high-resolution encoder |
| Shaft Key/Seal |
Shaft key/no shaft seal |
| Connectors |
Circular DIN, right angle, 180 degrees rotatable |
| Brake |
No brake |
| Weight |
19.00 lbs |
Information About MPL-B4540F-SJ72AA
The MPL-B4540F-SJ72AA is part of Rockwell Automation’s MP-Series of low-inertia servo motors, engineered for responsiveness and energy efficiency. It operates at 400 Volts AC, with a 130 mm frame size and a 4-inch magnetic stack length, making it compact yet powerful. This model features a 3000 rpm rated speed, optimized for smooth and reliable control. It integrates a single-turn high-resolution encoder using Hyperface protocol for accurate feedback in position control tasks.
Key Features:
-
High-Performance Low-Inertia Design: Provides fast acceleration and responsive control for dynamic motion applications.
-
Precision Feedback: Includes a single-turn high-resolution encoder (Hyperface) for accurate motion tracking.
-
Versatile Connector Layout: Circular DIN connectors with 180° rotation enable flexible installation.
-
Durable Frame: 130 mm frame with 4-inch magnetic stack for balanced size-to-performance ratio.
-
IEC-Compatible Mounting: Simplifies integration with standardized machinery designs.
The MPL-B4540F-SJ72AA is an excellent solution for high-precision motion systems requiring speed, torque stability, and reliable performance in automation.
