Description

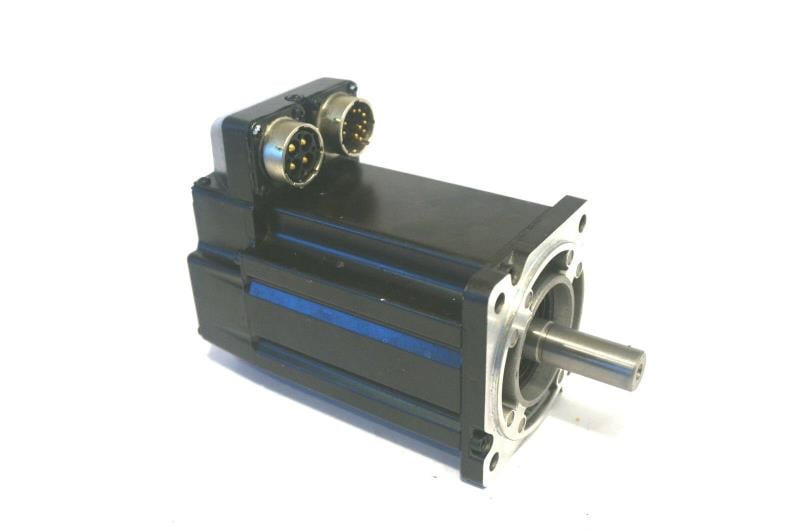

The MPL-A430H-HJ72AA is a compact, high-performance brushless servo motor from Allen-Bradley’s MP-Series. Designed for applications requiring precision, speed, and responsiveness, it features a 115 mm frame and 3500 RPM rated speed for dynamic motion control.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Motors
Part Number	MPL-A430H-HJ72AA
Subcatecory	Servo Motors
Series	MP
Product Family	MP Series Low Inertia servo motors
Series Type	Low Inertia
Voltage	200 V
Continuous Stall Torque	6.21 N-m
Frame Size	4 = 115 mm
Continuous Current (0-pk)	12.2 A
Magnetic Stack Length	3 in.
Rated Power	1.8 kW
Rated Speed	3500 rpm
Maximum operating speed	5000 rpm
Brake	No Brake
Encoder	2000 Line count encoder
Mounting Flange	IEC Metric





Information About MPL-A430H-HJ72AA

The MPL-A430H-HJ72AA is a 200V class Low Inertia AC Synchronous Brushless Servo Motor, part of Allen-Bradley's MP-Series. Engineered for high-torque and high-speed requirements, this servo motor features a frame size of 115 mm and a magnet stack length of 76.2 mm (3 inches). This model delivers continuous stall torque of 6.21 N·m and supports a continuous current of 12.2 A (0-pk). With its right-angle circular DIN (SpeedTec) connector, the motor supports a 180-degree rotatable design for flexibility in cable routing.

Key Features:

• Low Inertia Design: Optimized for dynamic, high-speed motion control

• Integral Encoder: 2000-line incremental encoder for precise feedback

• Right-Angle DIN Connector: Rotatable 180° SpeedTec DIN for versatile mounting

• Continuous Stall Torque: 6.21 N·m for robust operation

• High-Speed Operation: Rated for 3500 RPM

• Compact Frame: 115 mm frame with 3-inch magnet stack

• Reliable Power Delivery: Supports continuous current of 12.2 A and rated power of 1.8 kW

The MPL-A430H-HJ72AA servo motor is a powerful and compact solution designed to deliver responsive and reliable motion control in industrial automation systems.
