Description

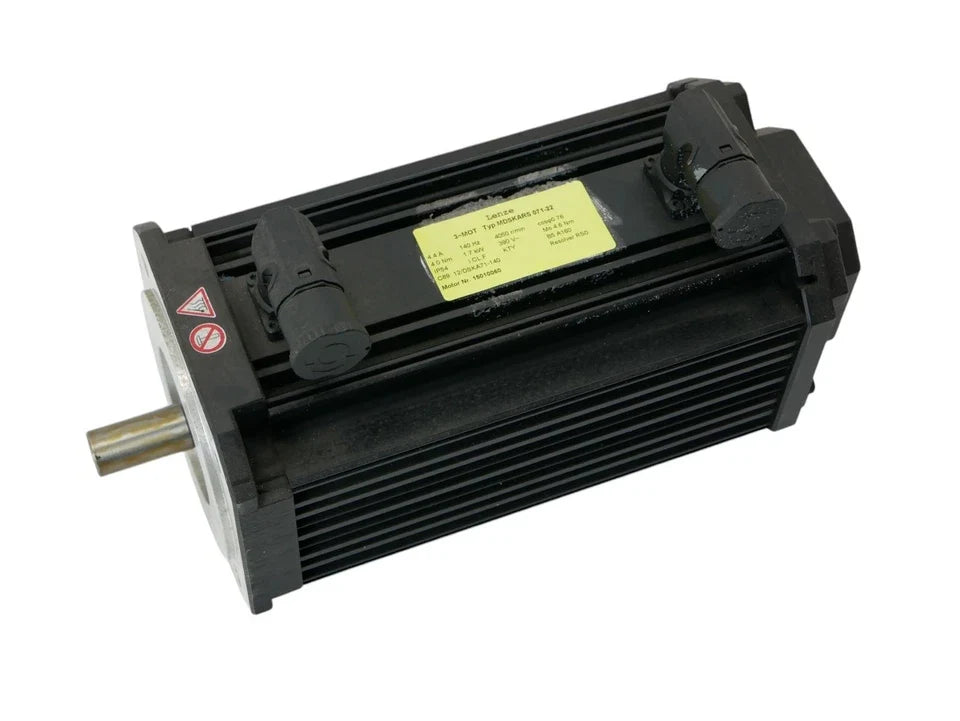

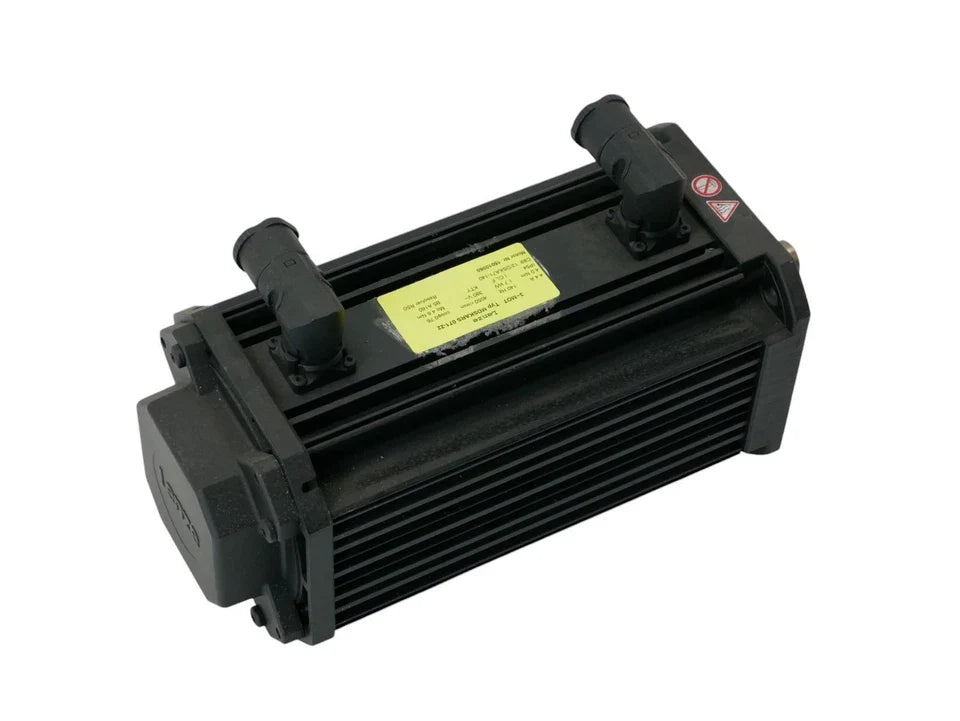

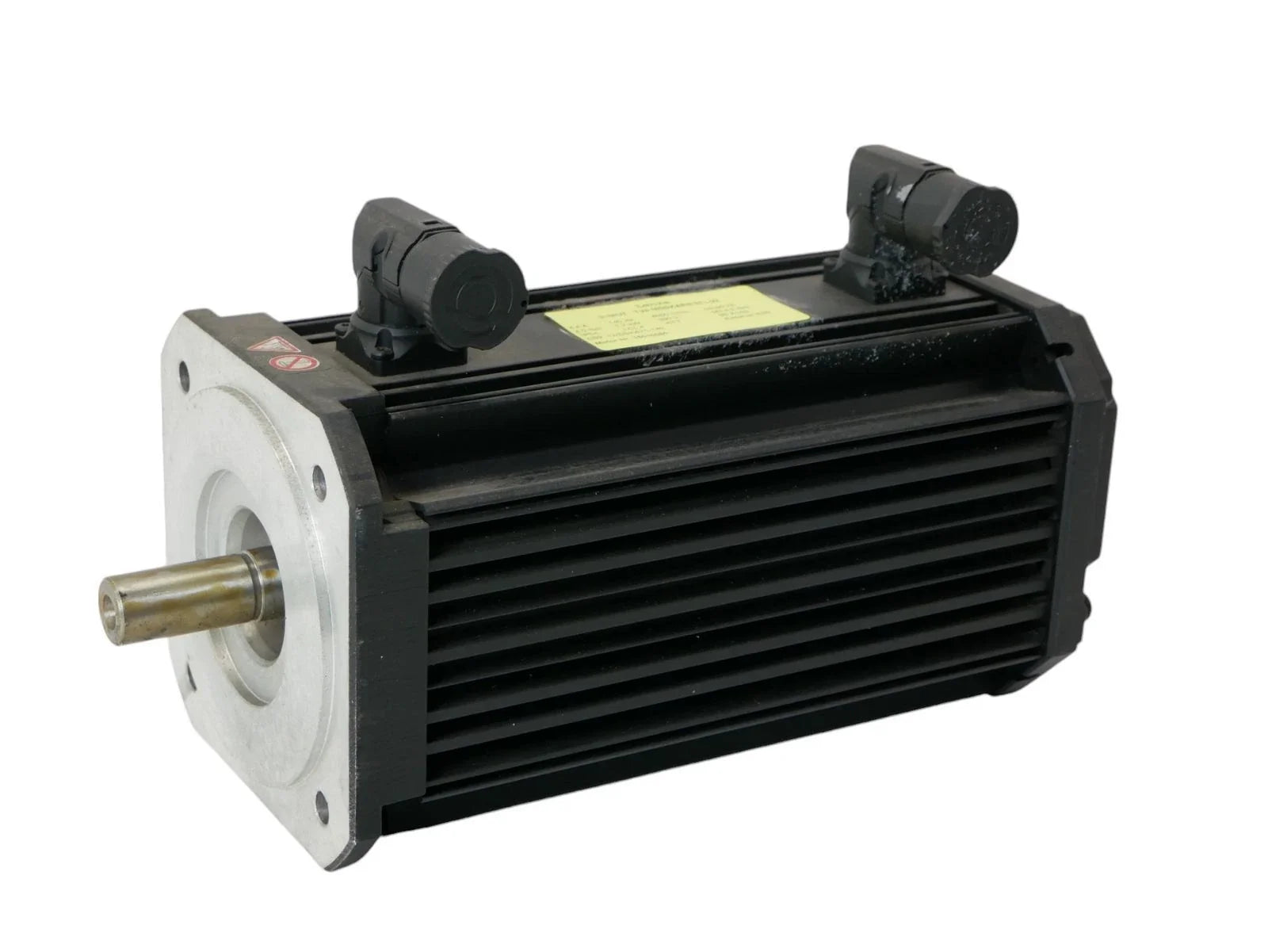

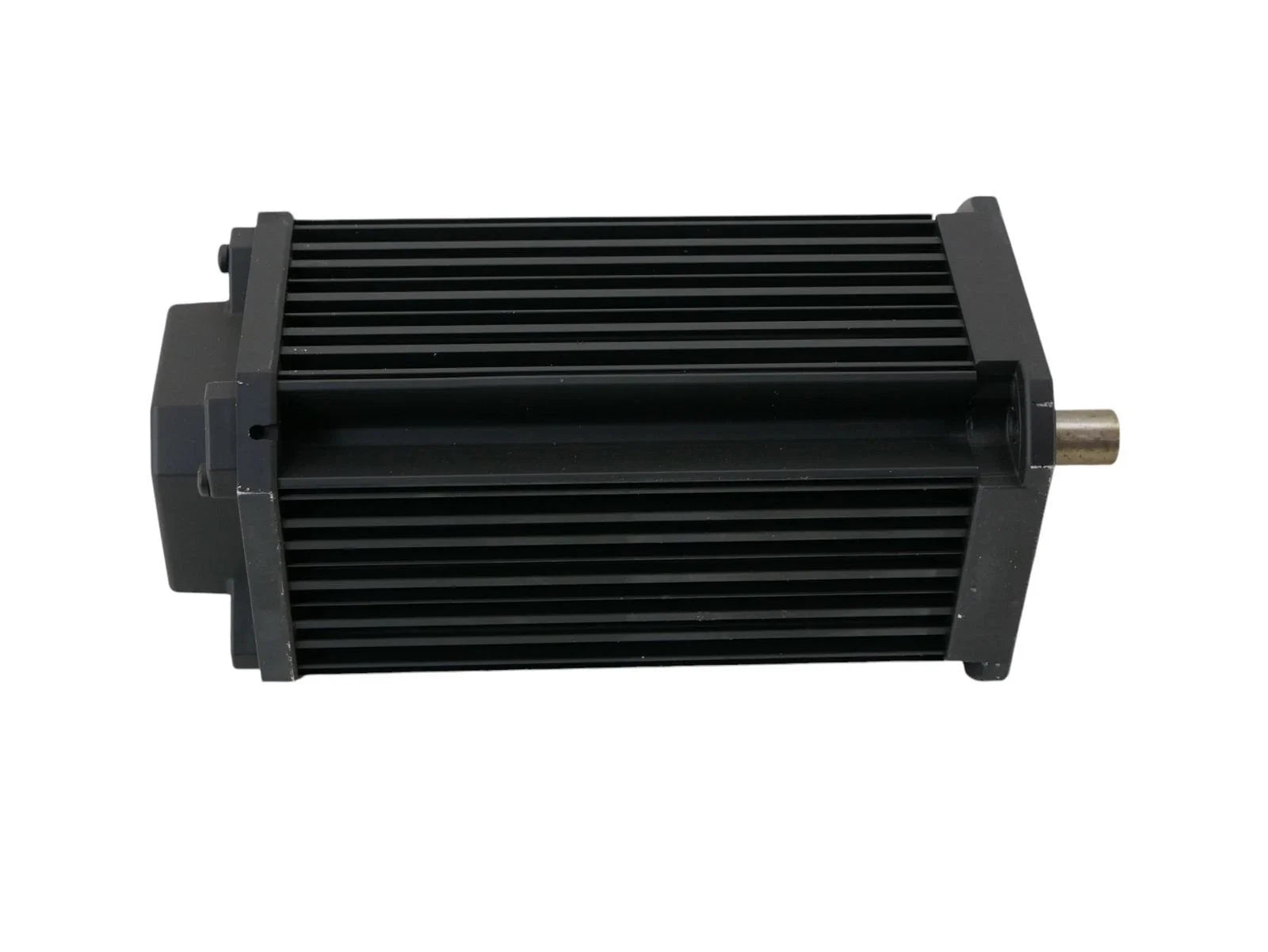

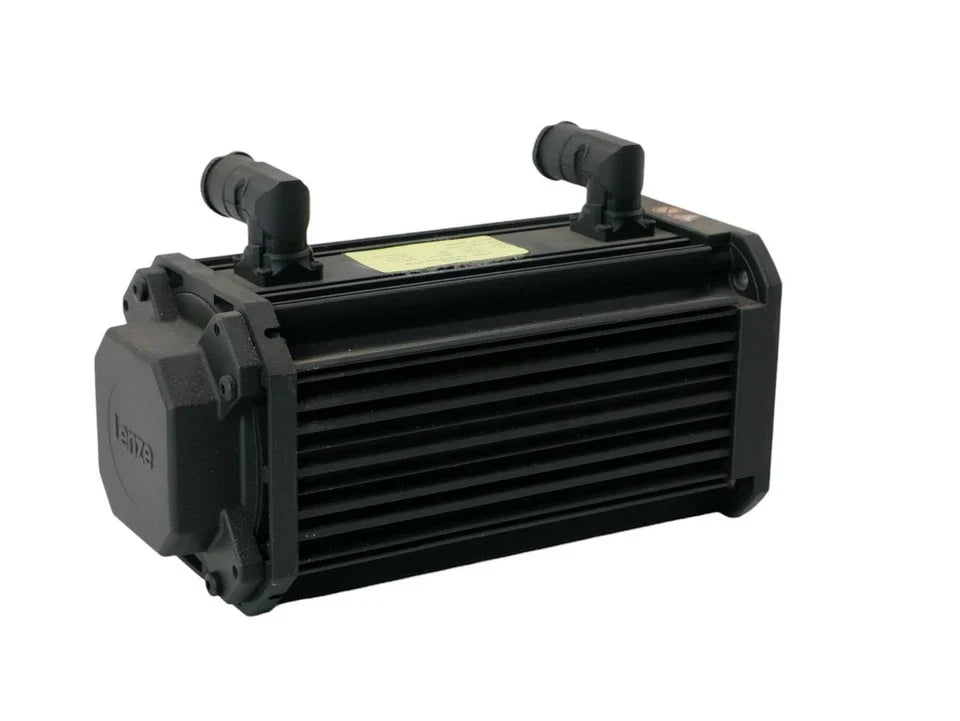

The Lenze MDSKARS071-22 is a three-phase servo motor designed for precision motion control in industrial automation systems. Rated at 1.7 kW (2 HP) with a nominal current of 4.4 A at 390 V, it delivers speeds up to 4050 RPM and a rated torque of 4 Nm. This motor is engineered for dynamic positioning and controlled torque applications in coordinated drive systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motors |
| Part Number |
MDSKARS071-22 |
| Subcategory |
Servo Motors |
| Motor Type |
AC Servo Motor |
| Phase |
Three-Phase |
| Rated Voltage |
390 V |
| Rated Current |
4.4 A |
| Power Rating |
1.7 kW |
| Horsepower |
2 HP |
| Rated Speed |
4050 RPM |
| Rated Torque |
4 Nm |
| Application |
Precision Motion Control |
| Cooling Type |
Self-Cooled |
| Weight |
Approx. 9 kg |
Information About MDSKARS071-22
The MDSKARS071-22 is part of Lenze’s servo motor portfolio developed for high-response motion control and integration with compatible Lenze servo controllers. It operates on a three-phase 390 V supply and is built to provide consistent torque output across a wide speed range. The motor’s 4 Nm rated torque and 4050 RPM speed capability make it suitable for applications requiring rapid acceleration and accurate positioning. Designed for industrial environments, it supports closed-loop control systems used in packaging, material handling, and automated production equipment.
Key Features:
- 1.7 kW / 2 HP Power Rating: Suitable for medium-duty servo-driven machinery.
- 4 Nm Rated Torque: Provides stable torque output for controlled motion tasks.
- 4050 RPM Maximum Speed: Enables high-speed operation with rapid response.
- 390 V Three-Phase Operation: Designed for industrial servo drive systems.
- 4.4 Amp Rated Current: Optimized electrical performance for matched controllers.
- Precision Motion Capability: Engineered for accurate positioning and speed regulation.
- Industrial Construction: Built for integration into automated production environments.
The MDSKARS071-22 delivers the reliability and precision required for dynamic servo motor applications in industrial automation systems.
