Description

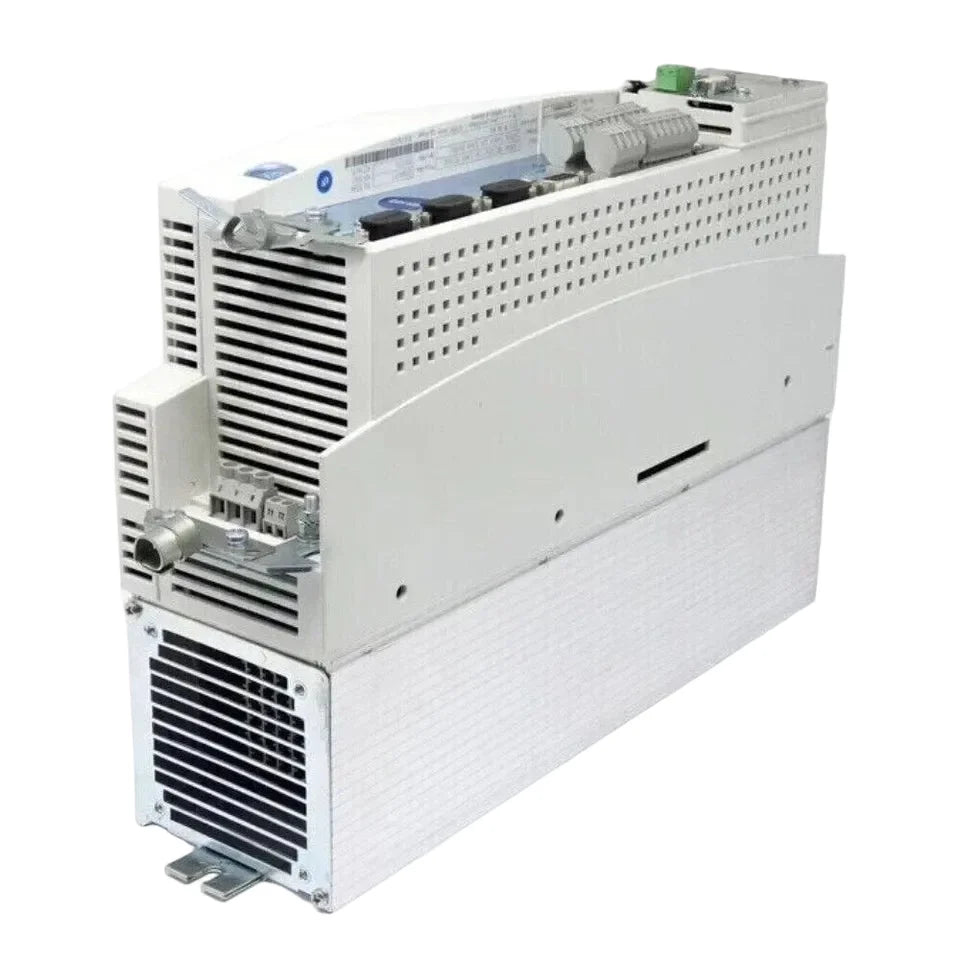

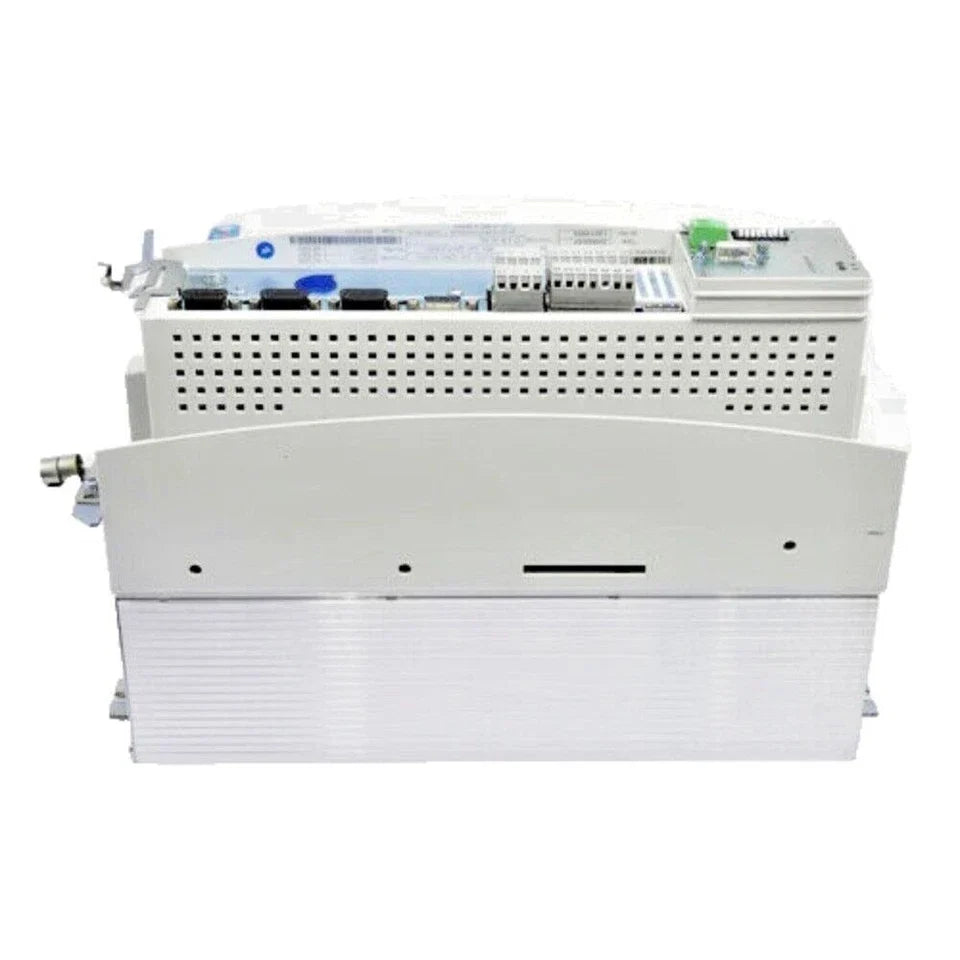

The Lenze EVS9323-EP is a servo position controller designed for precise positioning, speed, and torque control in industrial automation systems. Operating at 400/480 VAC, the EVS9323-EP supports servo motor applications up to 1.5 kW (2 HP) and is built as a panel-mounted, built-in unit for control cabinet installation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motion Control |
| Part Number |
EVS9323-EP |
| Subcategory |
Servo Controllers |
| Series |
9300 Series |
| Controller Type |
Servo Position Controller |
| Mounting Style |
Panel Mounted Built-In Unit |
| Rated Motor Power |
1.5 kW (2 HP) |
| Mains Voltage Range |
320–528 VAC |
| Rated Supply Voltage |
400 V / 480 V |
| Input Phase |
3 Phase |
| Mains Current (with filter) |
3.9 A |
| Mains Current (without filter) |
5.5 A |
| Output Power (U, V, W @ 8 kHz) |
2.7 kVA (400 V), 3.2 kVA (480 V) |
| DC Link Output Power |
2.2 kW |
| Output Current (8 kHz) |
3.9 A |
| Output Current (16 kHz) |
2.9 A |
| Power Loss |
140 W |
| Weight |
11.00 lbs (4.99 kg) |
Information About EVS9323-EP
The Lenze EVS9323-EP is a servo position controller designed for precise positioning, speed, and torque control in industrial automation systems. Operating at 400/480 VAC, the EVS9323-EP supports servo motor applications up to 1.5 kW (2 HP) and is built as a panel-mounted, built-in unit for control cabinet installation.
Key Features:
- 9300 Series Servo Platform: Engineered for high-precision motion and positioning control.
- Integrated Position Controller: Provides accurate positioning without external control hardware.
- Wide Mains Voltage Range: Operates from 320 to 528 VAC for 400 V and 480 V systems.
- High Motor Power Support: Rated for servo motor operation up to 1.5 kW (2 HP).
- Configurable Switching Frequency: Supports 8 kHz and 16 kHz operation for optimized performance.
- Panel-Mounted Built-In Unit: Designed for vertical installation in industrial control cabinets.
- Efficient Power Handling: Maintains stable output with controlled power loss under load conditions.
The EVS9323-EP delivers the reliability and precision required for industrial servo positioning and motion control applications.
