Description

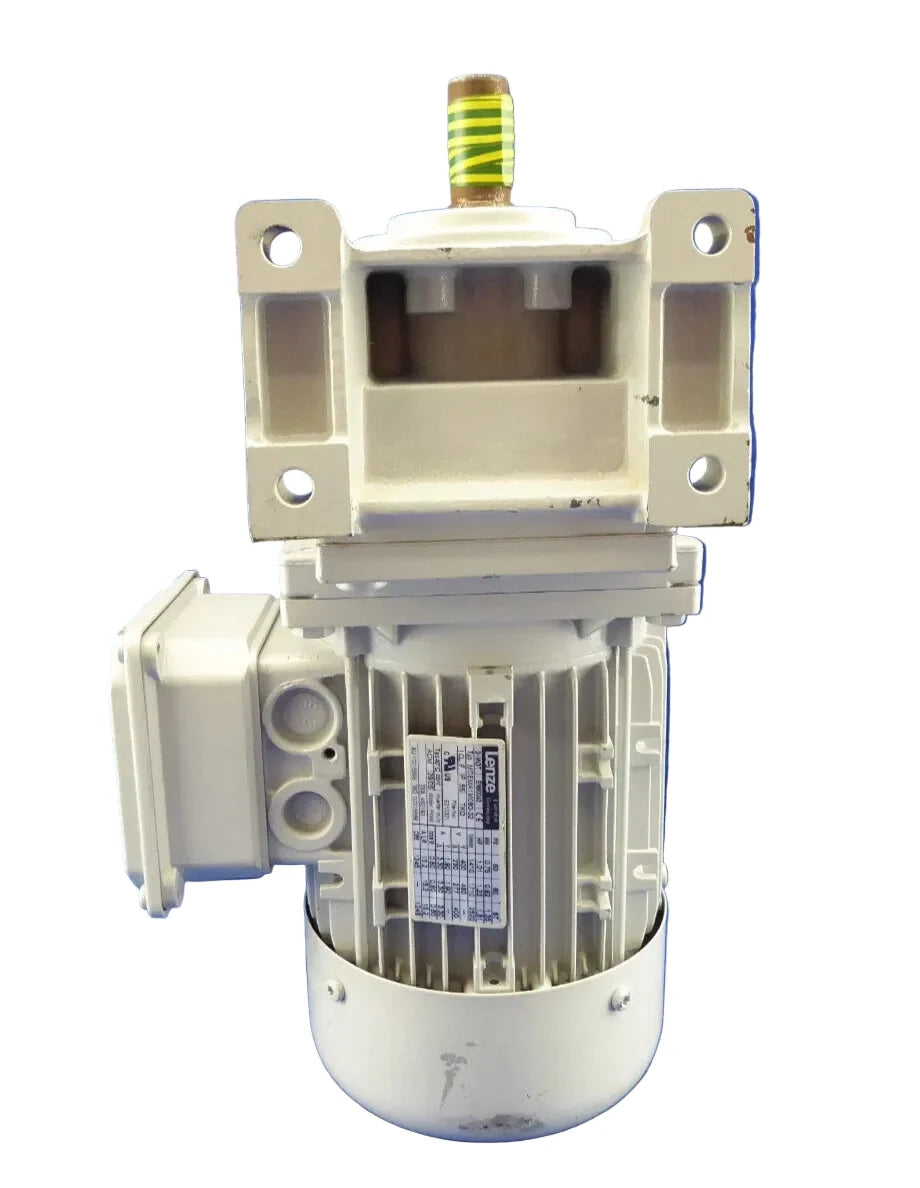

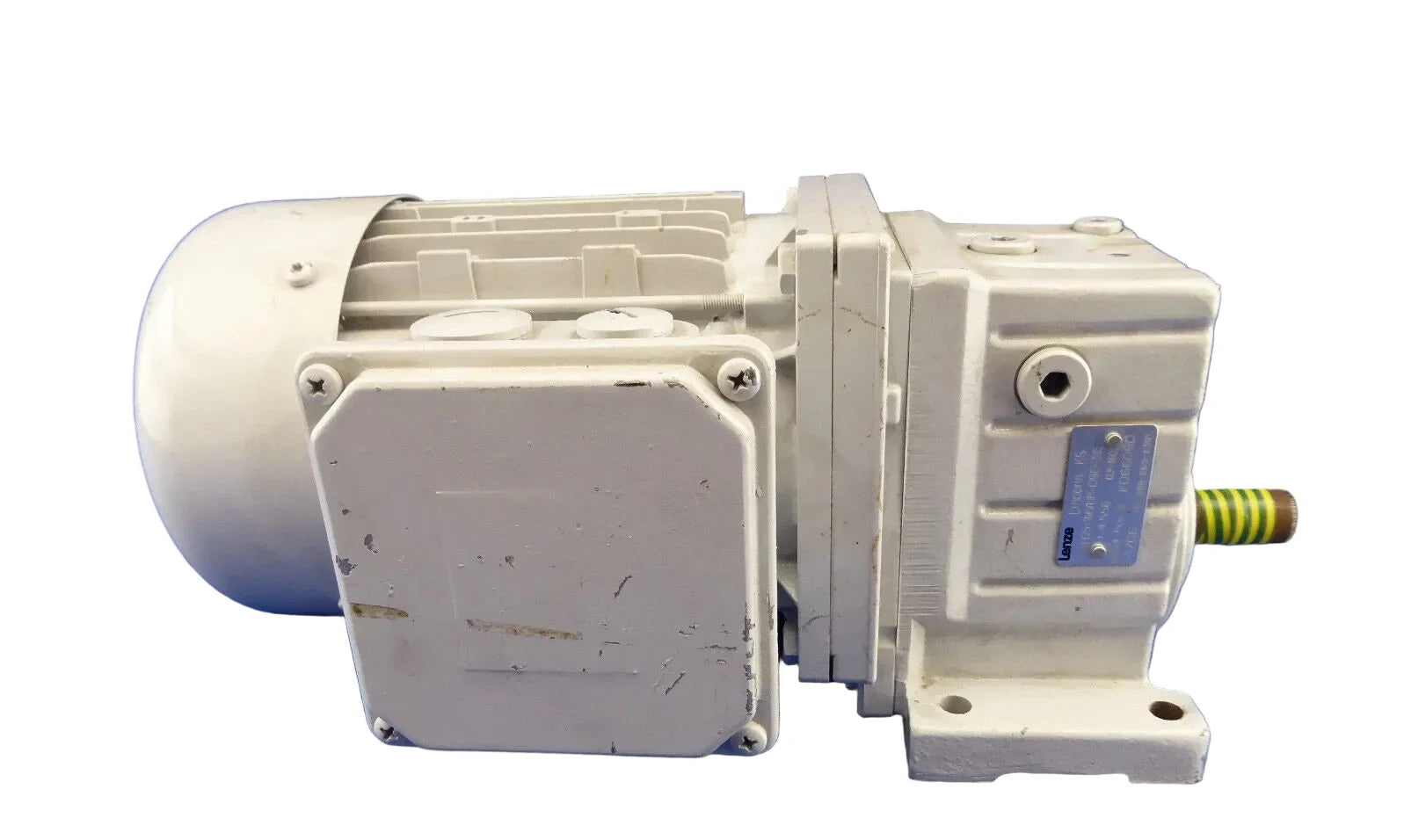

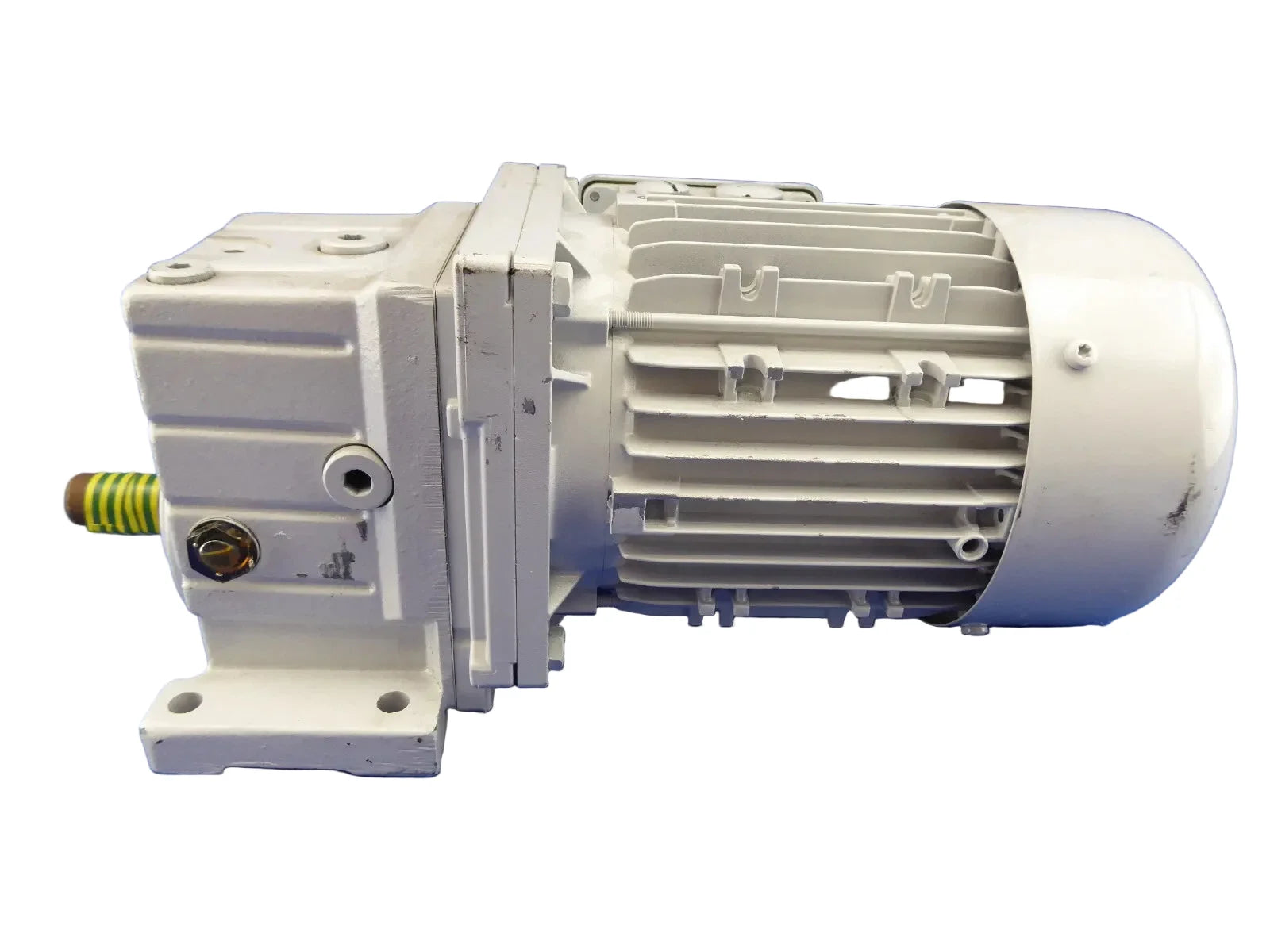

The Lenze MDEMA1M080-32 is a three-phase AC motor designed for reliable operation in industrial drive and automation systems. Built in a compact 80 mm frame size, the MDEMA1M080-32 delivers consistent torque and speed performance across a wide frequency range for general-purpose motor applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motors |
| Part Number |
MDEMA1M080-32 |
| Subcategory |
AC Motors |
| Motor Type |
AC Motor |
| Phase |
3 Phase |
| Efficiency Class |
IE1 |
| Rated Voltage |
400/480 VAC |
| Rated Current |
1.9 A |
| Power Rating |
0.75–1.5 kW |
| Operating Frequency |
50–87 Hz |
| Rated Speed |
1710 RPM |
| Pole Configuration |
4 Pole |
| Frame Size |
80 mm |
| Cooling Method |
Integral Fan |
| Shaft Design |
Internal Key |
| Weight |
23 lbs |
Information About MDEMA1M080-32
The MDEMA1M080-32 is part of Lenze’s IEC-compliant AC motor lineup engineered for dependable performance in industrial environments. It features an IE1 efficiency rating and a robust construction with an integral cooling fan to support continuous operation. The motor is designed for three-phase operation and includes an internal shaft key for secure mechanical coupling. With a four-pole configuration and wide operating frequency range, it is suitable for use with variable frequency drives in automated machinery.
Key Features:
- Three-Phase AC Motor Design: Engineered for stable and efficient industrial motor operation.
- IE1 Efficiency Class: Provides reliable energy performance for standard-duty applications.
- Four-Pole Motor Configuration: Delivers balanced torque and a nominal speed of 1710 RPM.
- Integral Cooling Fan: Ensures effective heat dissipation during continuous operation.
- Compact 80 mm Frame Size: Enables installation in space-constrained machinery layouts.
- Internal Shaft Key: Provides secure and precise mechanical power transmission.
- Wide Frequency Operating Range: Supports operation from 50 to 87 Hz for variable speed use.
The MDEMA1M080-32 delivers the reliability and precision required for industrial AC motor drive applications.
