Description

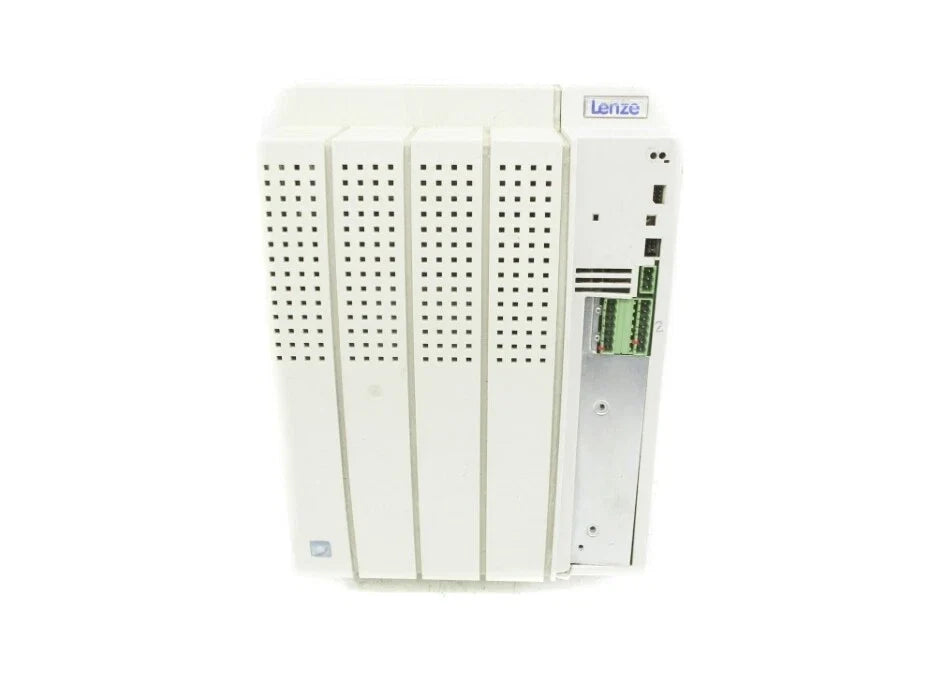

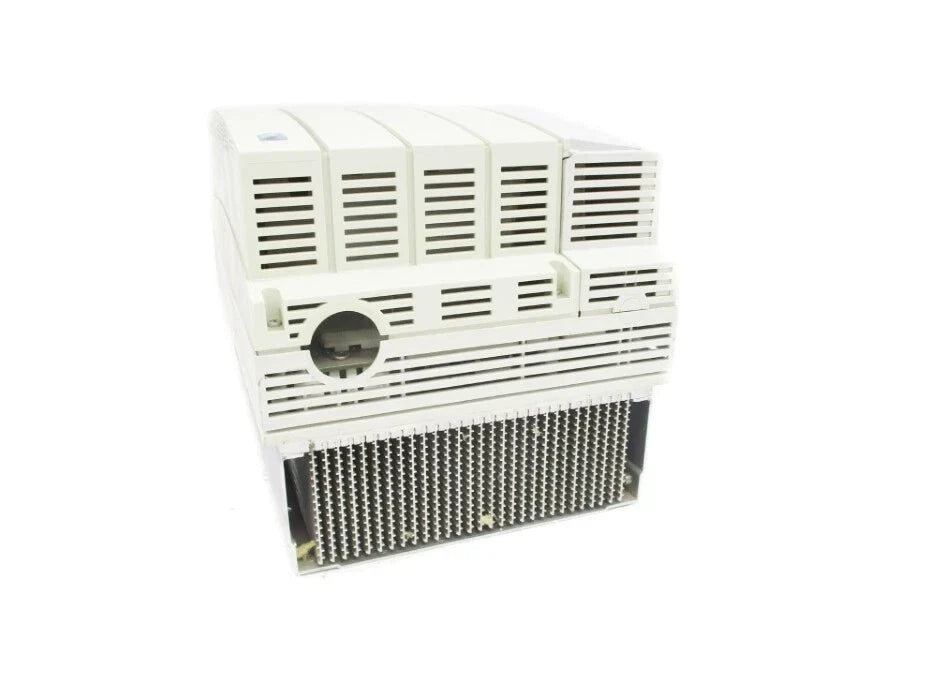

The Lenze EVF8221-E is a robust 8200 Vector AC drive frequency inverter designed to control three-phase motors up to 15 kW. It operates on a 400/480 VAC three-phase supply and delivers adjustable output up to 0–480 VAC at 32 A for versatile speed regulation. This industrial inverter supports operation at standard 50/60 Hz and is suited for variable-speed motor applications in automated systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Motion Control |
| Part Number |
EVF8221-E |
| Subcategory |
AC Drives / Frequency Inverters |
| Series |
8200 Vector |
| Power Rating |
15 kW (22 kVA) |
| Input Voltage |
3/PE AC 400/480 VAC |
| Input Current |
29 A |
| Input Frequency |
50/60 Hz |
| Output Voltage |
0-480 VAC |
| Output Current |
32 A |
| Output Frequency |
0-480 Hz |
| Control Type |
Variable Frequency Drive |
| Cooling |
Built-in cooling (fan) |
| Mounting Type |
Panel / Cabinet Mount |
| Protection / Enclosure |
Standard industrial |
| Weight |
28.81 lbs (13.07 kg) |
| Application |
Variable-speed motor control |
Information About EVF8221-E
The EVF8221-E is part of Lenze’s 8200 Vector frequency inverter series, a modular family of drives used in a wide range of industrial motion control applications. It accepts a three-phase AC input of 400–480 VAC and 29 A, converting it into a controlled AC output that can vary from 0 to 480 V to regulate motor speed and torque. With a power rating of 15 kW (22 kVA) and an output current capacity of 32 A, it is configured to match medium-power motor requirements. Designed for versatility and integration, the 8200 Vector drives are valued for compact dimensions and adaptability in control cabinets.
Key Features:
- 15 kW Power Rating: Delivers substantial power for medium industrial motor applications.
- 22 kVA Apparent Power: Sized for heavy continuous industrial duty.
- 480 VAC Three-Phase Input: Compatible with standard industrial power systems.
- Adjustable Output Voltage: 0–480 VAC output for flexible motor speed control.
- 32 A Output Current: Supports motors with higher current draw.
- 50/60 Hz Operation: Designed for global utility frequency standards.
- 8200 Vector Series: Part of a modular drive family with diagnostic and communication support.
- Industrial Drive Design: Suited for integration in automated machinery and control panels.
The EVF8221-E delivers the reliability and performance required for controlled variable-speed three-phase motor drives in industrial automation.
