Description

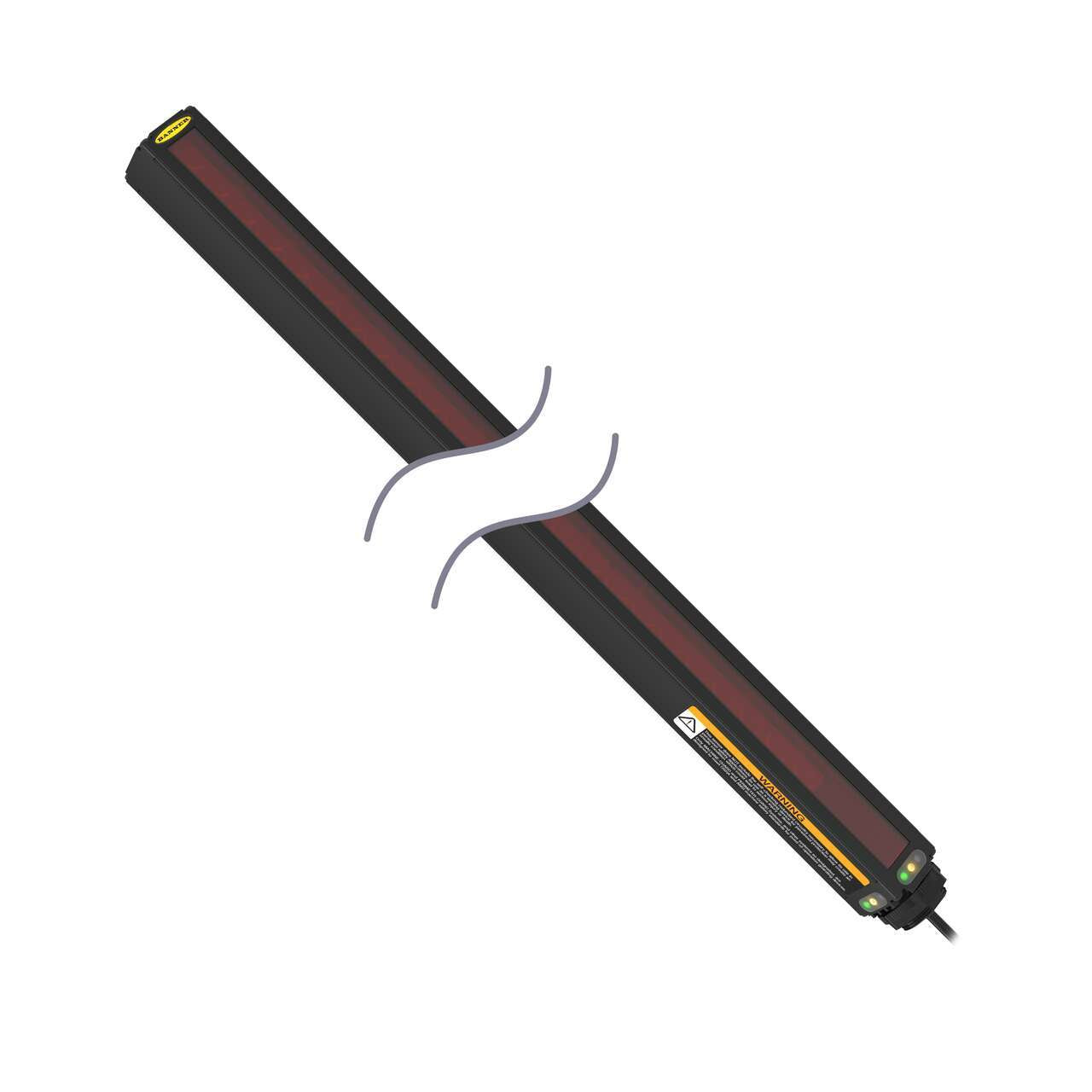

The Banner Engineering MAHE26A is a high-resolution measuring light curtain emitter designed for precise detection and measurement tasks in industrial environments. This emitter generates a dense infrared beam array with fine beam spacing for accurate object sensing. It is used together with a compatible receiver to form a complete measuring light curtain system.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Safety Systems |
| Part Number |
MAHE26A |
| Subcategory |
Safety Light Curtains |
| Product Type |
Measuring Light Curtain Emitter |
| Emitter Type |
Infrared |
| Beam Spacing |
2.5 mm |
| Number of Beams |
256 |
| Array Length |
650 mm |
| Housing Length |
724 mm |
| Minimum Object Sensitivity |
2.5 mm |
| Emitter/Receiver Range |
0.38 – 1.8 m |
| Supply Voltage |
12 VDC |
| Housing Material |
Aluminum |
| Maximum Operating Temperature |
50 °C |
| Maximum Relative Humidity |
95% |
| System Configuration |
Three-piece system |
| Weight |
0.91 kg |
Information About MAHE26A
The MAHE26A is part of Banner Engineering’s MINI-ARRAY high-resolution measuring light curtain family. It features a compact aluminum housing and operates as the emitter component within a three-piece measuring system. The device provides a tightly spaced beam configuration to enable high-resolution measurement of small objects. It is designed for industrial automation and inspection applications requiring reliable optical measurement performance.
Key Features:
-
High-resolution measuring emitter: Designed for precision optical measurement systems
-
Dense infrared beam array: Provides accurate detection with minimal blind spots
-
Fine beam spacing: Enables measurement of small objects with high precision
-
Aluminum housing: Ensures durability in industrial environments
-
Extended measurement height: Supports large inspection areas
-
Compatible system design: Operates with matching receiver and controller
The MAHE26A delivers the reliability and precision required for industrial measuring and inspection light curtain systems.
