Description

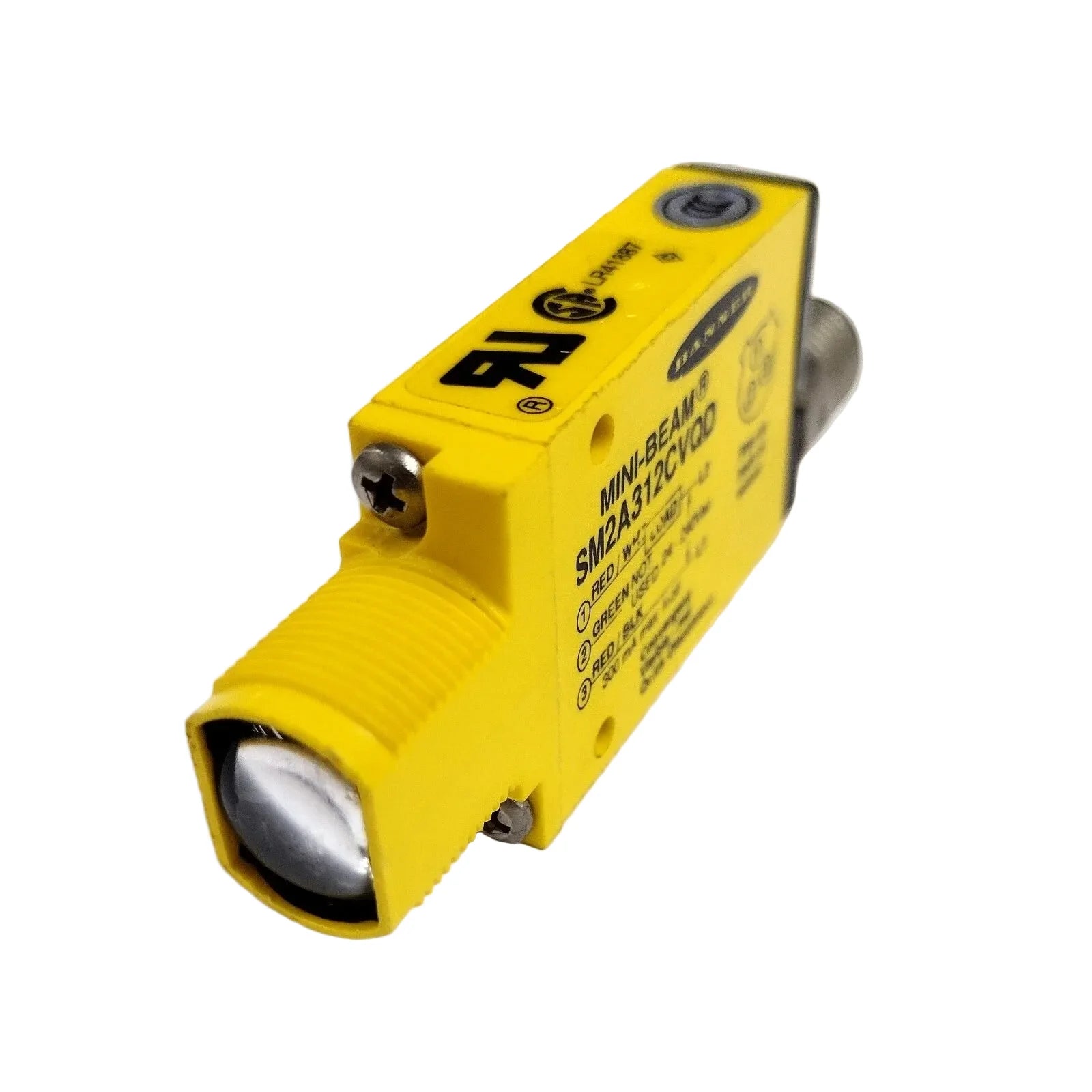

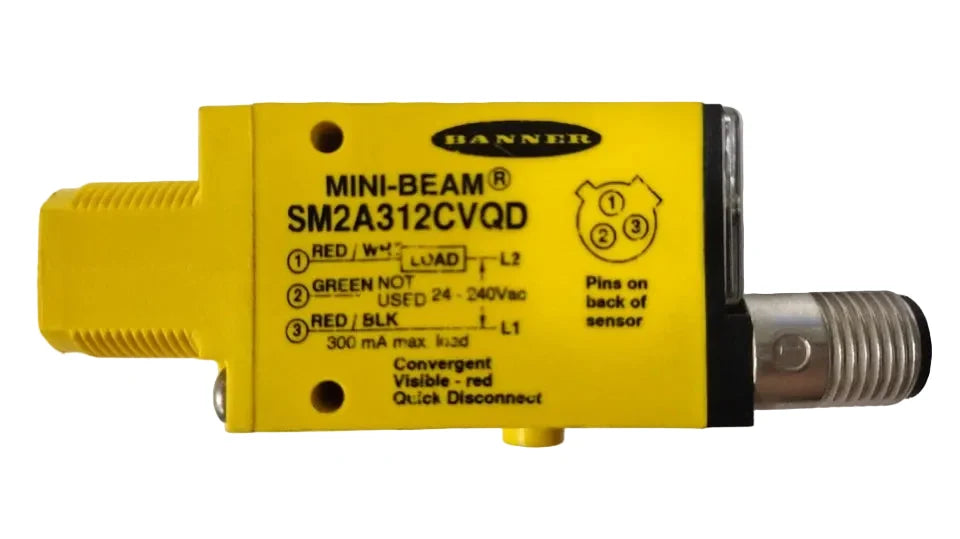

The Banner Engineering SM2A312CVQD is an AC-powered convergent photoelectric sensor designed for precise short-range proximity detection. It features a fixed 16 mm focal point and a visible red 650 nm LED light source. The sensor provides a solid-state AC switching output and operates on a 24–240 VAC supply.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
SM2A312CVQD |
| Subcategory |
Photoelectric |
| Series |
MINI-BEAM AC |
| Sensing Mode |
Convergent |
| Focal Distance |
16 mm |
| Light Source |
Visible Red LED, 650 nm |
| Supply Voltage |
24–240 VAC |
| Output Type |
Solid-State AC Switch (SPST) |
| Response Time |
4 ms |
| Repeatability |
1300 µs |
| Turn-On Delay |
300 ms |
| Connection Type |
3-pin Micro Integral QD |
| Housing Style |
Rectangular with M18 Mount |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Environmental Rating |
IP67 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature |
-20°C to +70°C |
| Maximum Relative Humidity |
90% at 50°C |
| Weight |
0.16 lbs |
Information About SM2A312CVQD
The SM2A312CVQD is part of the Banner Engineering MINI-BEAM® AC series, developed for industrial sensing applications requiring direct AC line operation. It uses convergent sensing technology to detect objects at a defined focal distance while reducing background influence. The sensor includes a potentiometer for sensitivity adjustment and supports light or dark operate modes. Its thermoplastic rectangular housing with M18 threaded mounting and IP67/NEMA 4X protection enables installation in industrial environments.
Key Features:
-
Convergent sensing mode: Fixed 16 mm focal point for controlled object detection.
-
AC line operation: Operates directly on 24–240 VAC supply.
-
Visible red LED source: 650 nm wavelength for alignment and sensing.
-
Solid-state AC switch output: SPST two-wire configuration.
-
Adjustable sensitivity: Potentiometer-based tuning.
-
IP67 environmental rating: Sealed housing for industrial environments.
-
Micro-style quick disconnect: 3-pin integral connector for simplified wiring.
The SM2A312CVQD delivers the reliability and precision required for industrial AC-powered convergent photoelectric sensing applications.
