Description

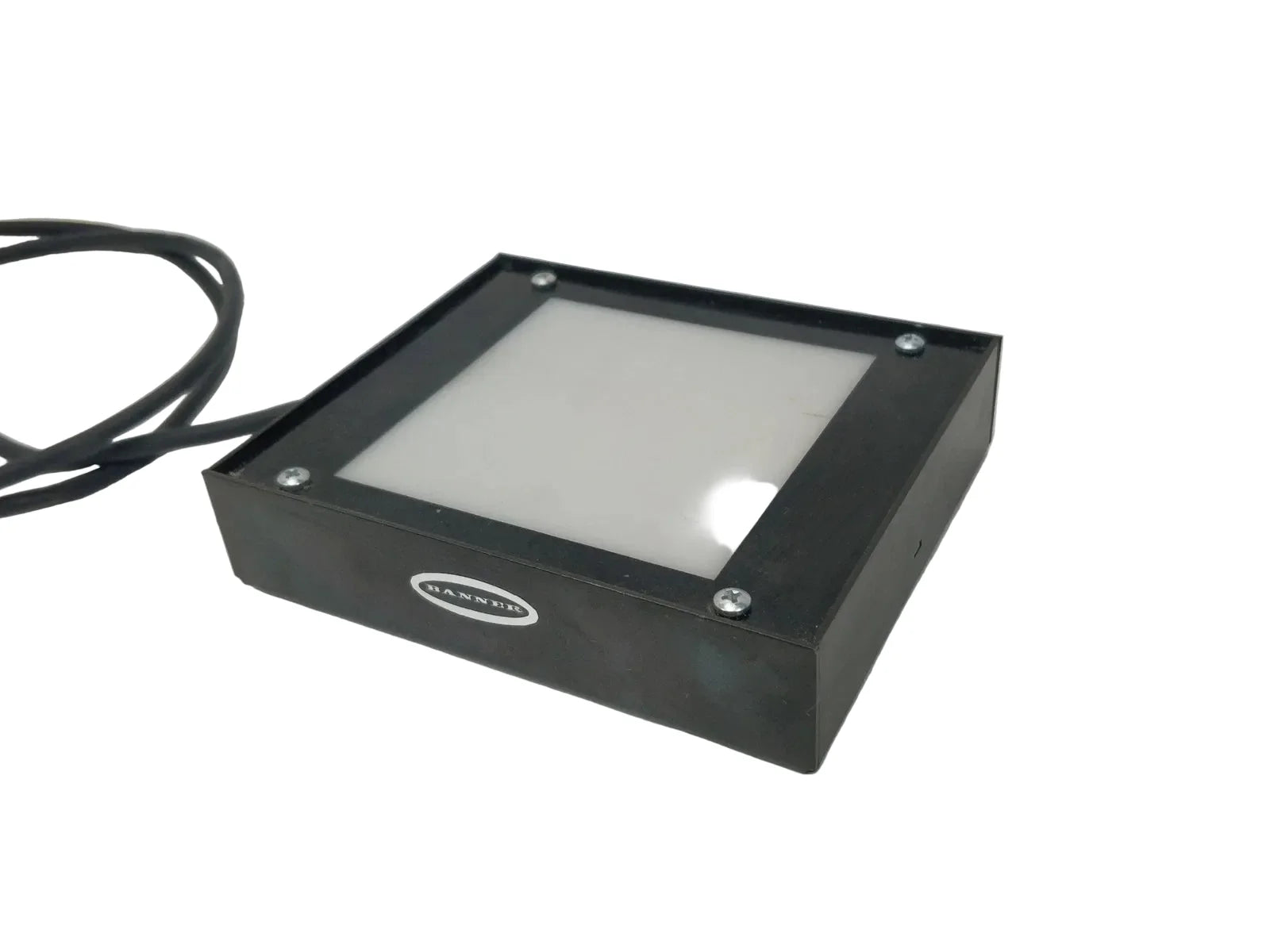

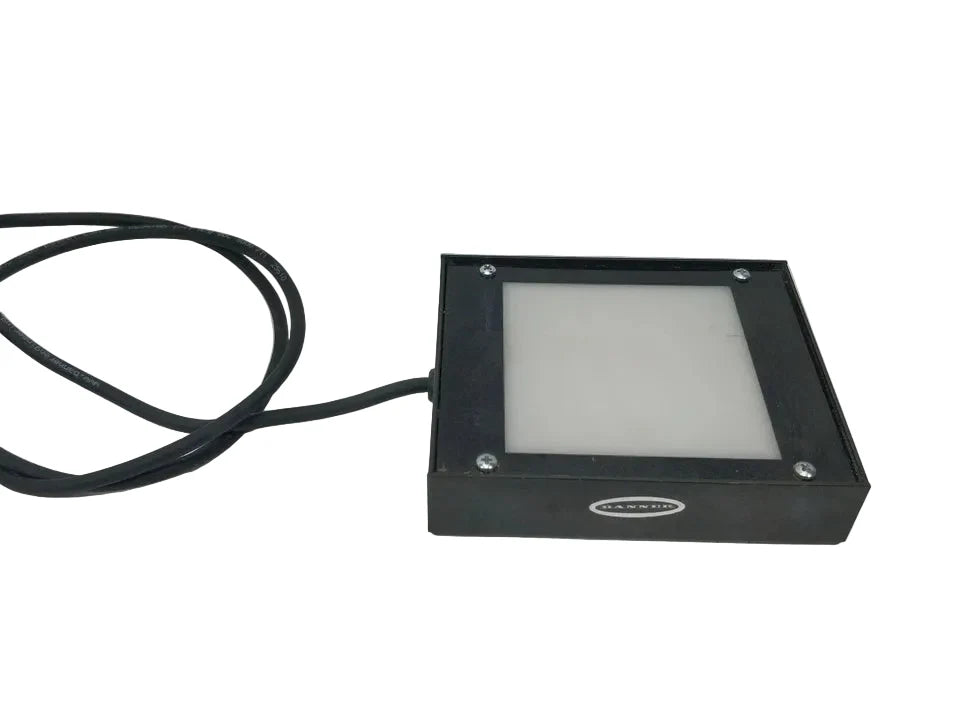

The Banner Engineering LEDRB70X70W is a machine vision LED backlight designed for precise object inspection and contrast enhancement. It provides uniform visible red illumination for vision-based detection systems. The unit operates on 24 VDC and is optimized for industrial imaging environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Camera & Vision |
| Part Number |
LEDRB70X70W |
| Subcategory |
Light Source |
| Product Type |
LED Backlight |
| Series |
PresencePLUS |
| Illumination Color |
Red |
| Peak Wavelength |
660 nm |
| Supply Voltage |
24 VDC |
| Current Rating |
250 mA |
| Active Area |
70 x 70 mm |
| Housing Material |
Low-carbon steel |
| Housing Style |
Rectangular |
| Connection Method |
Flying leads |
| Cable Length |
2 m |
| Ingress Protection |
IP40 |
| Operating Temperature Range |
0 to +50 °C |
| Weight |
0.77 lbs |
Information About LEDRB70X70W
The LEDRB70X70W is a PresencePLUS series LED backlight manufactured by Banner Engineering for machine vision applications. It features a diffused red LED light source housed in a rectangular low-carbon steel enclosure for durability. The backlight is designed to deliver stable and uniform illumination to improve edge detection and silhouette imaging. It integrates easily into vision systems using a built-in cable with flying leads for direct electrical connection.
Key Features:
-
Machine vision backlight: Designed for inspection and imaging applications
-
Visible red LED illumination: Enhances contrast and object definition
-
Uniform light distribution: Supports accurate silhouette and edge detection
-
Industrial steel housing: Provides mechanical strength and durability
-
Integrated power regulation: Maintains consistent illumination levels
-
Universal strobe compatibility: Suitable for use with vision systems
-
Long service life: Designed for extended LED operating hours
The LEDRB70X70W delivers the reliability and illumination consistency required for machine vision backlighting applications.
