Description

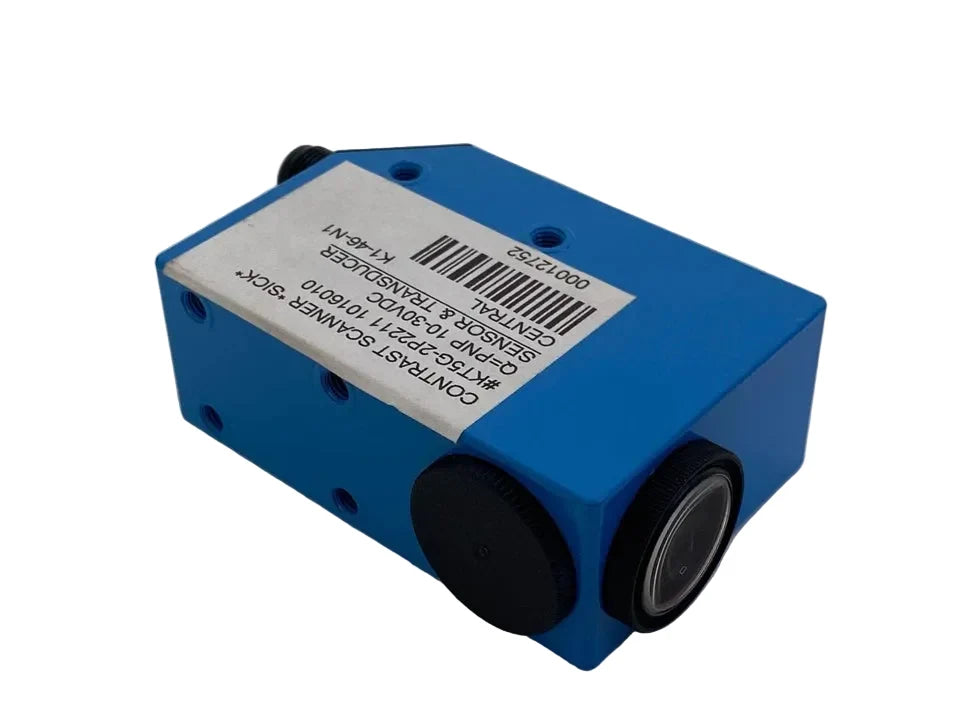

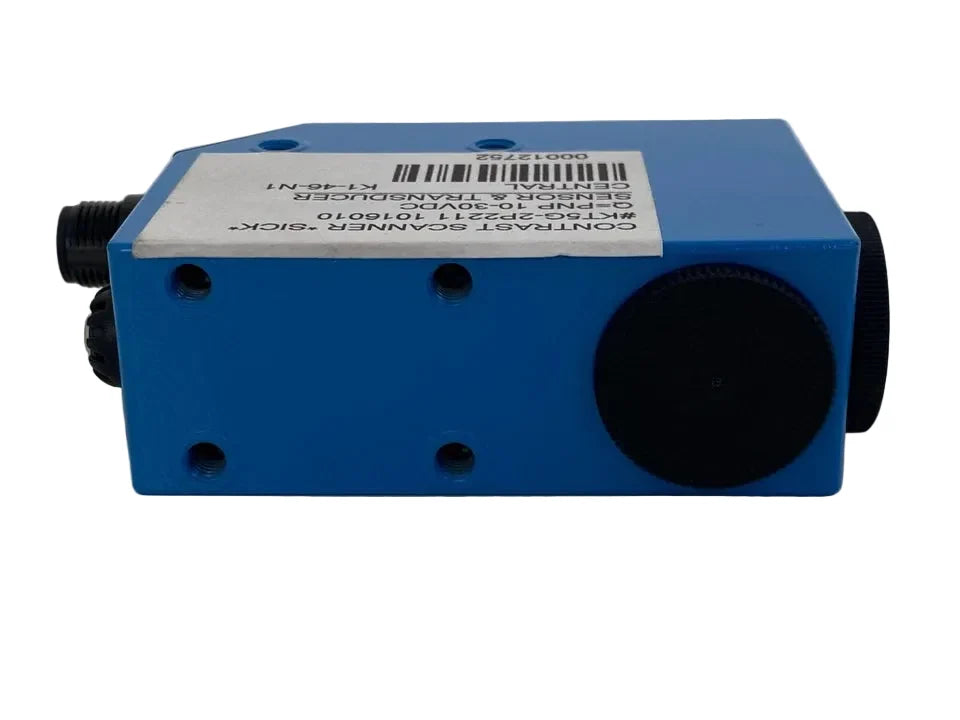

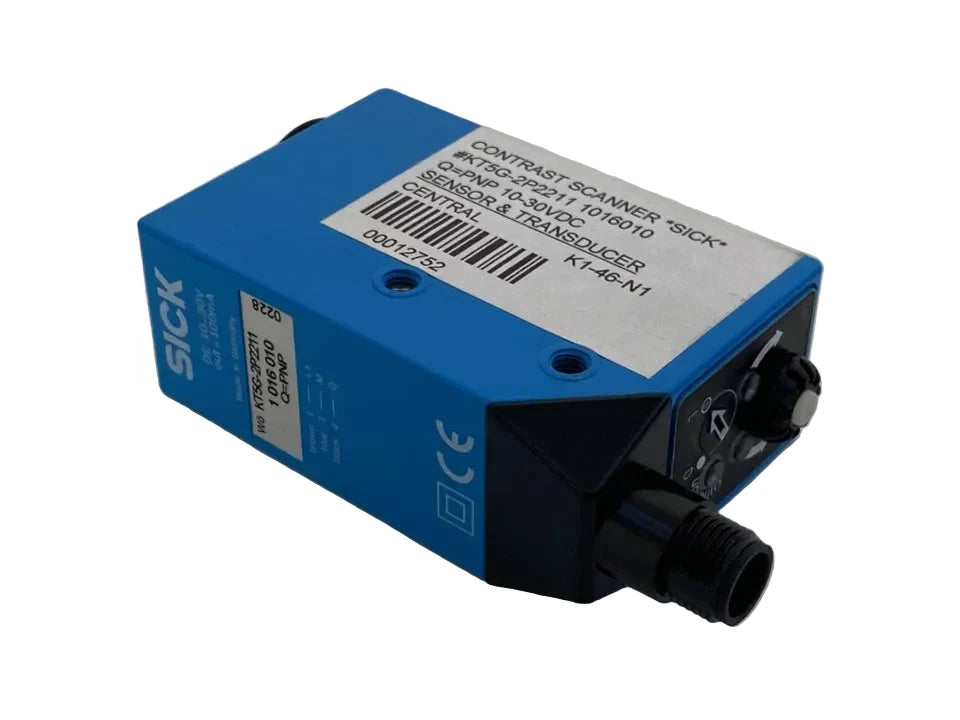

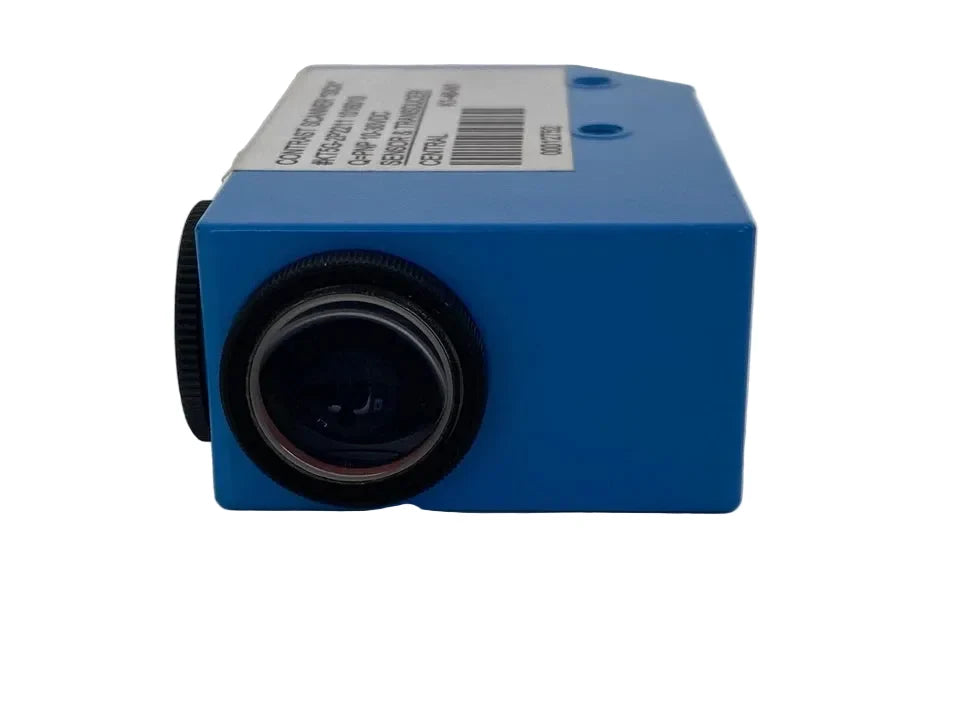

The SICK KT5G-2P2211 is a photoelectric contrast sensor designed for precise detection of contrast differences on surfaces in industrial automation systems. This sensor uses a green LED light source and a PNP switching output to deliver fast, accurate contrast recognition at a fixed sensing distance. It is engineered for reliable registration and mark detection in high-speed production environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Industrial Sensors |
| Part Number |
KT5G-2P2211 |
| Subcategory |
Contrast Sensors |
| Sensor Type |
Photoelectric Contrast Sensor |
| Series |
KT5 Series |
| Sensing Mode |
Color, Single Channel |
| Sensing Distance |
20 mm (from front edge of lens) |
| Light Source |
Green LED |
| Wavelength |
520 nm |
| Output Type |
PNP |
| Output Current |
100 mA (short-circuit protected) |
| Switching Frequency |
Up to 10 kHz |
| Supply Voltage |
10–30 VDC |
| Power Consumption |
80 mA |
| Adjustment Method |
Potentiometer (Perpendicular) |
| Connection Type |
M12 Connector |
| Connector Pins |
4-pin Male |
| Housing Material |
Zinc Die-Cast |
| Enclosure Rating |
IP67 |
| Body Style |
Rectangular |
| Weight |
0.88 lbs (400 g) |
Information About KT5G-2P2211
The KT5G-2P2211 is part of the SICK KT5 Series of contrast sensors, developed for detecting printed marks and subtle contrast variations with high repeatability. It operates with a fixed 20 mm sensing distance from the front edge of the lens and evaluates contrast using a single sensing channel. The sensor features a robust zinc die-cast housing and adjustable sensitivity via a perpendicular potentiometer. Designed for industrial use, it supports high switching frequencies and integrates easily using a standard M12 connector.
Key Features:
- Contrast Detection Technology: Accurately detects printed marks and contrast differences on materials.
- Green LED Light Source: Operates at 520 nm for optimized contrast recognition.
- Fixed 20 mm Sensing Distance: Ensures consistent and repeatable detection geometry.
- PNP Switching Output: Provides reliable signal compatibility with PLC and control systems.
- High Switching Frequency: Supports up to 10 kHz for high-speed automation processes.

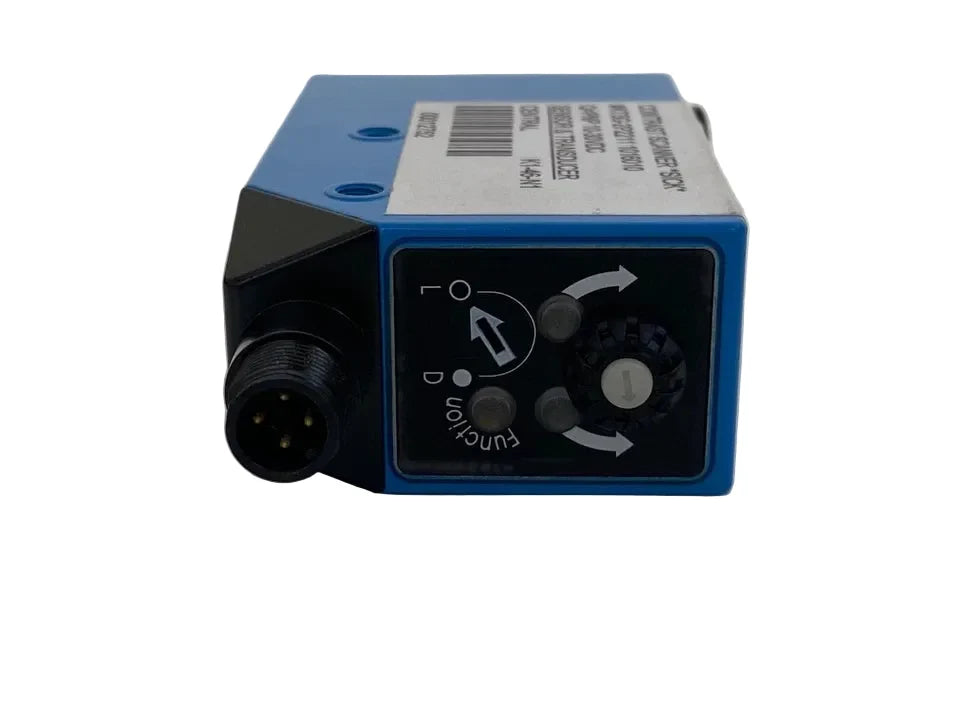

- Adjustable Sensitivity Control: Perpendicular potentiometer allows precise setup and tuning.
- Rugged Metal Housing: Zinc die-cast construction with IP67 protection for industrial environments.
The KT5G-2P2211 delivers the reliability and precision required for contrast-based detection in high-speed industrial automation and inspection applications.
