Description

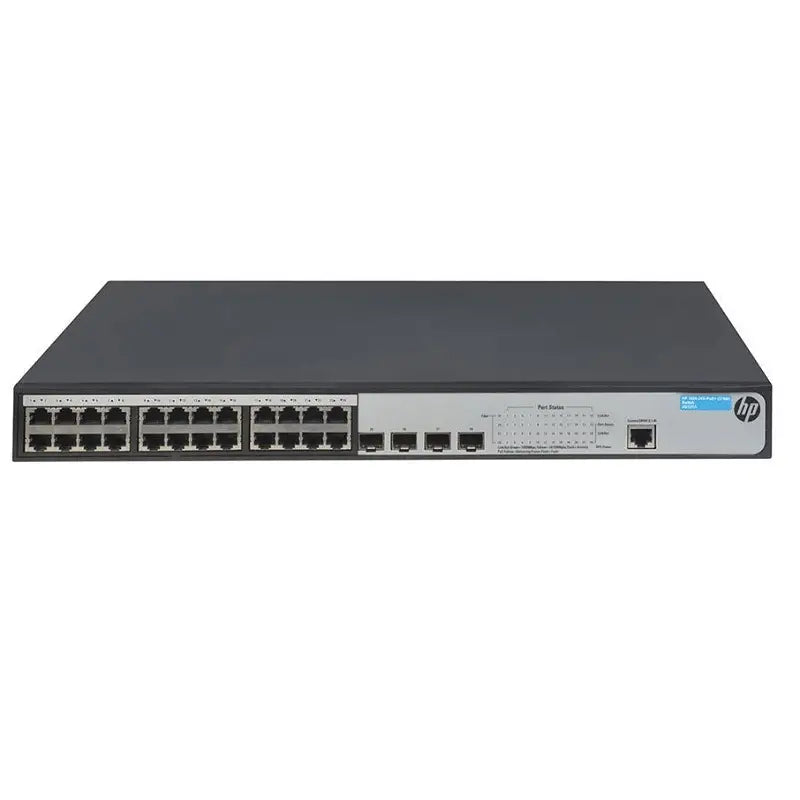

The HP JG926A is a 24-port Gigabit Ethernet PoE+ switch engineered for small to mid-size enterprise networks requiring high-performance switching with integrated power delivery. With a 370W PoE+ budget and support for Jumbo Frames, it provides efficient Layer 2 switching and seamless connectivity for powered network devices such as IP phones, access points, and security cameras.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
HP Networking
|
|
Category
|
Computers/Tablets & Networking
|
|
Part Number
|
JG926A
|
| Subcatecory |
|
| Ports |
24 x 10/100/1000 RJ-45 (PoE+) |
| PoE Support |
Yes (IEEE 802.3at) |
| Max PoE Budget |
370W |
| Switching Capacity |
56 Gbps |
| Throughput |
41.7 Mpps |
| MAC Address Table |
8192 entries |
| Jumbo Frame Support |
Up to 10KB |
| Processor |
500 MHz MIPS |
| RAM / Flash |
128 MB SDRAM / 32 MB Flash |
| Dimensions (W x D x H) |
17.3 x 10.2 x 1.7 in (1U) |
| Power Consumption |
474W (operational) |
Information About JG926A
The JG926A is part of HP’s advanced managed switch portfolio, offering 24 x 10/100/1000 Mbps RJ-45 ports with IEEE 802.3at PoE+ support. With up to 30W of power per port and a total PoE power budget of 370W, it supports full-scale deployment of PoE-enabled devices. Designed for high performance and reliability, it features a switching capacity of 56 Gbps, throughput of 41.7 Mpps, and supports jumbo frames up to 10KB for optimized data transfers.
Key Features:
-
24 x Gigabit Ethernet PoE+ Ports: Delivers both data and power to connected devices over Ethernet.
-
370W PoE Budget: Supports full or partial power delivery for up to 24 PoE+ devices.
-
56 Gbps Switching Capacity: Enables smooth packet forwarding and minimal latency.
-
Jumbo Frame Support (10KB): Enhances performance for data-intensive applications.
-
Efficient Architecture: Powered by 500 MHz MIPS processor with 128 MB RAM.
-
Compact & Rack-Mountable: Standard 1U design fits easily into network racks.
The HP JG926A combines power, performance, and simplicity for growing wired networks with PoE+ device requirements.
