Description

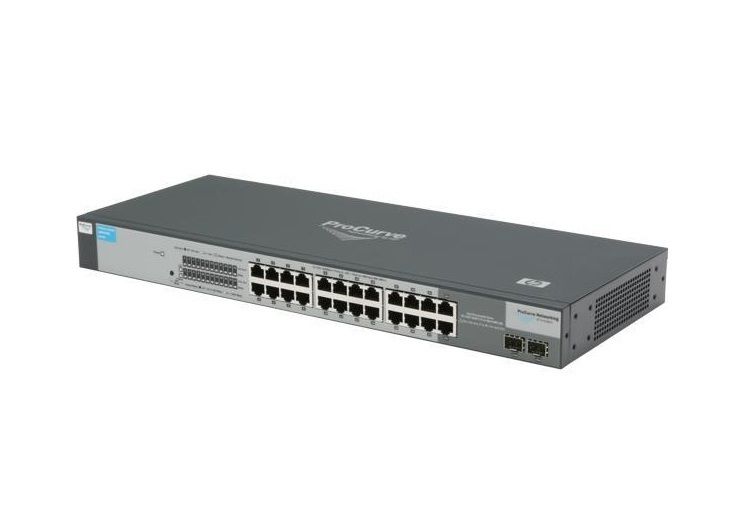

The J9028A is a managed Ethernet switch from HP’s ProCurve 1800 Series, offering 24 Gigabit ports for high-speed network connectivity. Designed for small business and branch office environments, it supports web-based management, VLANs, and Quality of Service (QoS) features in a compact, rack-mountable form factor.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
HP Networking |
| Category |
|
| Part Number |
J9028A |
| Subcategory |
|
| Total Number of Network Ports |
22 |
| Port/Expansion Slot Details |
22 x Gigabit Ethernet Network
2 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion Slot |
| Media Type Supported |
Twisted Pair
|
| Ethernet Technology |
Gigabit Ethernet |
| Network Technology |
|
| Number of Total Expansion Slots |
2 |
| Expansion Slot Type |
SFP |
| Number of SFP Slots |
2 |
| Layer Supported |
2 |
| Manageable |
Yes |
| Height |
1.7" |
| Width |
17.4" |
| Depth |
6.7" |
| Weight |
4.32 lbs |
Information About J9028A
The J9028A is a compact managed Ethernet switch from HP’s ProCurve 1800 Series, designed to deliver reliable Gigabit connectivity and basic network management for small business and branch office environments. Featuring 24 auto-sensing Gigabit ports, it offers plug-and-play simplicity with a web-based interface for essential Layer 2 features such as VLANs and Quality of Service (QoS). Its fanless, rack-mountable design makes it ideal for quiet workspaces, delivering dependable performance without the complexity of enterprise-level switching.
Key Features:
-
Compatibility: HP ProCurve 1800 Series networking environments
-
Port Configuration: 24 × 10/100/1000Base-T auto-sensing Gigabit Ethernet ports
-
Switching Type: Smart-managed Layer 2 Ethernet switch
-
Switching Capacity: 48 Gbps
-
Forwarding Rate: Up to 35.7 Mpps
-
Management Interface: Web-based GUI (no CLI or SNMP)
-
Security Features: Password protection, port mirroring, broadcast control
-
VLAN Support: Supports up to 64 VLANs
-
QoS Support: 802.1p traffic prioritization with 4 queues per port
-
Mounting Options: Rack-mountable (1U) or desktop installation
-
Cooling: Fanless design for silent operation
-
Dimensions: 26.6 x 16.2 x 4.4 cm (10.5 x 6.4 x 1.7 in)
-
Weight: Approximately 1.36 kg (3.0 lbs)
-
Power Supply: Internal
-
Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, FCC, CE, UL, VCCI, RoHS
This switch is ideal for small business owners and IT professionals who need a cost-effective, quiet, and easy-to-manage network switch with reliable Gigabit performance and essential management features.
