Description

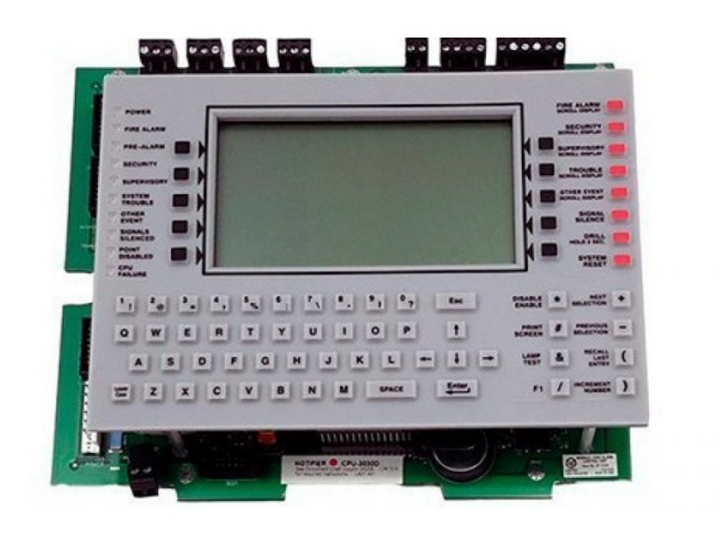

The Johnson Controls JCPU2-3030D is a CPU module engineered for use within the IFC2-3030 Intelligent Fire Alarm Control Panel. It provides high-capacity device support, advanced networking, and reliable control for medium- to large-scale fire safety systems. Designed for precision and scalability, this module ensures dependable system performance in critical applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Johnson Controls |
| Category |
Fire Alarm Systems |
| Part Number |
JCPU2-3030D |
| Subcategory |
Control Panel CPU Module |
| Series |
IFC2-3030 |
| Type |
Addressable Control Panel CPU |
| Display |
640-character LCD (16 lines × 40 characters) |
| SLC Support |
1 expandable to 10 |
| Device Capacity |
Up to 3,180 addressable devices |
| Detector Support |
159 detectors per loop |
| Module Support |
159 modules per loop |
| Event History |
4,000 events + 1,000 alarm-only file |
| Networking |
NOTI-FIRE-NET / High-Speed NOTI-FIRE-NET |
| Relays |
Alarm, Trouble, Security, Supervisory |
| Programming |
VeriFire® Tools with flash memory storage |
| Compliance |
UL 864, 9th Edition |
| Power Supply Output |
4.5A |
| Connectivity |
EIA-232 printer, EIA-485 annunciator ports |
| Weight |
16 lbs |
Information About JCPU2-3030D
The JCPU2-3030D is part of the IFC2-3030 series, a modular platform developed for addressable fire alarm and evacuation management. Built with flash-memory application code storage, it enables easy updates without hardware changes. The module is fully compatible with a wide range of detectors, modules, annunciators, and networking options. Designed for commercial and industrial facilities, it supports complex system integration and advanced fire safety operations.
Key Features
- Scalable Capacity: Supports up to 10 Signaling Line Circuits (SLCs), accommodating up to 3,180 devices.
- Intelligent Addressability: Allows 159 detectors and 159 modules per SLC for flexible system design.
- Large LCD Display: Provides a 640-character backlit display with detailed event and system status information.
- Integrated Networking: Compatible with NOTI-FIRE-NET and High-Speed NOTI-FIRE-NET for up to 200 network nodes.
- Advanced Event History: Stores 4,000 system events plus 1,000 alarm-only events with filtering by time, date, or address.
- Built-In Relays: Includes alarm, trouble, supervisory, and security relays for essential signaling functions.
- Degraded Mode Operation: Maintains general alarm capability in the event of CPU failure.
- Flexible Integration: Supports annunciators, smoke control systems, and Digital Voice Command for voice evacuation.
The JCPU2-3030D delivers the reliability and precision required for intelligent fire alarm control in large-scale safety systems.
