Description

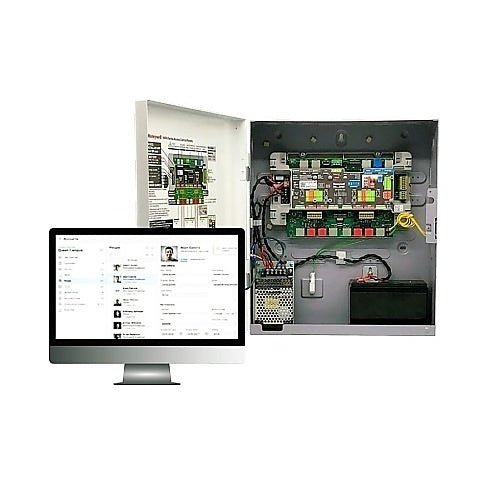

The Honeywell MPA2MPSU is a two-door access control panel with an integrated power supply, designed for seamless integration with MAXPRO Cloud or WIN-PAK software. It supports both traditional power and Power over Ethernet (PoE+) connectivity, offering flexible installation options for enterprise and multi-site systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
MPA2MPSU |
| Subcategory |
Access Control Panels |
| Product Family |
MAXPRO Access MPA2 Series |
| Supported Doors |
2 |
| Power Supply |
Integrated PSU or PoE+ (Power over Ethernet) |
| Power Input (AC) |
Hardware socket with IEC AC input |
| Connectivity |
RJ45 ‘Click & Done’, Ethernet |
| Reader Protocol |
OSDP V2, AES 128-bit encrypted bidirectional |
| Host Communication Security |
AES 256-bit with TLS 1.2 |
| Management Software |
MAXPRO Cloud, WIN-PAK, or browser-based interface |
| Pre-installed Modules |
(2) MPA2RJ, (2) MPA2S5, (1) MPA2BAT7 |
| Installation Type |
Metal enclosure, wall-mounted |
| Enclosure Type |
Preassembled with PSU and components |
| Country of Origin |
United States |
| Compatibility |
Backward compatible with NetAXS systems |
| Weight |
Varies by configuration (~7–9 lbs typical) |
Information About MPA2MPSU
The MPA2MPSU is part of the Honeywell MAXPRO Access MPA2 series, engineered to simplify deployment of access control systems in commercial environments. This controller supports secure, browser-based configuration without the need for dedicated PC software and can be managed remotely via MAXPRO Cloud or WIN-PAK platforms. It features encrypted communications (AES 256-bit for host-panel and AES 128-bit for OSDP reader-panel), ensuring enterprise-level security. With an installer-friendly design that includes RJ45 ‘Click & Done’ ports and IEC socket for AC input, the unit reduces setup time and supports future scalability.
Key Features:
- Dual Power Support: Operates via standard PSU or PoE+ for flexible installations.
- Cloud-Ready Interface: Compatible with MAXPRO Cloud for secure remote management across multiple sites.
- On-Premise Integration: Supports Honeywell WIN-PAK software for local access control management.
- Secure Communications: AES 256-bit encrypted host-panel and 128-bit OSDP reader-panel communication.
- Installer-Friendly Design: Push-in connectors, ‘Click & Done’ RJ45 ports, and preassembled enclosure reduce install time.
- Reader Support: Built-in OSDP reader manager with bidirectional encrypted communication.
- Expansion Ready: Fully compatible with existing NetAXS installations, allowing for cost-effective upgrades.
- Complete Kit Included: Ships with (2) MPA2RJ, (2) MPA2S5, (1) MPA2BAT7 modules pre-installed.
The MPA2MPSU delivers modern, secure, and scalable access control functionality with easy deployment across commercial environments.
