Description

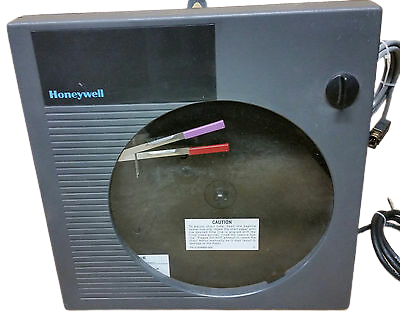

The DR4302-0000-G0100-0000-0000-00-000-00 is a two-pen circular chart recorder that provides reliable analog trace recording on a 10-inch chart. It features a microprocessor-controlled stepper-motor drive and supports a variety of input signals for industrial process monitoring applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DR4302-0000-G0100-0000-0000-00-000-00 |
| Subcategory |
Chart Recorder |
| Product Type |
Circular Chart Recorder |
| Series |
Honeywell DR4300 |
| Pen Count |
2 (dual pen) |
| Chart Diameter |
10 inches (250 mm) |
| Input Signals |
T/C, RTD, mA, mV, VDC |
| Chart Speed Options |
Configurable via DIP switches |
| Accuracy |
±0.35% span (basic) / ±0.10% (display version) |
| Drive Type |
Stepper motor |
| Diagnostics |
Self-test on power-up |
| Modular Features |
Optional relays, timers, totalizers, Modbus comms |
| Enclosure Rating |
NEMA 3 (standard), NEMA 4 (optional) |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Typical Power Draw |
~28 VA |
| Operating Environment |
32–131°F, 5–90% RH (non-condensing) |
| Mounting |
Panel or wall using mounting kit |
| Product Status |
Discontinued legacy recorder |
| Weight |
9.5 lbs |
Information About DR4302-0000-G0100-0000-0000-00-000-00
The DR4302-0000-G0100-0000-0000-00-000-00 is part of Honeywell’s DR4300 series of circular chart recorders, offering cost-effective, analog-style data logging with digital precision. This dual-pen model creates independent process trace outputs using stepper-motor-driven pens and charts. It accepts universal input signals - such as thermocouples, RTDs, volts, millivolts, and milliamps - and allows configurable chart speed and range. Designed for field adaptability, the recorder uses DIP switches for setup and provides a self-test feature at power-up. With its rugged NEMA-rated enclosure and modular construction, it is well-suited for industrial settings requiring maintainability and reliability.
Key Features:
- Dual-Pen Analog Recording: Two independent stepper-driven pens trace separate process variables.
- Universal Signal Input: Supports thermocouples (J, K, T, R, S), RTDs, 0–20 mA, 4–20 mA, 0–10 VDC, and low‑level mV signals.
- Configurable Chart Options: Adjust chart speed and range with DIP switches to suit recording needs.
- Microprocessor Control: Enables accurate, stable tracing with digital precision in analog format.
- Self-Test Diagnostics: Automatic power-up diagnostics verify pen and circuit function.
- Modular & Field-Serviceable: Built for easy maintenance and component replacement.
- Rugged Design: Enclosure rated NEMA 3 or 4, suitable for industrial environments.
- Optional Expansion: Offers display/keypad models, relay/alarm outputs, Modbus comms, timers, and totalizers.
- Accurate & Reliable: ±0.35% accuracy (basic model) with optional digital display version offering ±0.10%.
- Economic & Effective: Balances analog simplicity with digital capability, ideal for 10″ chart applications.
The DR4302-0000-G0100-0000-0000-00-000-00 delivers dependable dual-pen recording with flexible inputs and field adjustability, making it a durable and cost-effective real-time recorder for industrial processes.
