Description

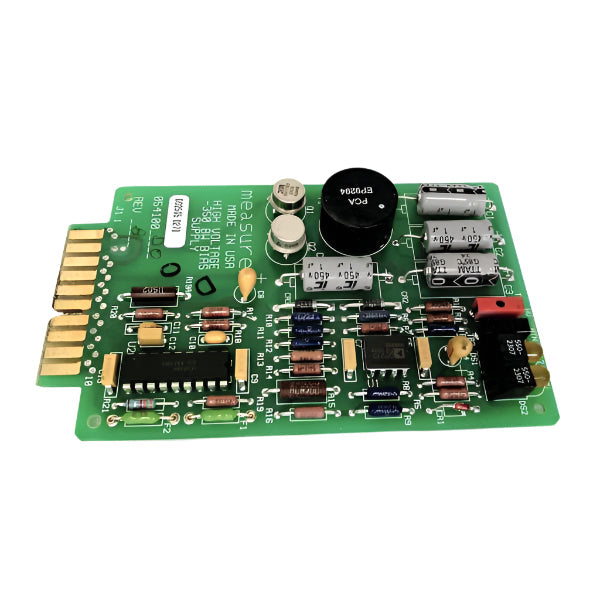

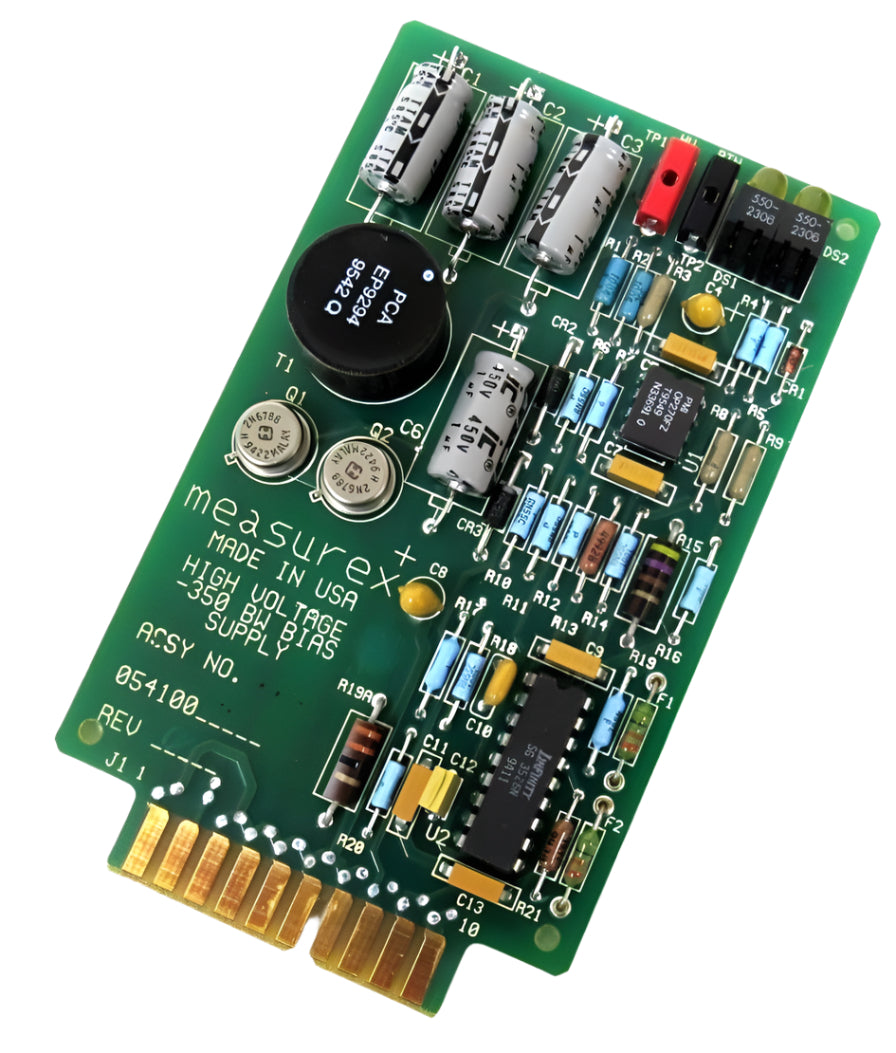

The Honeywell 05410000 is a high-voltage power supply board designed for use within Measurex systems, providing stable –350V bias output and onboard LED indication for status monitoring. It supports critical control circuitry where high-voltage precision and reliability are essential.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
05410000 |
| Subcategory |
PC Board PLC/Add-On Board |
| Output Voltage |
–350 V DC (Bias) |
| Application |
Measurex Systems / Process Control
|
Status Indication
|
Integrated LED Indicator |
| Mounting Type |
PCB-mounted / internal installation |
| Compatibility |
Honeywell Measurex platforms |
| Weight |
1.00 lbs |
Information About 05410000
Designed specifically for Honeywell Measurex process control environments, the 05410000 power supply board delivers a –350V DC bias used in precision measurement and feedback circuits. This module includes onboard LED indicators for at-a-glance monitoring of output or operational status, aiding diagnostics and maintenance. Engineered for high-voltage operation, the unit ensures stability and long-term performance in demanding automation and industrial instrumentation systems.
Key Features:
- –350V High Voltage Output: Provides stable negative bias voltage for sensitive control or sensor circuitry.
- Designed for Measurex Systems: Fully compatible with legacy Measurex process control equipment.
- LED Status Indicator: Built-in LED display provides immediate visual confirmation of board operation.
- Compact Board Format: Suitable for installation within equipment racks or dedicated chassis.
- Reliable DC Bias Supply: Ensures consistent voltage delivery for high-performance industrial electronics.
- Industrial-Grade Build: Manufactured to meet Honeywell’s quality standards for long-term service life.
- Field Serviceable: Component layout and LED feedback simplify diagnostics and replacement.
- Critical Voltage Regulation: Supports applications requiring clean and isolated bias power.
The 05410000 board ensures clean, consistent high-voltage DC output with built-in monitoring, supporting Honeywell Measurex system reliability.
