Description

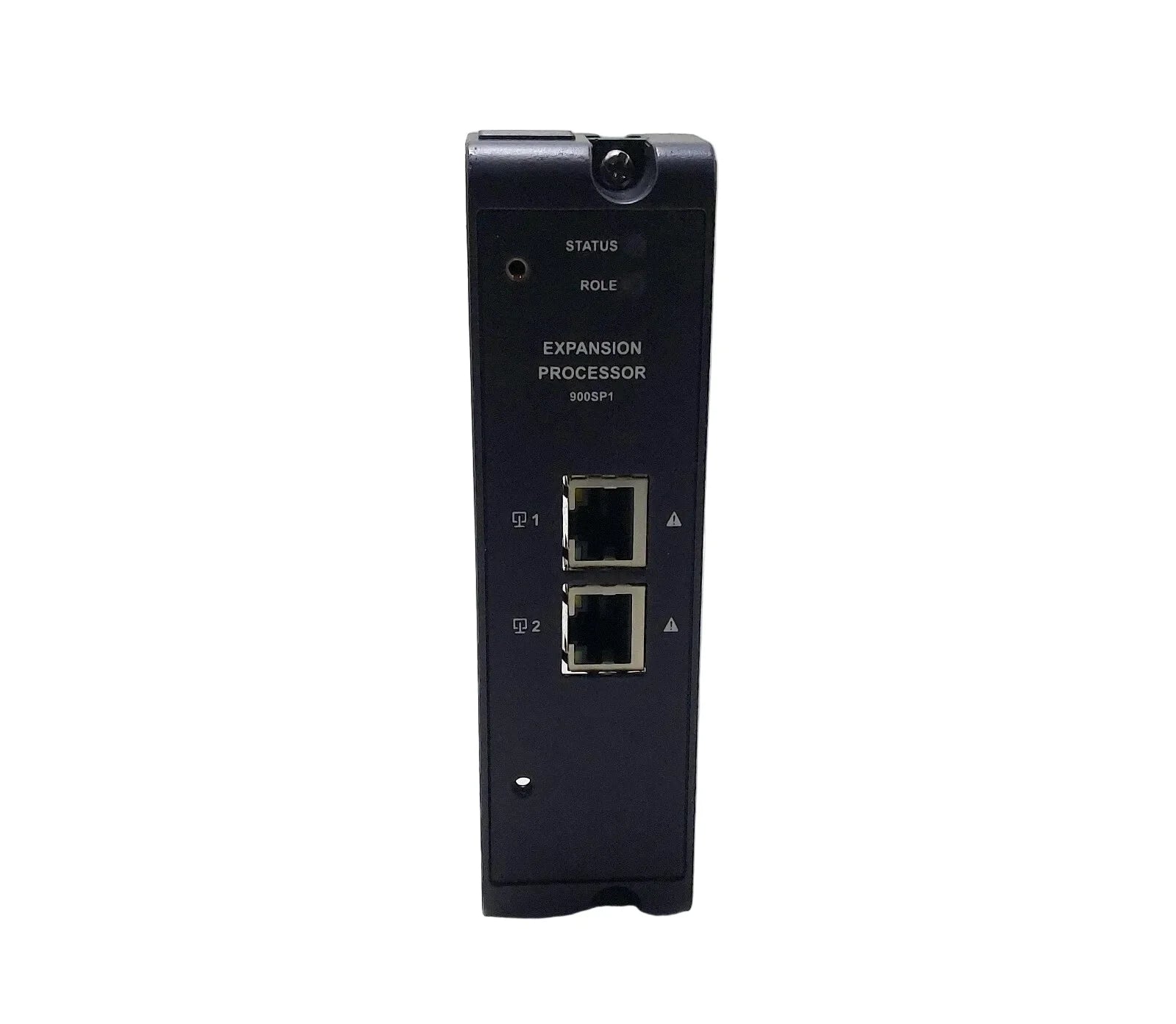

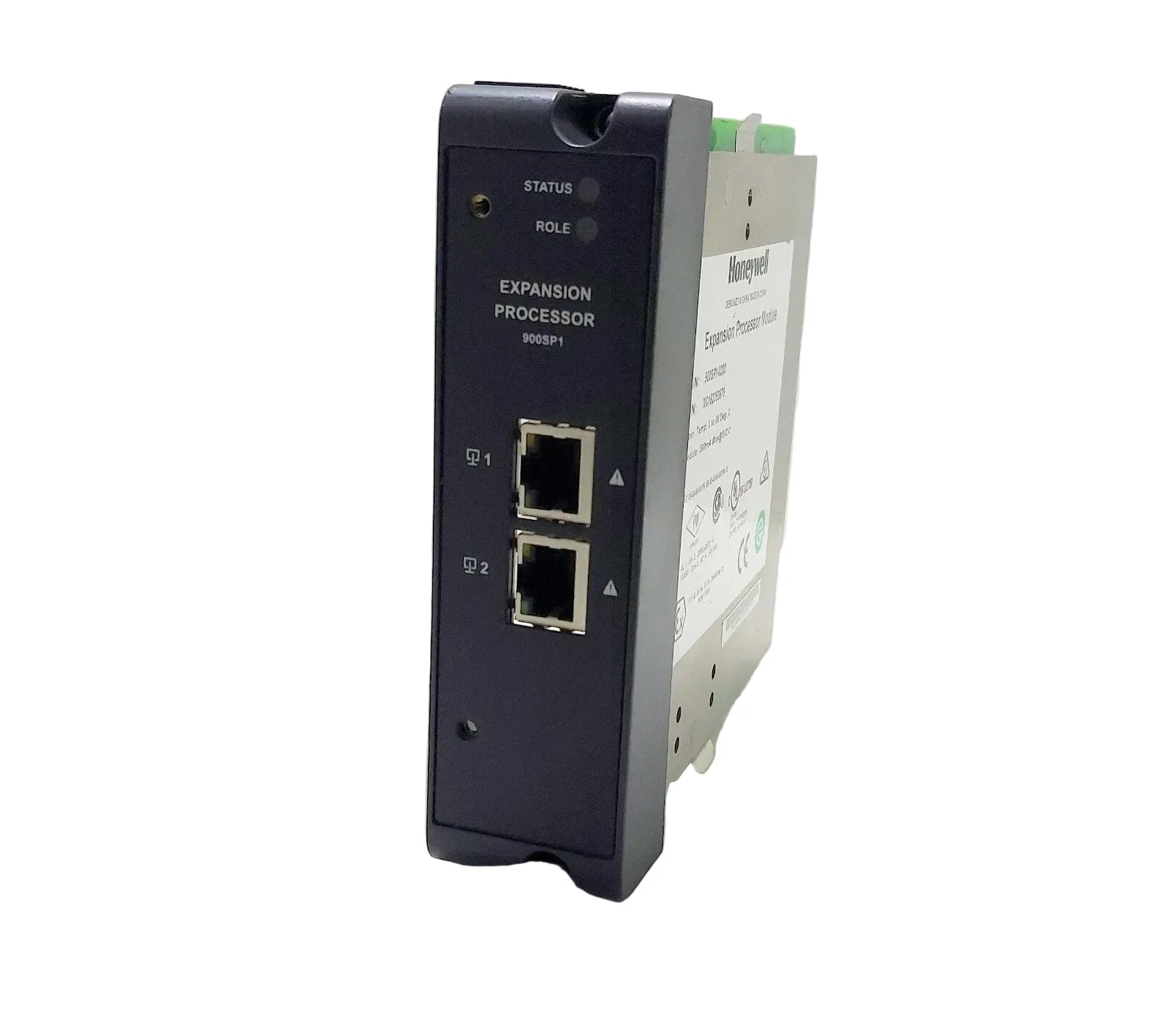

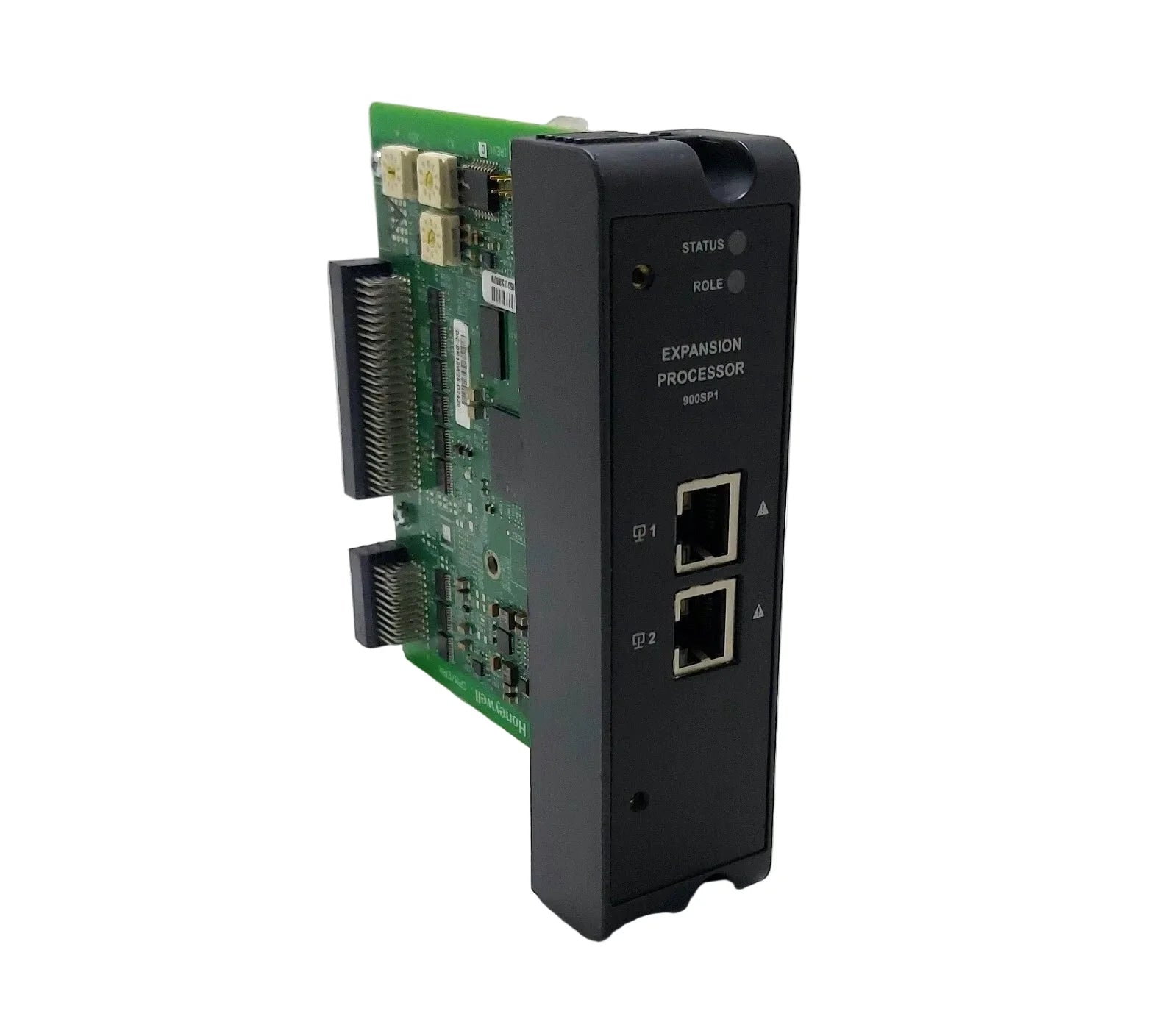

The Honeywell 900SP1-0200 is a ControlEdge PLC expansion processor module designed to extend processing and communication capabilities within distributed control architectures. It supports high-speed data handling and Ethernet-based connectivity for scalable industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Industrial Automation Controllers |
| Part Number |
900SP1-0200 |
| Subcategory |
PLC Expansion Processor Modules |
| Product Type |
Expansion Processor Module (EPM) |
| Controller Platform |
Honeywell ControlEdge PLC / UOC |
| Processor |
Dual-core ARM® Cortex™-A9, 667 MHz |
| Communication Ports |
2 × RJ45 Ethernet (auto-crossover) |
| Network Speed |
10/100BaseTx, auto-detect |
| Address Configuration |
Rotary switch (1–99) |
| Diagnostics |
LED indicators per port |
| Isolation Rating |
1500 V RMS for 1 minute (60 Hz) |
| Transient Protection |
600 W peak pulse, 10×1000 µs waveform |
| Operating Temperature |
0°C to 60°C |
| Power Requirement |
5 VDC, 500 mA max |
| Dimensions |
137 × 38.1 × 151.7 mm |
| Weight |
Approx. 0.32 kg |
Information About 900SP1-0200
The 900SP1-0200 is a Honeywell ControlEdge series expansion processor module designed to support scalable and distributed control system architectures. It functions as a communication and processing interface between remote I/O expansion racks and the main controller, enabling deterministic data transfer across Ethernet networks. The module is built to integrate directly into ControlEdge PLC, UOC, and HC900-based systems without requiring additional interface hardware. Its electrical isolation, transient protection, and industrial-grade design support reliable long-term operation in electrically noisy control cabinet environments.
Key Features
- Distributed I/O connectivity: Enables seamless linking of remote expansion racks to the central controller, supporting scalable system architectures without increasing controller load.
- Dual-core processing architecture: Utilizes a 667 MHz ARM® Cortex™-A9 processor to handle high-speed data exchange, protocol processing, and internal diagnostics efficiently.
- Redundant Ethernet communication: Equipped with two RJ45 Ethernet ports supporting auto-crossover functionality to simplify network wiring and improve installation flexibility.
- Industrial network performance: Supports 10/100BaseTx auto-detection to ensure reliable communication across standard industrial Ethernet infrastructures.
- High electrical isolation: Provides 1500 V RMS isolation to protect connected equipment from electrical noise, ground loops, and transient disturbances.
- Advanced transient protection: Designed to withstand 600 W peak surge pulses, enhancing resilience against voltage spikes in harsh industrial environments.
- Configurable addressing: Features a rotary switch allowing quick and accurate rack address assignment for simplified system commissioning and maintenance.
- Integrated diagnostics: LED indicators on each communication port provide immediate visual feedback for network status and fault identification.
The 900SP1-0200 delivers the reliability and precision required for expanding distributed processing, communication, and system scalability in Honeywell ControlEdge industrial control platforms.
