Description

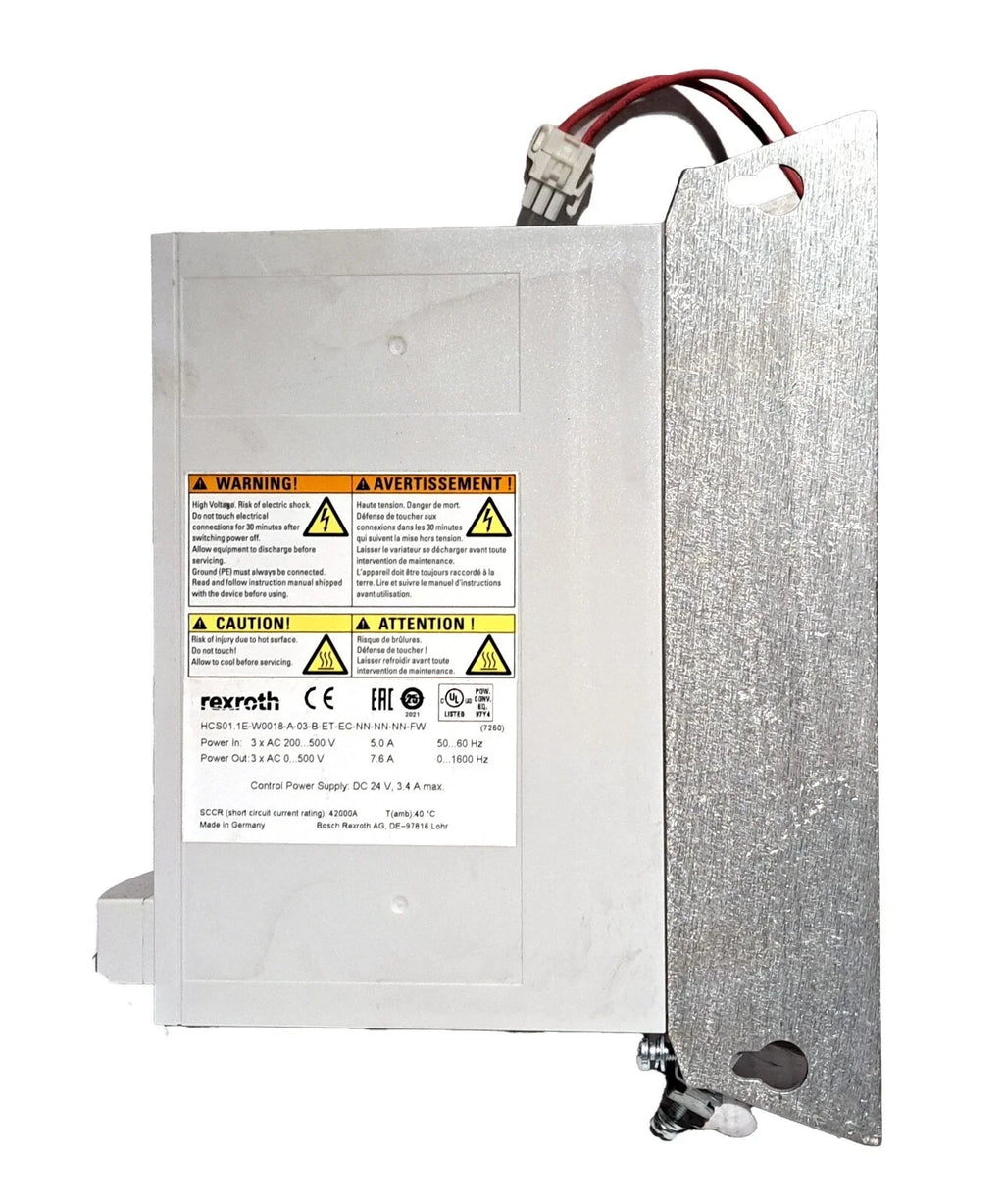

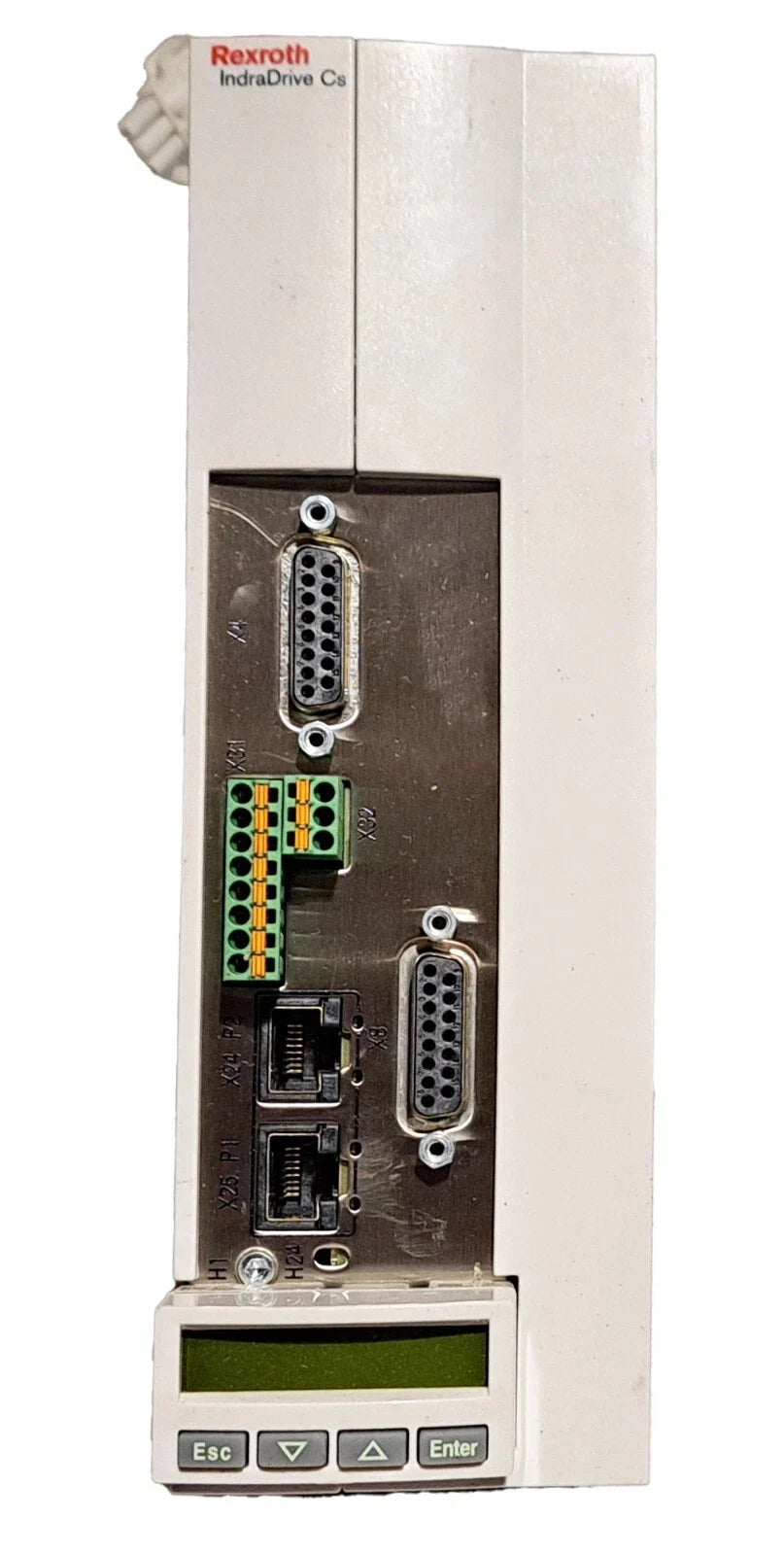

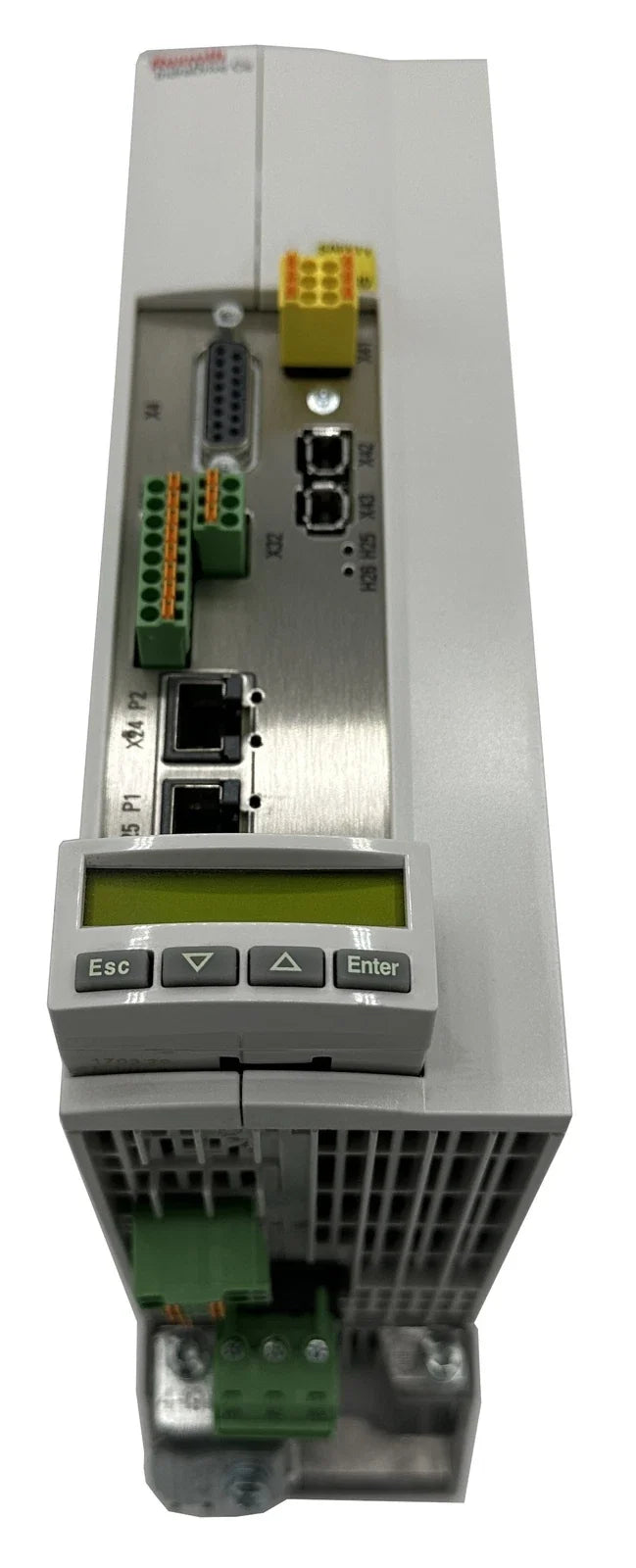

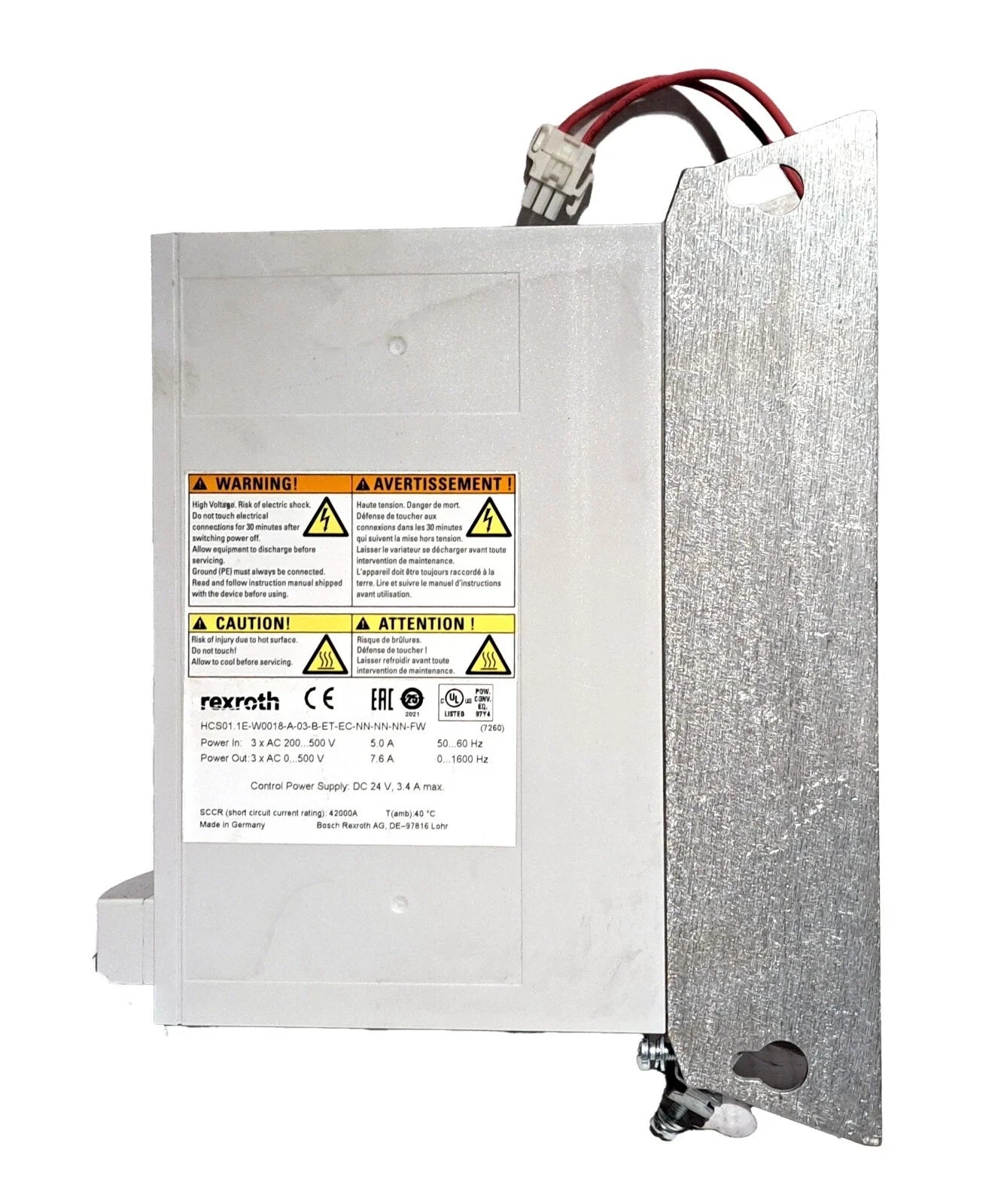

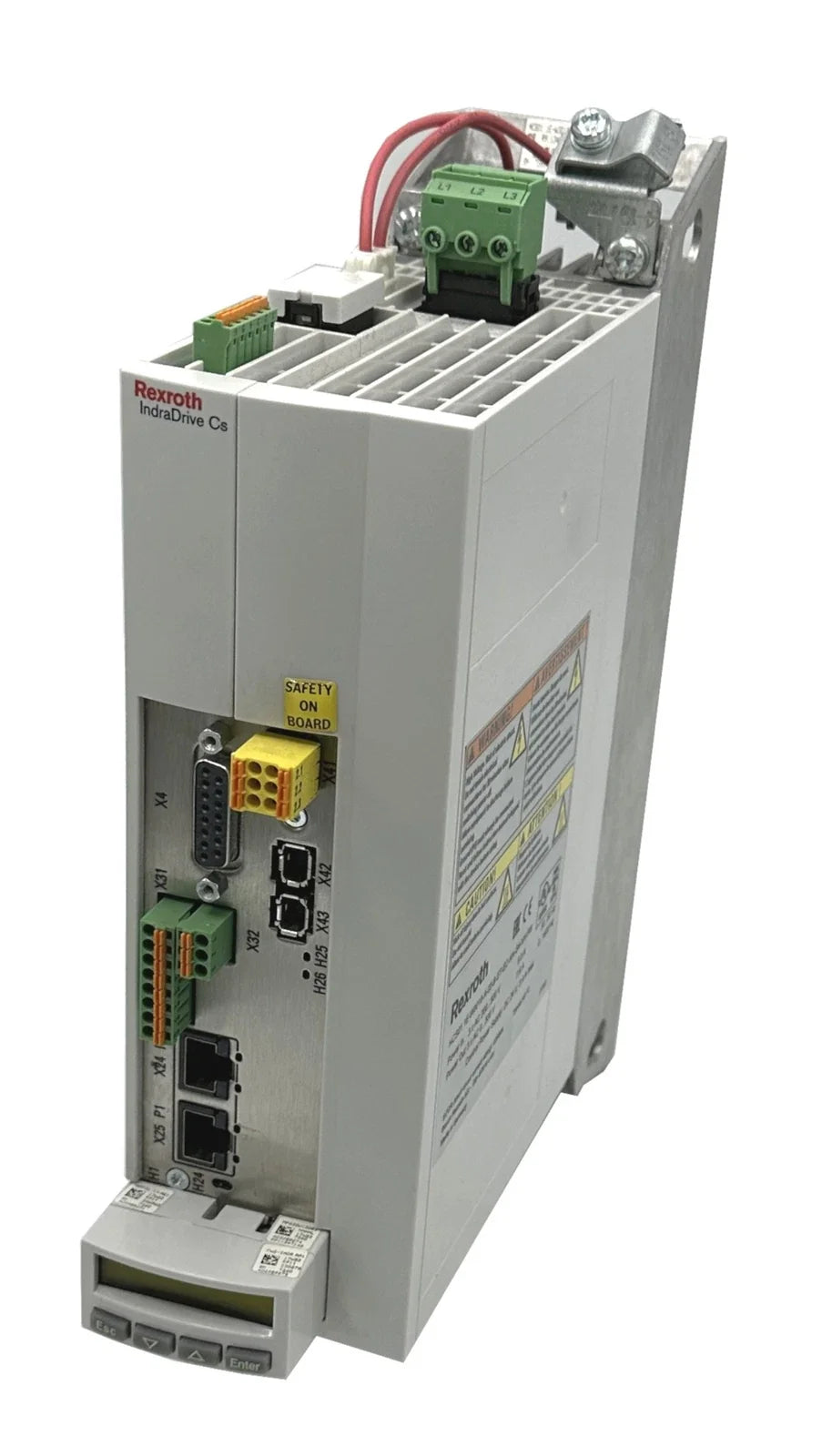

The Bosch Rexroth HCS01.1E-W0018-A-03-B-ET-EC-NN-NN-NN-FW servo drive is a compact IndraDrive CS controller designed for precise control of three-phase servo motors in industrial automation systems. It supports up to 18 A peak current and operates on a wide 200–500 VAC input range for flexible deployment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Bosch Rexroth |
| Category |
Industrial Automation |
| Part Number |
HCS01.1E-W0018-A-03-B-ET-EC-NN-NN-NN-FW |
| Subcategory |
Servo Drives |
| Product Type |
HCS Drive Controller |
| Drive Platform |
IndraDrive CS |
| Series |
HCS01 |
| Control Section Design |
BASIC (B) |
| Communication Interface |
MultiEthernet |
| Mains Voltage |
3 × AC 200–500 V ±10% |
| Input Frequency |
50/60 Hz |
| Device Peak Current |
18 A |
| Output Voltage |
3-Phase, 0–500 V |
| Encoder Interface |
Hiperface / EnDat 2.1 / 2.2 |
| Power Supply Unit |
Infeeding / Feeded |
| Cooling Method |
Air Cooling, Internal Blower |
| IP Rating |
IP20 |
| Design Version |
1 |
| Firmware |
Ordered Separately |
| Weight |
4 lb |
Information About HCS01.1E-W0018-A-03-B-ET-EC-NN-NN-NN-FW
The HCS01.1E-W0018-A-03-B-ET-EC-NN-NN-NN-FW is part of the Bosch Rexroth IndraDrive CS HCS01 series, developed for modular and scalable drive solutions. It is designed to be paired with a BASIC (Design B) control section and integrates seamlessly into Rexroth motion architectures. The drive supports advanced encoder technologies, including IndraDyn Hiperface and EnDat 2.1/2.2, enabling accurate closed-loop motor control. Internal air cooling via an integrated blower ensures stable operation in protected IP20 control cabinet environments.
Key Features:
- IndraDrive CS HCS01 Platform: Designed for compact and modular servo drive applications.
- MultiEthernet Communication Interface: Enables flexible integration with industrial Ethernet networks.
- Three-Phase Wide-Range Input: Operates on 3 × AC 200–500 V ±10% for global compatibility.
- 18 A Peak Current Capability: Supports dynamic servo motor operation and rapid load changes.
- Integrated Encoder Interfaces: Compatible with Hiperface and EnDat 2.1/2.2 feedback systems.
- Internal Air Cooling: Built-in blower provides effective thermal management during operation.
- DC Bus Connectivity: Supports shared DC bus configurations within IndraDrive systems.
The HCS01.1E-W0018-A-03-B-ET-EC-NN-NN-NN-FW delivers the reliability and precision required for compact servo drive control in industrial automation and motion control systems.
