Description

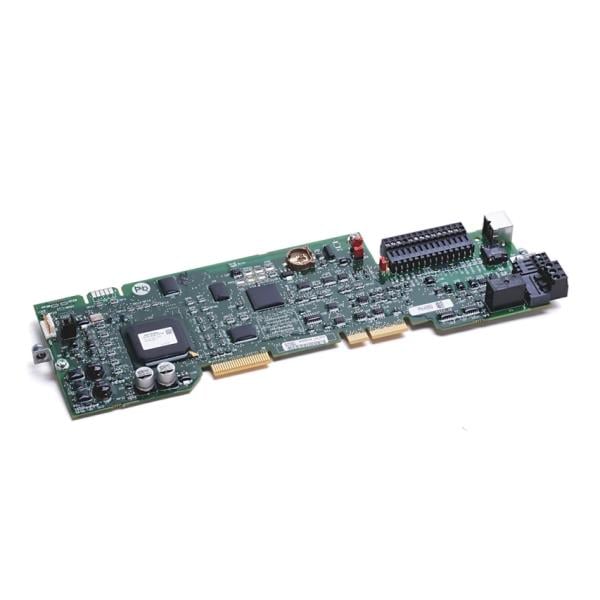

The Allen-Bradley SK-R1-MCB1-PF753 is a main control board used as a spare part for PowerFlex 753 series drives. This replacement component plays a critical role in regulating and managing the operation of the drive, supporting voltages from 400 to 600V AC or 540 to 810V DC depending on the drive configuration.

Technical Specifications

Information About SK-R1-MCB1-PF753

The SK-R1-MCB1-PF753 is specifically engineered for the PowerFlex 753 family of adjustable frequency drives, part of Allen-Bradley’s scalable and modular drive portfolio. Designed as a frame-independent control module, it fits a variety of frame sizes (C, D, E, and F), ensuring a wide range of compatibility across multiple voltage classes and motor control applications.

Key Features:

• Drive Compatibility: Specifically for Allen-Bradley PowerFlex 753 drives.

• Voltage Range Support: Handles 400-600V AC and 540-810V DC, accommodating a wide operational spectrum.

• Frame Independence: Designed to be used across multiple frame sizes (C, D, E, F).

• Application Type: Used as a main control board spare part, suitable for both replacements and upgrades.

• Installation: Modular component requiring just one per drive, ensuring straightforward replacement.

The SK-R1-MCB1-PF753 helps maintain efficient and reliable operation in industrial motor control systems utilizing PowerFlex 753 drives.
