Description

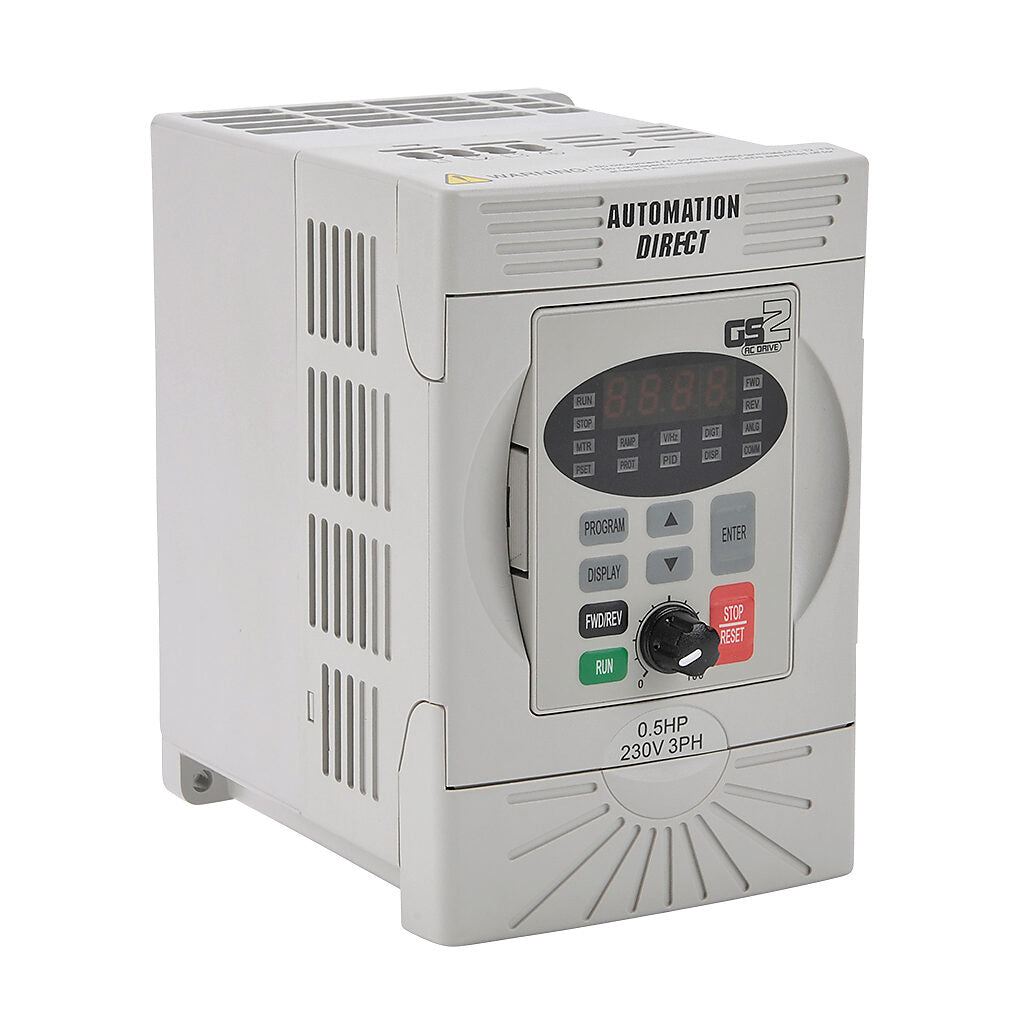

The GS2-20P5 is a GS2 series AC micro drive rated for 230 VAC operation with a 1/2 hp output capacity. It supports both single-phase and three-phase input and operates using V/Hz control mode for basic motor speed regulation. Designed for compact installations, this drive provides reliable motor control in industrial and commercial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS2-20P5 |
| Subcategory |
Drive |
| Series |
GS2 |
| Drive Type |
AC Micro Drive |
| Nominal Input Voltage |
230 VAC |
| Input Phases |
1-phase or 3-phase |
| Output Phases |
3-phase |
| Horsepower Rating |
0.5 HP (1/2 HP) |
| Control Mode |
V/Hz |
| Communication Ports |
RS-232, RS-485 |
| Supported Protocol |
Modbus |
| Frame Size |
A |
| Short Circuit Current Rating |
5 kA SCCR |
| Enclosure Type |
Enclosed |
Weight
|
3.11 lbs |
Information About GS2-20P5
The GS2-20P5 is part of the GS2 micro drive series engineered for compact motor control applications requiring 230 VAC power. It accommodates either single-phase or three-phase input and delivers three-phase output suitable for controlling standard AC induction motors. The unit operates in V/Hz mode and includes integrated RS-232 and RS-485 communication interfaces with Modbus protocol support. Built in an A frame enclosure, it is designed for panel mounting and offers a 5kA short circuit current rating (SCCR).
Key Features:
-
1/2 HP Output Rating: Supports fractional horsepower motor control applications.
-
230 VAC Operation: Designed for standard 230 VAC industrial power systems.
-
Single-Phase or Three-Phase Input: Flexible input configuration for various installations.
-
V/Hz Control Mode: Provides adjustable speed control for AC induction motors.
-
RS-232 and RS-485 Ports: Enables serial communication and network integration.
-
Modbus Communication: Supports Modbus protocol for control and monitoring.
-
Compact A Frame Design: Suitable for space-constrained control panels.
-
5kA SCCR Rating: Rated for 5,000 A short circuit current capacity.
The GS2-20P5 delivers the reliability and precision required for basic AC motor speed control in industrial automation systems.
