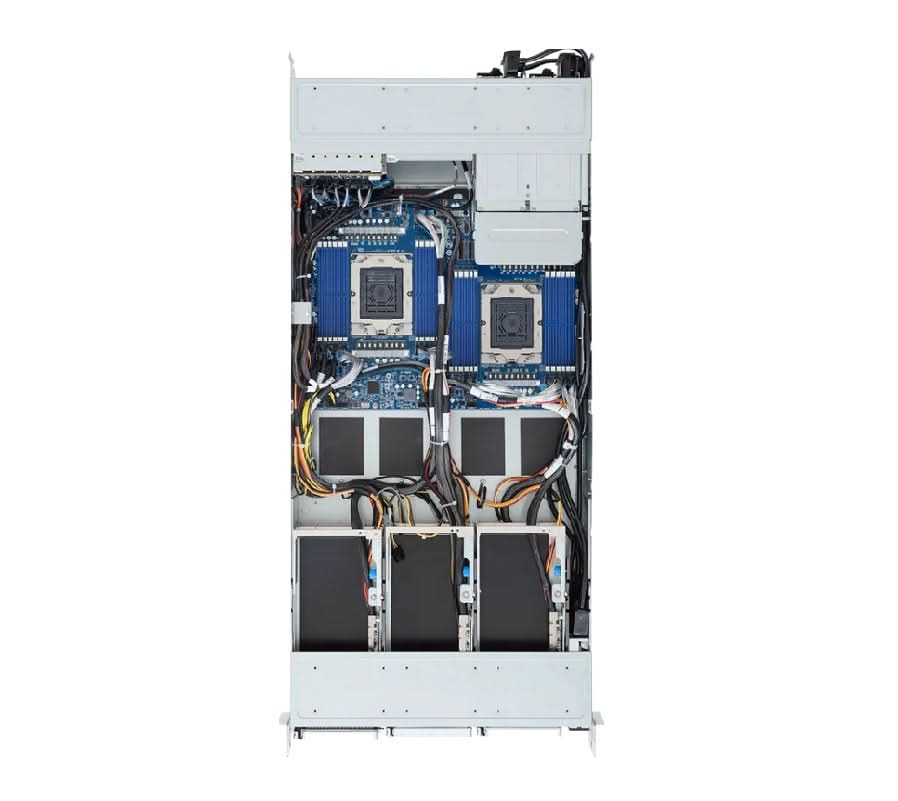

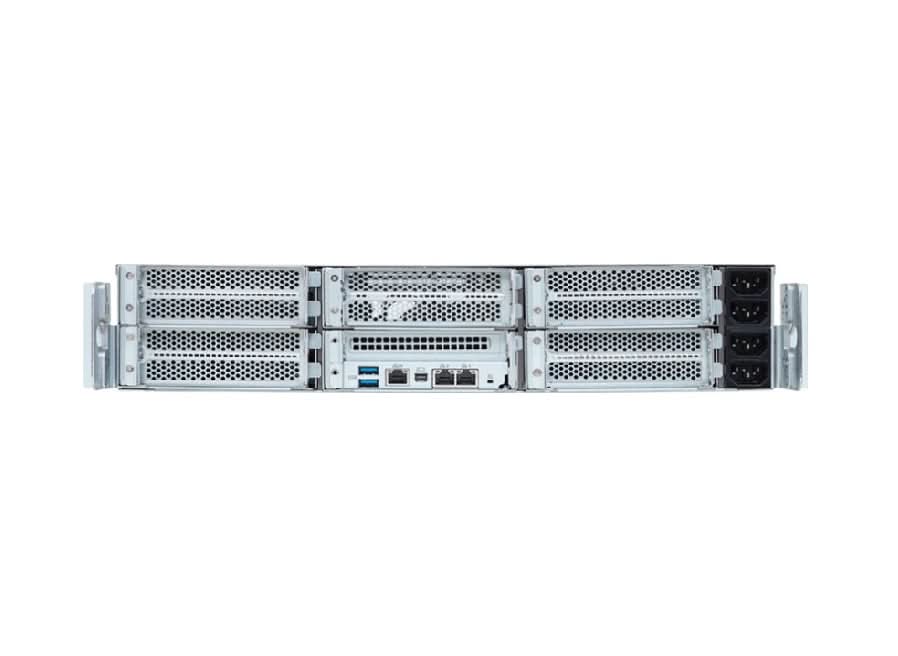

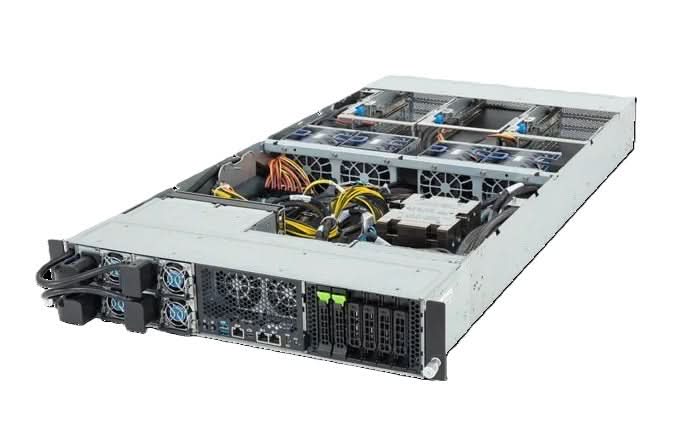

Gigabyte XV23-ZX0-IAJ1 Nvidia HGX AMD EPYC 2U Rackmount/GPU Server
Specifications
Model Number: XV23-ZX0-IAJ1
Brand: Gigabyte
Alt Part Number(s): XV23-ZX0-IAJ1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: XV23-ZX0-IAJ1
Processor Type: AMD EPYC Series 9005/9004
AMD EPYC 9004: RDIMM: Up to 4800 MT/s
AMD EPYC 9005: RDIMM: Up to 6400 MT/s
Processor Socket: 2 x LGA 6096 Socket SP5
Storage:
-
Front/bottom hot-swap bays: 6 × 2.5″ Gen5 NVMe drives
(From CPU_0: 4 NVMe, from CPU_1: 2 NVMe)
-
Internal M.2 slots: 2 × M.2 (2280/22110) via PCIe Gen3 ×2 (from CPU_1), 1 × M.2 (2280/22110) via PCIe Gen3 ×1 (from I/O board / CPU_0)
Chipset Type: System on Chip
Modular GPU: Nvidia HGX
Motherboard: MZX3-MG0
Number of USB Ports: 2 x USB 3.2 Gen1 ports (Type-A)
Number of Channels: 12-Channel
Number of Hot-swaps: 6 x 2.5" Gen5 NVMe hot-swap bays
Controller Type: PCIe Gen5 x4
Graphics Controller: Aspeed AST2600
Memory Supported: 2TB
Memory Technology:
With AMD EPYC 9005 processors, it supports up to DDR5-6400
With AMD EPYC 9004 processors, it supports up to DDR5-4800
Memory Slots: 24 x DIMM
Power Supply: 4 x 2000W 80 Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 2U Rackmount/GPU Server
*
