Overview

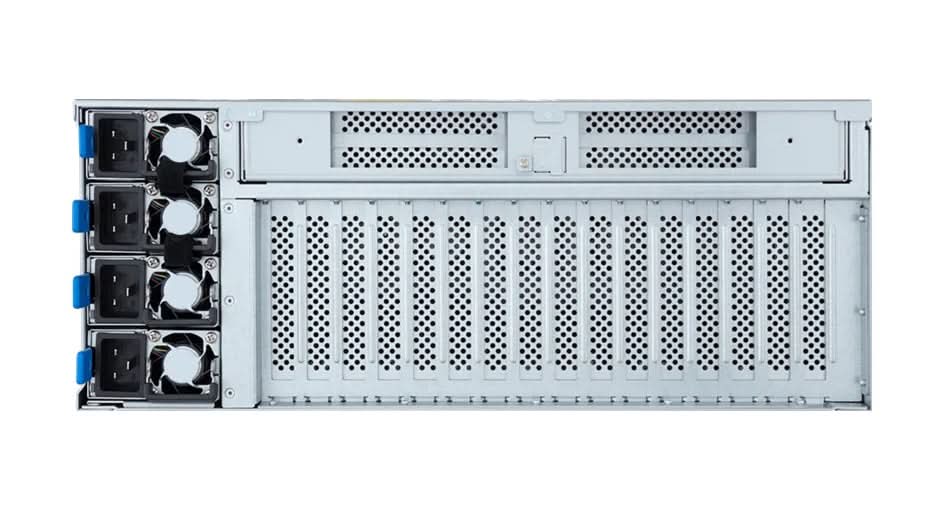

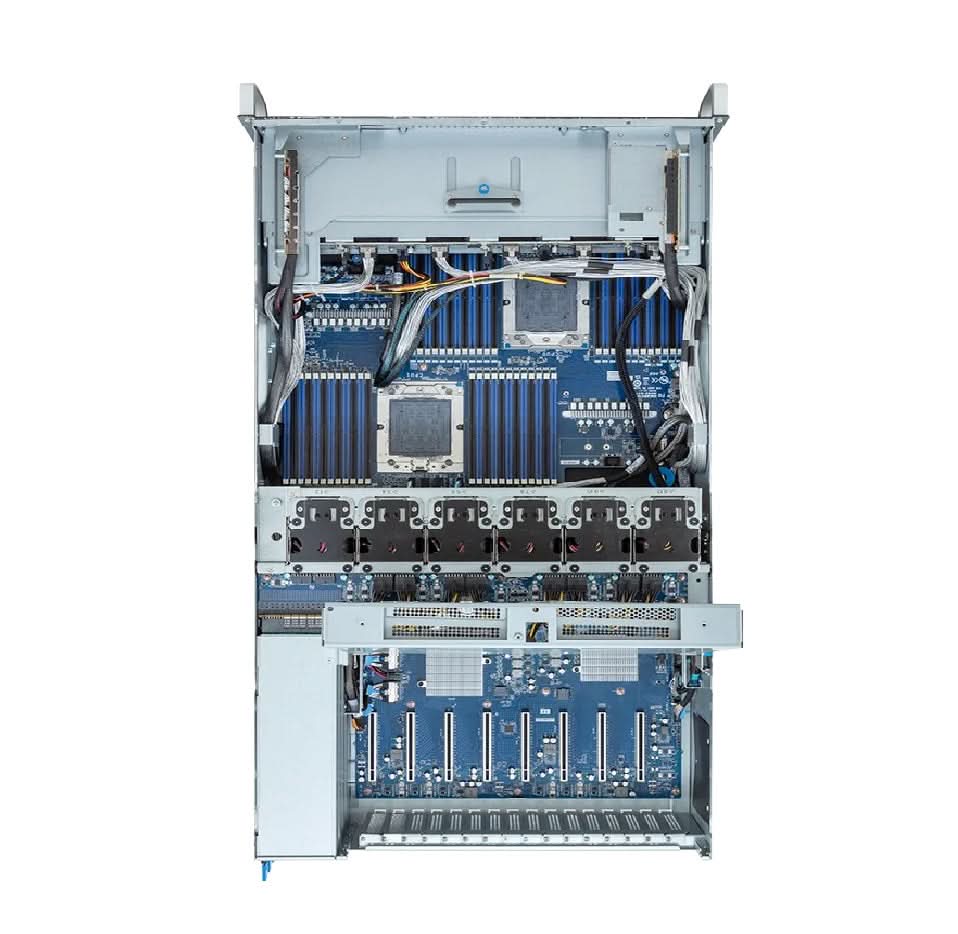

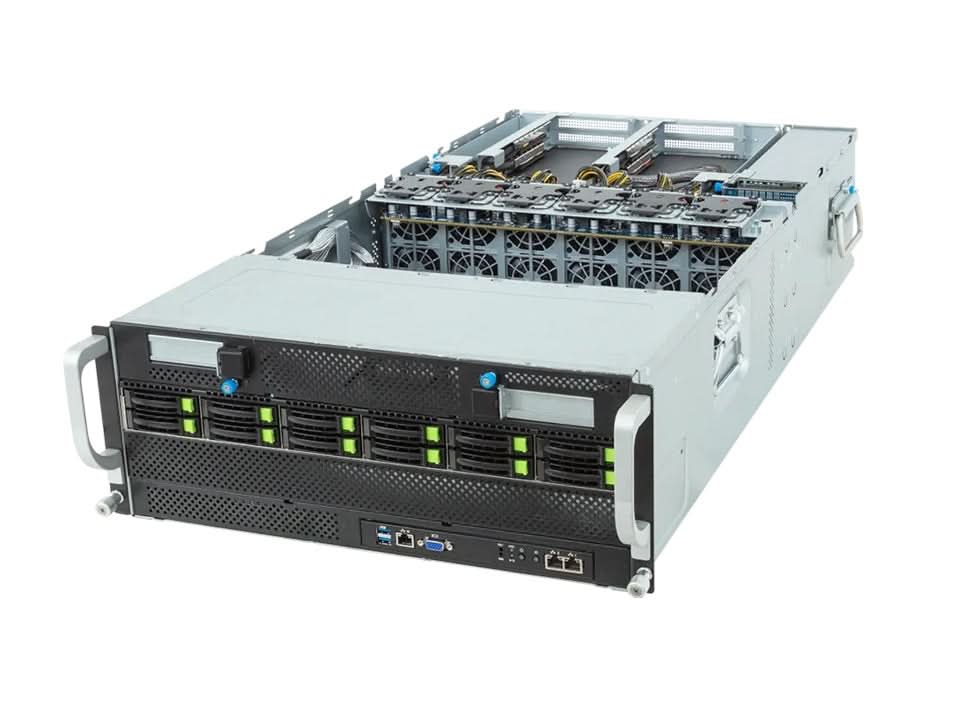

Gigabyte G493-ZB2-AAP1 AMD EPYC MZB3-G41 DDR5 4U Rackmount/GPU Server
Specifications
Model Number: G493-ZB2-AAP1
Brand: Gigabyte
Alt Part Number(s): G493-ZB2-AAP1
Product Type: Server
Technical Description
Brand: Gigabyte
Model Number: G493-ZB2-AAP1
Processors Supported: AMD EPYC 9005, AMD EPYC 9004 Series Processors
AMD EPYC 9005: RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC 9004: RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Processor Power: Up to 400W
Processor Socket: 2 x LGA 6096 Socket SP5
Motherboard: MZB3-G41
Chipset Type: System on Chip
USB Type: 2 x USB 3.2 Gen1 ports (Type-A)
Storage Hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Number of Channels: 12-Channel
Controller Type: PCIe Gen5 x4 or SATA 6Gbps or SAS-4 24Gbps
Graphics Controller: ASPEED AST2600
Memory Slots: 48 x DIMM
Memory Technology:DDR5
Memory Supported: Up to 6 TB
Memory Standard: DDR5-4800/PC5-38400
Expansion Slots: 16
Power Supply: 3+1 3000W 80Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 4U Rackmount/GPU Server
Height: 6.9"
Width: 17.6"
Depth: 34.6"
*
