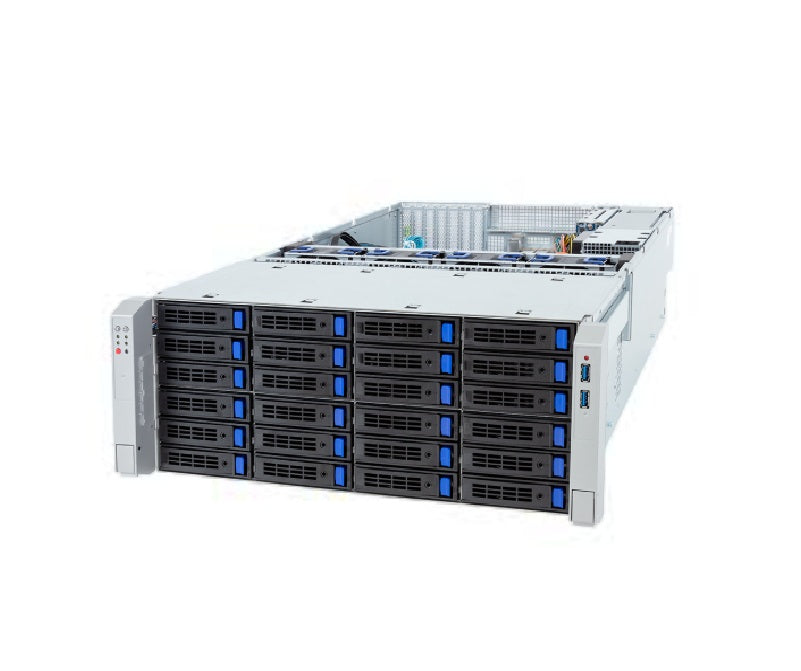

The Gigabyte S453-Z30-ACV1 is a high-density 4U storage server designed for enterprise-grade software-defined storage (SDS) and massive data archiving. It is built on a single-socket platform optimized for AMD EPYC™ 9005/9004 series processors, balancing extreme storage capacity with high-speed DDR5 memory and PCIe Gen5 connectivity.
Specifications
Model Number: S453-Z30-ACV1
Brand: Gigabyte
Alt Part Number(s): S453-Z30-ACV1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: S453-Z30-ACV1
Processor Type: 1× AMD EPYC 9004/9005 Series
Processor Core: 128 Cores / 256 threads
Processor Power: up to ~300 W TDP
Processor Socket: Socket SP5 / LGA 6096
Motherboard: MZ33‑AR0
Chipset: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 2× 10GbE + 1× mgmt
Front drive bays: 24 × hot‑swap
Rear drive bays: 12 × hot‑swap
Boot bays: 2 × 2.5″
Expansion Slots: 4 × LP PCIe Gen5 ×16 slots
Memory Supported: 6TB
Memory Speed: Up to 4800 MT/s, Up to 3600 MT/s
Memory Technology: DDR5 RDIMM
Memory Slots: 24 x DIMM slots
Memory Channels: 12-Channels
Cooling: 8 × system fans
Power Supply: Dual 1600 W redundant
Form Factor: 4U Rackmount
