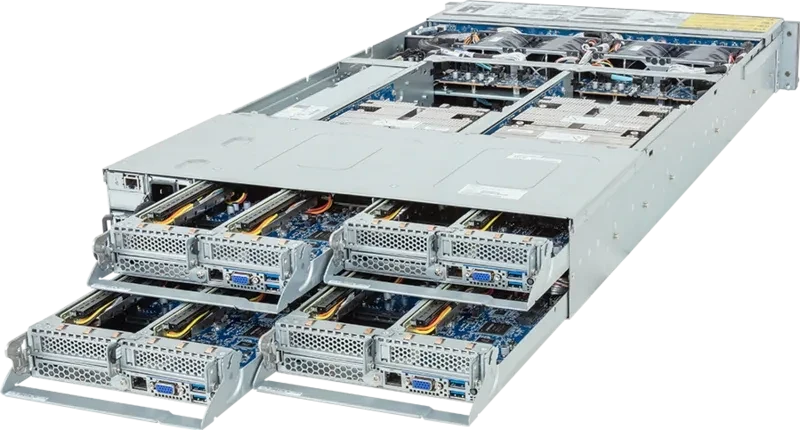

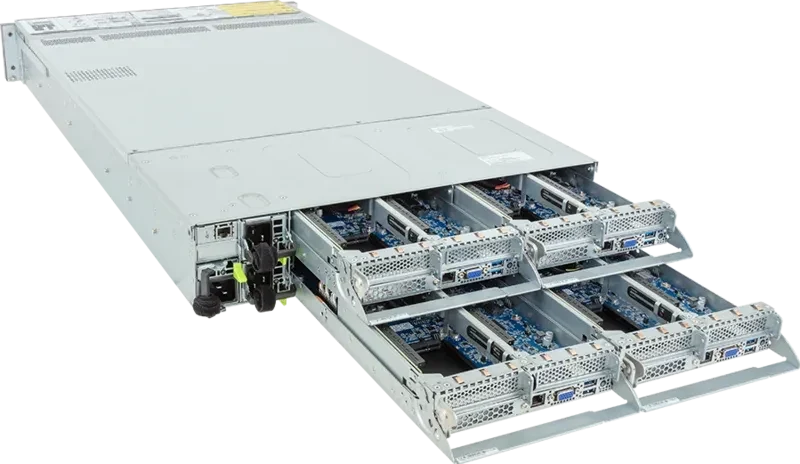

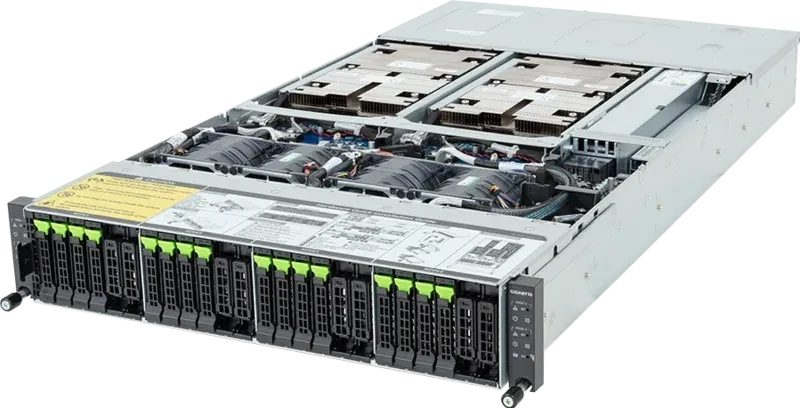

Gigabyte H263-V60-AAW1 NVIDIA Grace CPU Superchip 2U 4-Node 16-Bay Gen5 NVMe Rack-Mountable Server
Specifications
Model Number: H263-V60-AAW1
Brand: Gigabyte
Alt Part Number(s): H263-V60-AAW1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: H263-V60-AAW1
Form Factor:Rack-Mountable, GPU Server
Chassis Type: 2U 4-Node - Rear Access

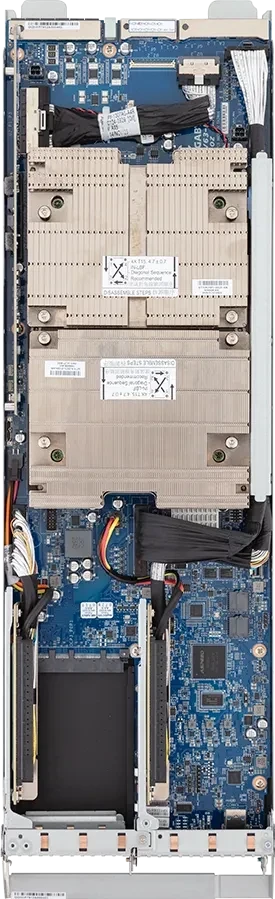

Processor Type: NVIDIA Grace™ CPU Superchip
Memory Capacity: Up to 960GB LPDDR5X ECC memory per module
Memory Type: LPDDR5X with ECC
Storage Type: 2.5" Gen5 NVMe and M.2 PCIe Gen5
Memory Bandwidth: Up to 1 TB/s per node

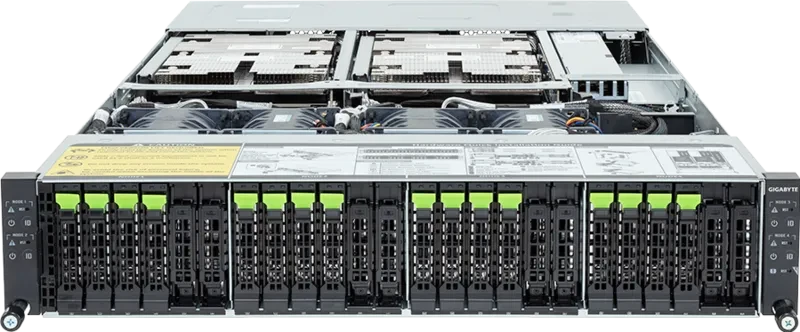

Storage Bays: 16 x 2.5" Gen5 NVMe (hot-swap)
Internal Storage: 8 x M.2 PCIe Gen5 x4

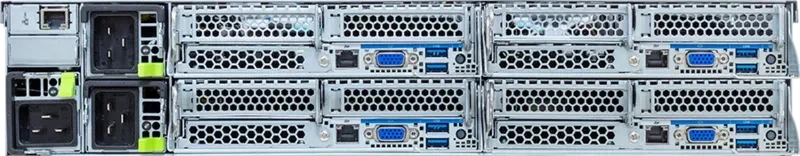

PCIe Expansion Slots: 8 x LP Gen5 x16 + 4 x OCP NIC 3.0 Gen5 x16
LAN Ports: 4 x 10/100/1000 Mbps Management LAN
CMC LAN: 1 x CMC Management LAN port
Video Controller: Integrated ASPEED® AST2600 (x4)
VGA Ports: 4 x VGA ports
USB Ports: 8 x USB 3.2 Gen1 (Type-A)
Power Supply: 2+1 3000W 80 PLUS Titanium (redundant)
Power Input: 100-240V AC / 240V DC (China)
TPM Header: 1 x SPI interface (TPM2.0 optional)
Backplane Interface: PCIe Gen5 x4

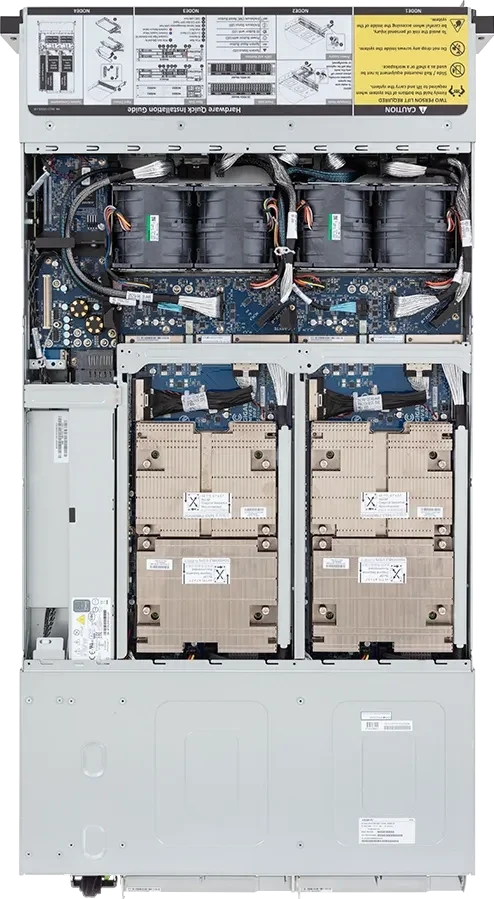

System Fans: 4 x 80x80x80mm (16,500 rpm)
System Management: ASPEED® AST2600 BMC + AST2520 CMC
Remote Management: GIGABYTE Management Console (HTML5 KVM, BIOS/BMC updates)
Monitoring: Voltage, Temp, RPM, CPU Status, FRU, SEL, Fan Profiles
Security Features: LDAP / AD / RADIUS, Firewall, PAM, SSL
Event Logging: SEL Log with linear or circular storage
Power Management: Power monitoring, control, and capping
Operating Temperature: 10°C to 30°C
Operating Humidity: 10% to 80% (non-condensing)
*
