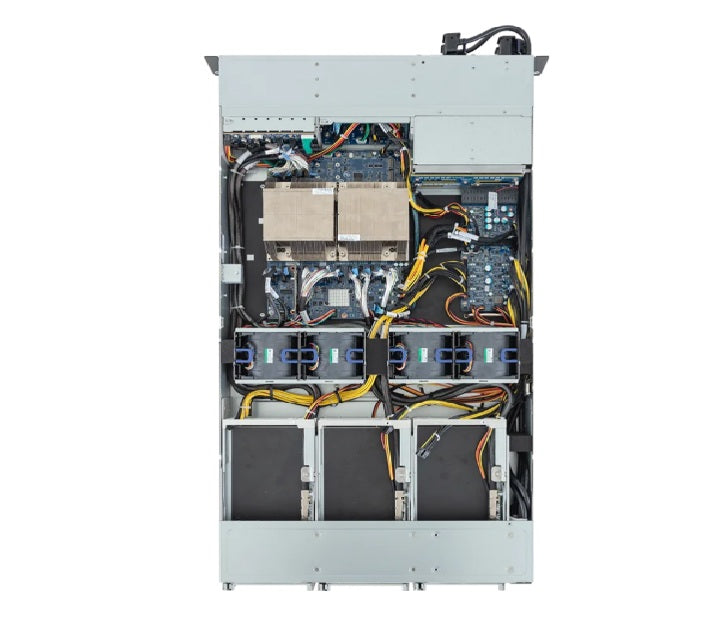

The XV23-VC0-AAJ1 is a high-performance 2U GPU Rackmount Server from Gigabyte designed for AI training, inference, and high-performance computing (HPC). It is built on the NVIDIA MGX modular server design to support massive data processing with high power efficiency.
Specifications
Model Number: XV23-VC0-AAJ1
Brand: Gigabyte
Alt Part Number(s): XV23-VC0-AAJ1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: XV23-VC0-AAJ1
Processor Type: NVIDIA Grace CPU Superchip
Processor Core: 144 Core/144 Thread
Processor Power: TDP up to 500W
Motherboard: MVC3-MG0
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 1 × 1GbE management LAN
Number of Drive Bays: 2 x 2.5" Gen5 NVMe hot-swap bays
Expansion Slots: 6 x FHFL PCIe Gen5 x16 slots
Memory Installed: 480GB
Memory Technology: LPDDR5X ECC
Memory Speed: Up to ~500 GB/s per CPU (LPDDR5X)
Power Supply: 2+2 redundant PSUs 2000W 80 PLUS Titanium
System Cooling: 4 x 80x80x80mm
Form Factor: 2U Rackmount/GPU Server
