Overview

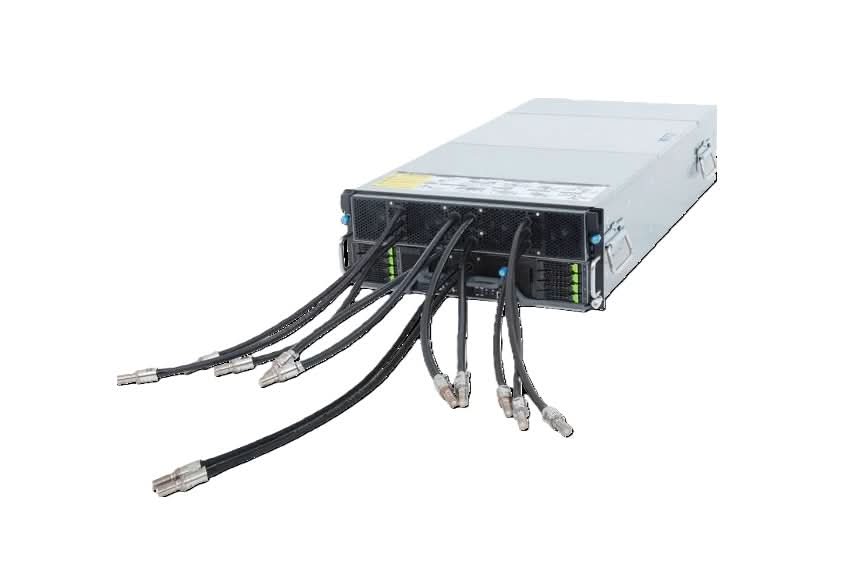

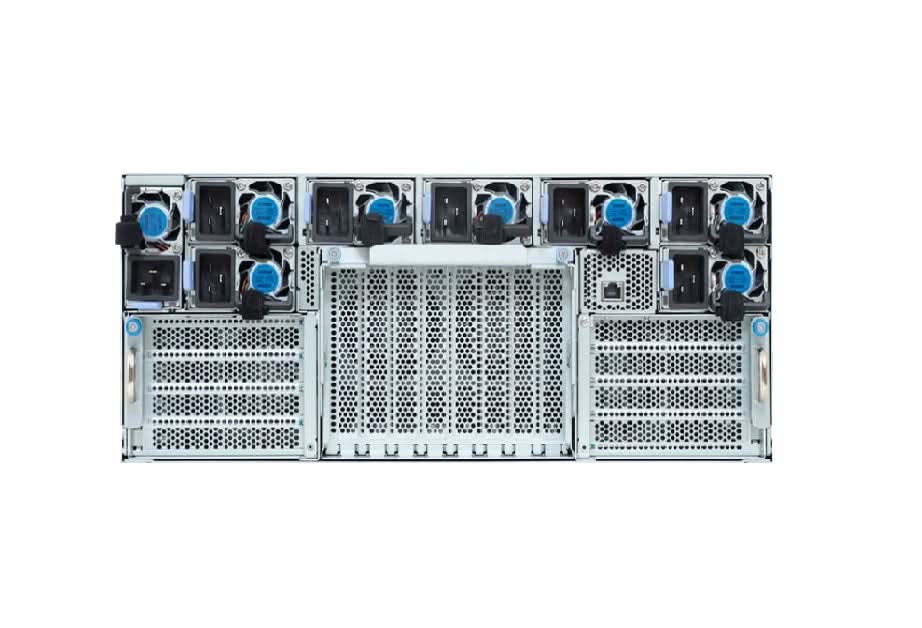

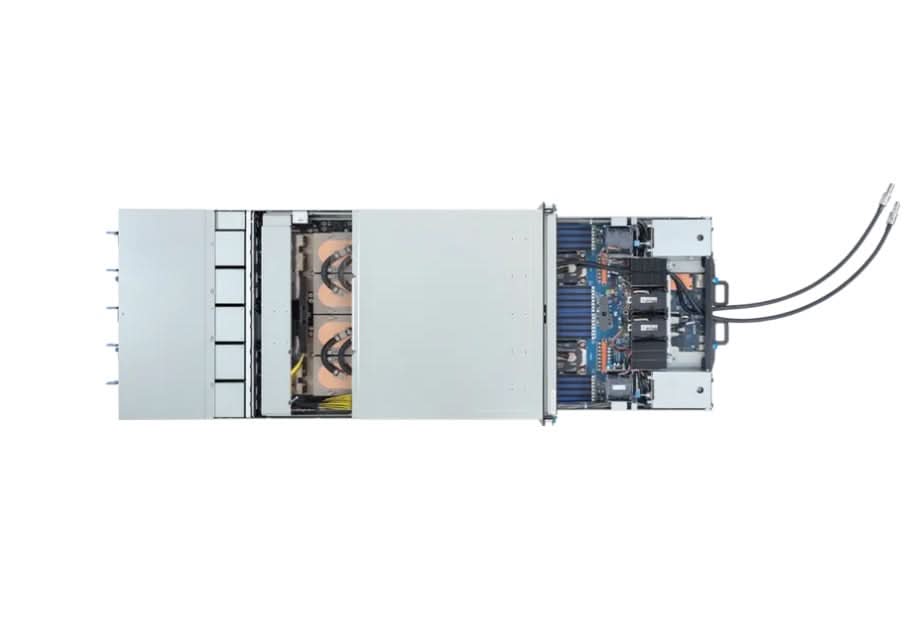

Gigabyte G4L3-SD1-LAX5 HGX B200 Intel Xeon Scalable 4U Rackmount GPU Server features dual Intel Xeon Scalable CPU Max Series with 8-channel DDR5 memory supporting up to 8 TB across 32 DIMM slots. It includes modular NVIDIA HGX B200 with 8 SXM GPUs, 8 hot-swap Gen5 NVMe/SATA drives, 16 PCIe expansion slots, and 4+4 3000W redundant power supplies.
Specifications
Model Number: G4L3-SD1-LAX5
Brand: Gigabyte
Alt Part Number(s): G4L3-SD1-LAX5
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G4L3-SD1-LAX5
Processor Type: Intel Xeon Scalable CPU Max Series
Processor Socket: 2 x LGA 4677 Socket E
Number of Channels: 8-Channel
5th Gen Intel Xeon: RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Chipset Type: Intel C741
Memory Supported: 8TB
Memory Technology: DDR5
Memory Slots: 32 x DIMM
Storage Type: 8 x 2.5" Gen5 NVMe/SATA
Modular GPU: NVIDIA HGX B200 with 8 x SXM GPUs
Expansion Slots: 16
Power Supply: 4+4 3000W 80 Plus
Motherboard: MSB3-PE0
Controller Type: PCIe Gen3 x2
Graphics Controller: ASPEED AST2600
Front hot-swap: 8 x 2.5" Gen5 NVMe/SATA
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 4U Rackmount/GPU server
*
