Overview

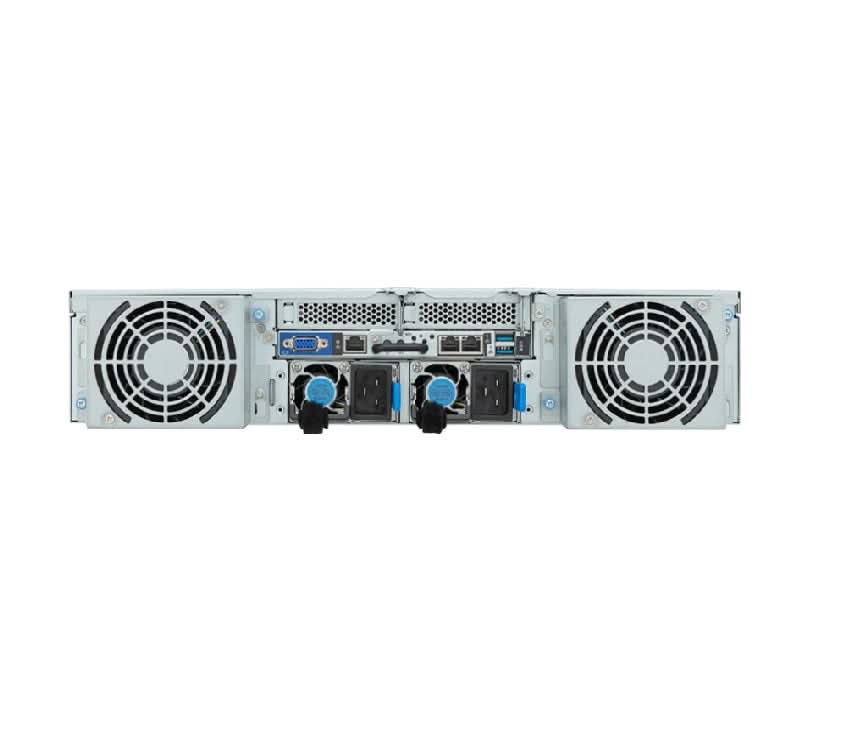

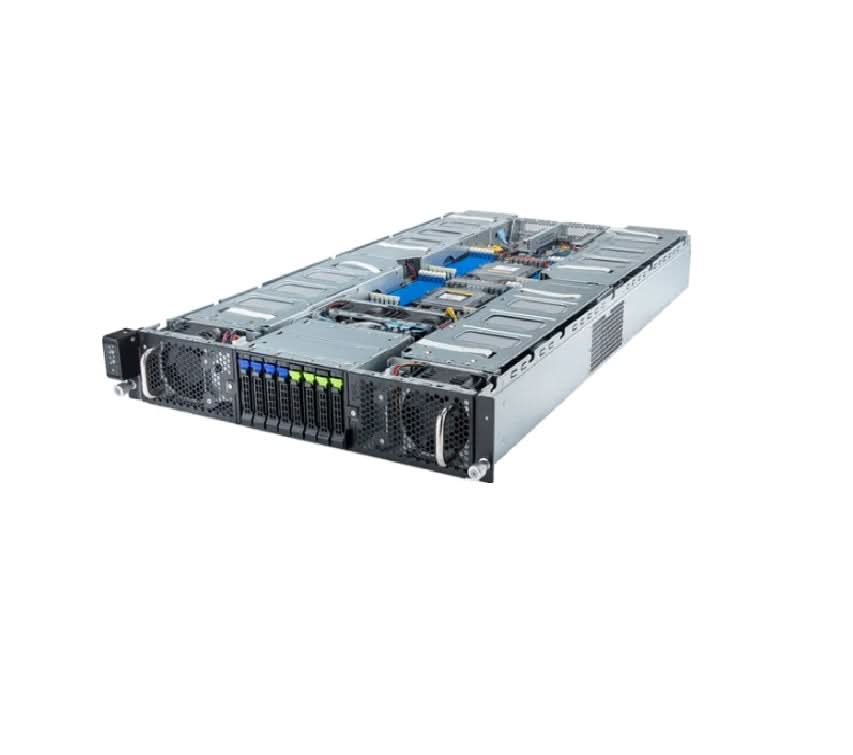

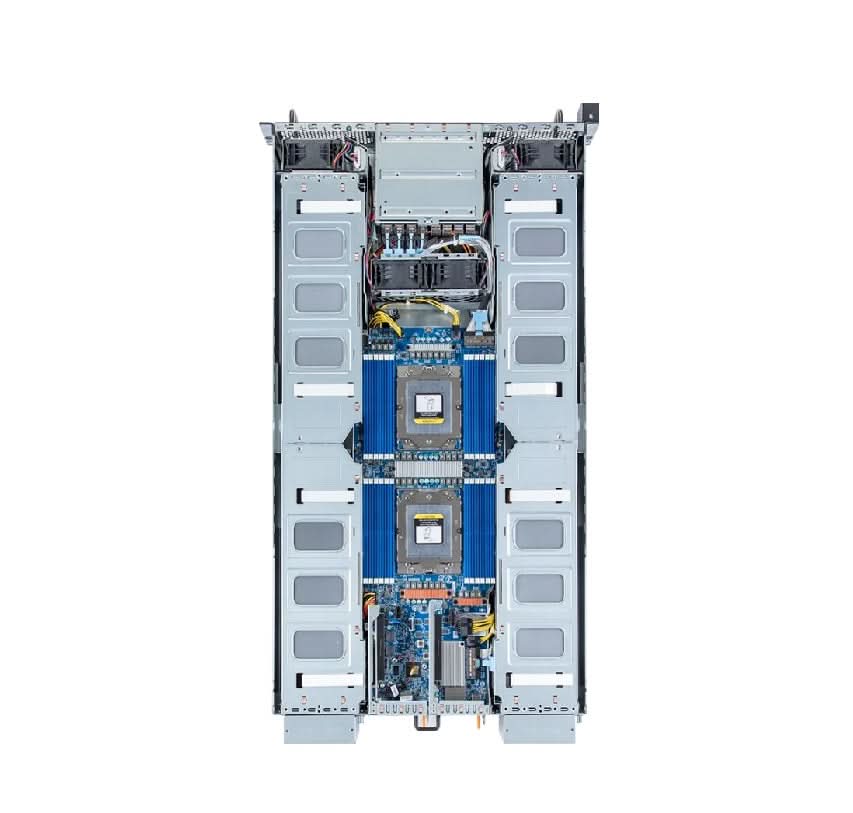

The Gigabyte G293-Z40-AAP1 is a 2U GPU server designed for high-performance computing, artificial intelligence, training and inference, and visual computing applications. It features dual AMD EPYC 9004 or 9005 series processors and is configured for air cooling
Specifications
Model Number: G293-Z40-AAP1
Brand: Gigabyte
Alt Part Number(s): G293-Z40-AAP1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G293-Z40-AAP1
Processor Type: AMD EPYC 9005, 9004 Series Processors
AMD EPYC 9005: RDIMM: Up to 6400 MT/s
AMD EPYC 9004: RDIMM: Up to 4800 MT/s
Processor Power: Up to 210W
Processor Socket: 2 x LGA 6096 Socket SP5
Chipset Type: System on Chip
Motherboard: MZ43-G20
Number of Fans: 8
Number of Channels: 12-Channel
Storage Hot-swap: 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
4 x 2.5" SATA/SAS hot-swap bays
USB Type: 2 x USB 3.2 Gen1 ports (Type-A)
Controller Type: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
Graphics Controller: Aspeed AST2600
Memory Supported: 6TB
Memory Technology: DDR5
Memory Slots: 24x DIMM
Expansion Slots: 16
Power Supply: Dual 3000W 80Plus
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: 2U Rackmount/GPU Server
*
