Description
Product description

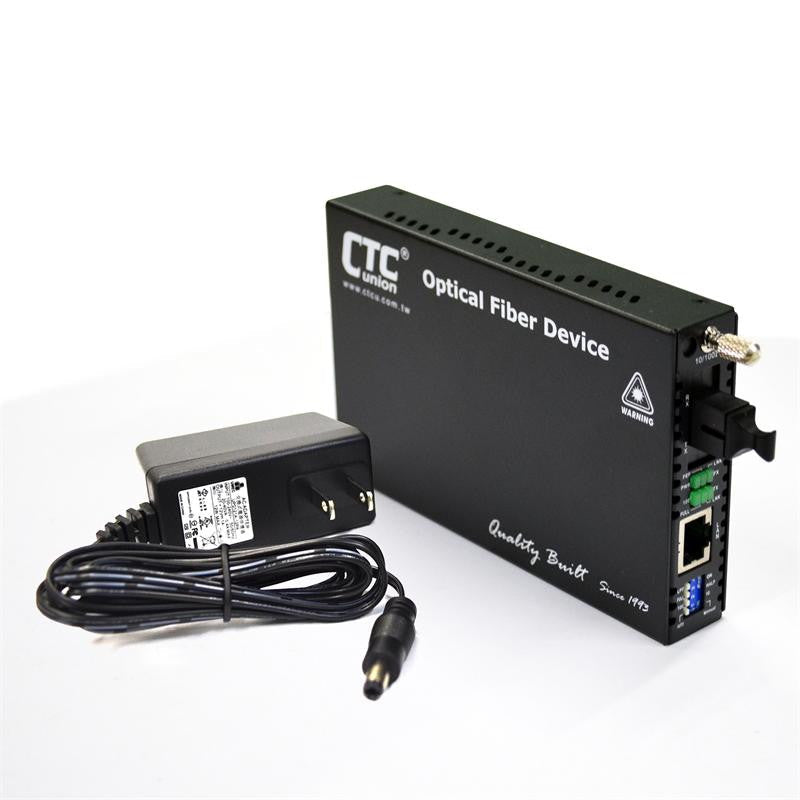

The FRM220-10-100I-SC40B Fast Ethernet BiDirectional WDM fiber media converter is a 10/100Base-TX to 100Base-FX single-mode Tx:1550nm/Rx:1310nm converter reaching up to 40km distance. The B type WDM BiDirectional converters must be paired with A type units using complementary Tx:1310/Rx:1550nm optical modules. Multiplexing two wavelengths on a single strand of fiber leads to significant fiber cable savings, doubling the plant capacity at literally no extra cost. Unit supports web-based and in-band management including powerful features like Bandwidth Limiting, Dying Gasp, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test. FRM220-10-100I-SC40B can be managed when inserted into an FRM220 series chassis equipped with an FRM220-NMC management card. Remotely connected converters can be managed in-band over the fiber. Up to 8 big FRM220-CH20 chassis can be controlled with a single management card.
The FRM220 series converters are extremely versatile, being available in several versions of power supply: external AC adapter,embedded internal AC power, embedded internal DC neg. 48V power or dual combo embedded AC and DC power supply. Same model can also be installed in the FRM220chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-10-100I-SC40B Fast Ethernet media converter is a very powerful choice for media converter solution for data carriers and service providers.
Technical specifications
Fiber power budget for the 40Km single strand Bi-Directional WDM models
Additional information on FRM220-10-100I converters:
PDF Datasheet; PDF Installation Manual.
Note: Same converter can be ordered with ST or FC connectors
The FRM220-10-100I-SC40B Fast Ethernet BiDirectional WDM fiber media converter is a 10/100Base-TX to 100Base-FX single-mode Tx:1550nm/Rx:1310nm converter reaching up to 40km distance. The B type WDM BiDirectional converters must be paired with A type units using complementary Tx:1310/Rx:1550nm optical modules. Multiplexing two wavelengths on a single strand of fiber leads to significant fiber cable savings, doubling the plant capacity at literally no extra cost. Unit supports web-based and in-band management including powerful features like Bandwidth Limiting, Dying Gasp, Link-Loss-Forwarding, Remote-Monitoring-Status and Loop-Back-Test. FRM220-10-100I-SC40B can be managed when inserted into an FRM220 series chassis equipped with an FRM220-NMC management card. Remotely connected converters can be managed in-band over the fiber. Up to 8 big FRM220-CH20 chassis can be controlled with a single management card.
The FRM220 series converters are extremely versatile, being available in several versions of power supply: external AC adapter,embedded internal AC power, embedded internal DC neg. 48V power or dual combo embedded AC and DC power supply. Same model can also be installed in the FRM220chassis, in matter of minutes. In an always changing and growing networking environment, such a versatile model allows network operators to switch to higher density and aggregation hubs without the need to purchase new fiber optic converters. The FRM220-10-100I-SC40B Fast Ethernet media converter is a very powerful choice for media converter solution for data carriers and service providers.
Technical specifications
| Interfaces: | One RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX and one 100Base-BX built-in fiber port for 802.3u standard |
| Connectors: | One RJ-45 copper 10/100 Mbps and one single SC optical port 100Base-BX, Tx:1550/Rx:1310nm |
| UTP port: | MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 2046 bytes - switch/ 9K bytes - converter |
| Optical port: | 1 x 9 single SC transceiver, Tx:1550/Rx:1310nm, up to 40Km on 9/125um single-mode single strand fiber |
| Front LEDs: | Power, FEF, FX-Link, TX-SPD, Tx-Duplex, Tx-Link |
| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug |
| Temperature: | 0 60°C (Operating); -10 70°C (Storage) |
| Humidity: | 10 90% non condensing |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 88mm x 155mm x 23mm |
| Weight: | 340g (without AC adapter) |
| Compliance: | CE, FCC Class A, LVD, RoHS |
| MTBF: | 65,000 hours |
Fiber power budget for the 40Km single strand Bi-Directional WDM models
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| FRM220-10-100I-SC40A | 40Km | Tx:1310nm Rx:1550nm | -7 | -32 | 25 |
| FRM220-10-100I-SC40B | 40Km | Tx:1550nm Rx:1310nm | -8 | -32 | 24 |
Additional information on FRM220-10-100I converters:
PDF Datasheet; PDF Installation Manual. Note: Same converter can be ordered with ST or FC connectors
