Description
Product description

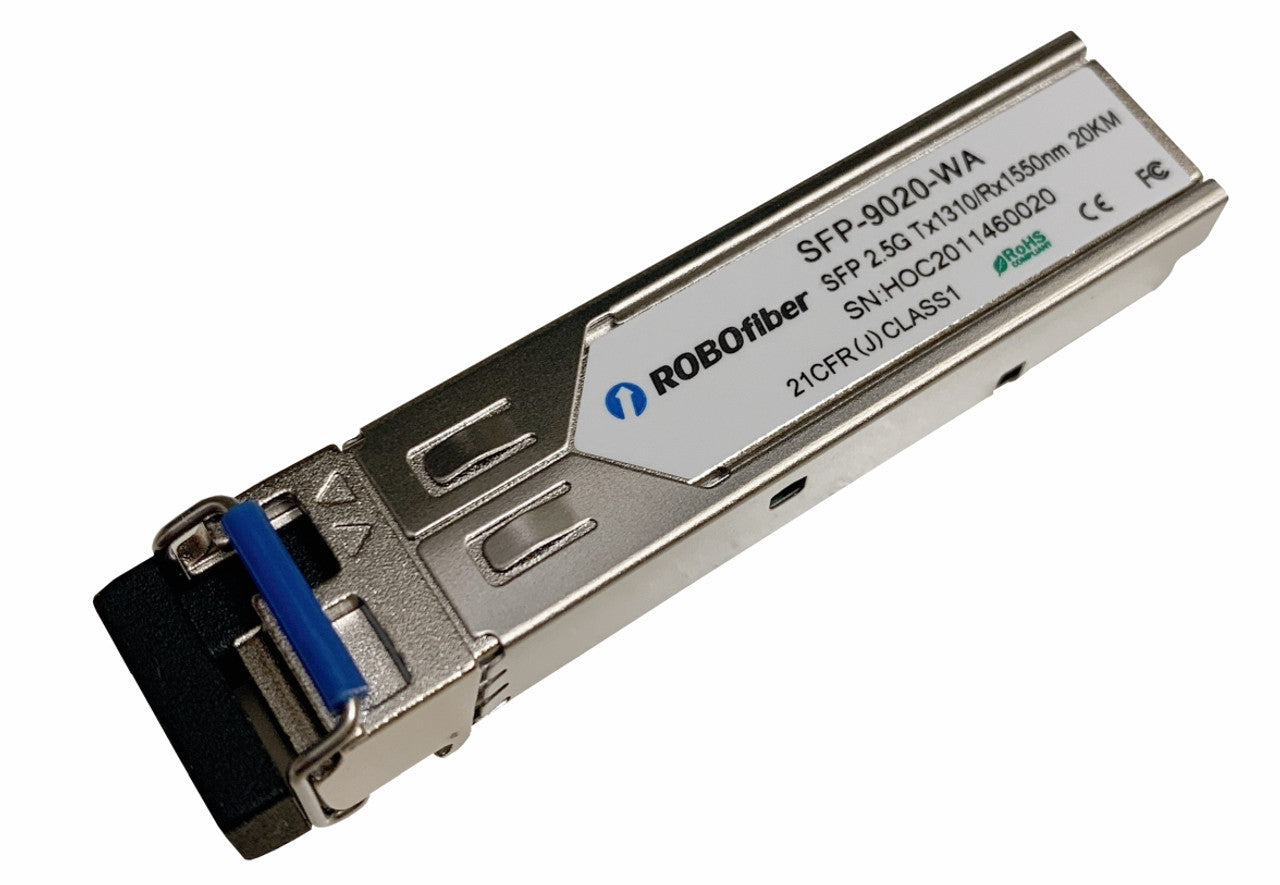

The SFP-9020-WA SFP transceiver has a maximum of 2.67Gbps rate. The transceiver is able to work over a single strand of 9/125um single-mode fiber for up to 20Km distance.
Module is multi-rate, supporting FibreChannel speeds of 1G and 2G, SONET OC48/OC12/OC3, STM-1/4/16 or Gigabit/Fast Ethernet interfaces and also 2.5G Ethernet.
The SFP-9020-WA module supports DD (Digital Diagnostic) functions.
Also, SFP-9020-WA must be paired with the complementary SFP-9020-WB model having Tx:1550nm/Rx:1310nm wavelength.
SFP's or miniGBIC modules are extremely versatile, working with any active equipment that support the SFP type of interface: Ethernet switches, routers and any other networking equipment.
Our SFPs have been tested and found 100% compatible with various Ethernet switches from major manufacturers like: Cisco, Nortel, Extreme, ZyXEL, D-Link or Netgear.
Fiber power budget according to available models
(highlighted model is one available for purchase on this page)
| Model | Distance | Lambda | Min. Output (dBm) | Sensitivity (dBm) | Power Budget (dB) |
| SFP-9020-WA | 20Km | 1310/1550nm | -5 | -18 | 13 |
| SFP-9020-WB | 20Km | 1550/1310nm | -5 | -18 | 13 |
Additional information on the SFP-9020-WA optical transceiver:
PDF datasheet
