Description

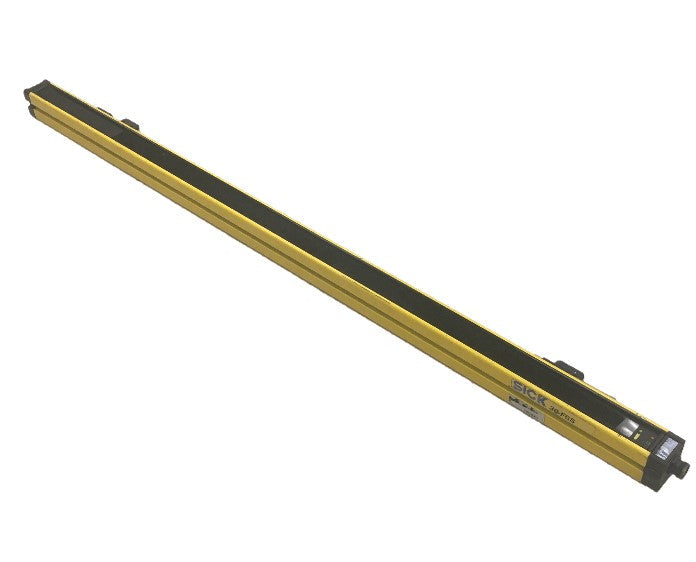

The SICK FGSS1800-211 is a Type 4 safety light curtain sender designed to provide non-contact machine safeguarding in industrial environments. It delivers a 30 mm resolution with an extended protective height for reliable detection across large access areas. This sender unit is used in conjunction with a compatible receiver to form a complete safety light curtain system.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
FGSS1800-211 |
| Subcategory |
Safety Light Curtains |
| Series |
FGS |
| Device Type |
Sender (Emitter) |
| Safety Type |
Type 4 |
| Resolution |
30 mm |
| Protective Height |
1832 mm |
| Supply Voltage |
24 VDC |
| Safety Function |
Personnel protection |
| Installation Type |
Fixed machine mounting |
| Operating Environment |
Industrial |
| Weight |
Approx. 1.7 kg |
Information About FGSS1800-211
The FGSS1800-211 is part of SICK’s FGS series safety light curtains, engineered to meet stringent Type 4 safety requirements. It functions as a sender (emitter) unit that pairs with a matching receiver to create an electro-sensitive protective device. Operating on a 24 VDC supply, it supports stable performance in demanding industrial environments. Its design is optimized for safeguarding wide and tall machine openings on automated production equipment.
Key Features:
- Type 4 Safety Rating: Designed to meet high-level machine safety and personnel protection standards.
- Sender Unit Configuration: Emitter-only unit for use with a compatible FGS series receiver.
- 30 mm Resolution: Suitable for reliable hand and body detection applications.
- 1832 mm Protective Height: Covers large vertical access points on industrial machinery.
- FGS Series Design: Engineered for robust and dependable safety performance.
- 24 VDC Operation: Compatible with standard industrial safety power supplies.
The FGSS1800-211 delivers the reliability and precision required for industrial machine safeguarding and personnel protection applications.
