Description

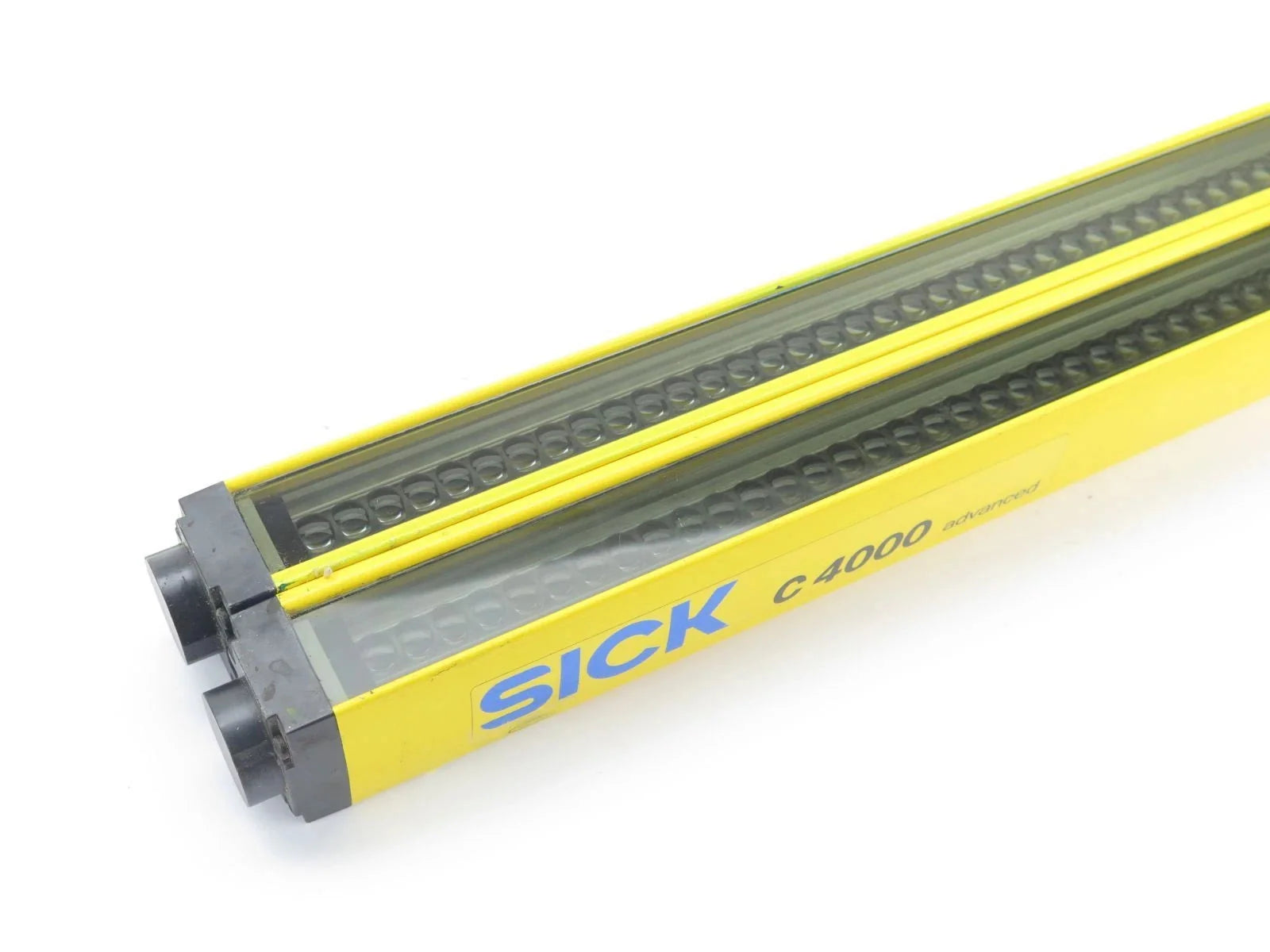

The SICK C40E-1004CA010 is a safety light curtain receiver from the C4000 series designed for personnel protection in normal industrial environments. It provides reliable Type 4 safety monitoring with a 40 mm resolution, fast 11 ms response time, and optical synchronization.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Safety Sensors |
| Part Number |
C40E-1004CA010 |
| Subcategory |
Safety Light Curtains |
| System Part |
Receiver |
| Series |
C4000 |
| Resolution |
40 mm |
| Scanning Range |
21 m |
| Protective Field Height |
1,050 mm |
| Response Time |
11 ms |
| Synchronization |
Optical synchronisation |
| Application Environment |
Normal industrial environment |
| System Connection |
Hirschmann male connector M26, 12-pin |
| Configuration Connection |
Female connector M8, 4-pin |
| Cable Connection Direction |
Straight |
| Conductor Cross Section |
0.75 mm² |
| Permitted Cable Length |
Up to 50 m |
| Configuration Method |
PC with CDS software |
| Display Elements |
7-segment display |
| Housing Material |
Aluminum extruded profile |
| Housing Cross-Section |
48 mm × 40 mm |
| Enclosure Rating |
IP65 |
| Ambient Operating Temperature |
0 °C … +55 °C |
| Storage Temperature |
–25 °C … +70 °C |
| Weight |
2,280 g |
Information About C40E-1004CA010
The C40E-1004CA010 is part of SICK’s C4000 safety light curtain family developed for advanced machine safeguarding applications. This receiver unit operates together with a compatible C4000 emitter to form a certified protective system capable of monitoring hazardous access zones. With a 40 mm resolution, it supports reliable hand and body detection while maintaining fast response times for effective risk reduction. The integrated 7-segment display and PC-based configuration via CDS software simplify setup, diagnostics, and ongoing maintenance.
Key Features
- 40 Mm Resolution: Enables dependable detection of hand and body intrusion while supporting practical safety distances.
- 1050 Mm Protective Field Height: Provides extended vertical coverage for guarding taller machine openings and access points.
- Fast 11 Ms Response Time: Supports rapid machine stop initiation when the protective field is interrupted.
- Optical Synchronisation: Eliminates the need for hardwired synchronization, simplifying installation and system layout.
- Long Scanning Range: Operates reliably at distances up to 21 m between emitter and receiver.
- Advanced Configuration Options: Supports PC-based setup using CDS software and provides a 7-segment display for status indication.
- Robust Aluminum Housing: Extruded aluminum profile and IP65 rating ensure durability in industrial environments.
The C40E-1004CA010 delivers the reliability and precision required for effective personnel protection in industrial machine safety systems.
