Description

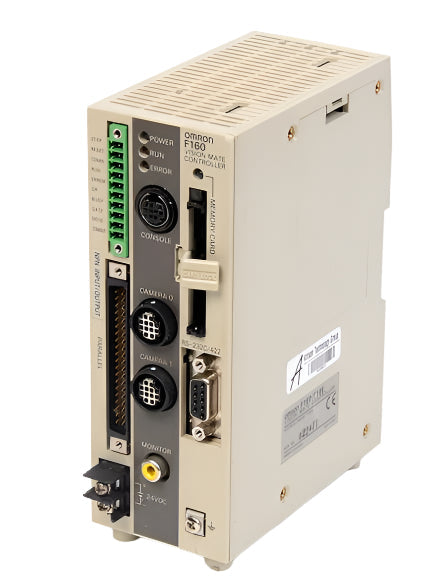

The Omron F160-C10E is a high-performance camera controller designed for advanced machine vision tasks, featuring NPN output and a 24 VDC supply. It offers extensive functionality, from screen capture to image storage, in a compact DIN-rail mountable form.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
F160-C10E |
| Subcategory |
Robot Control |
| Series |
F160 |
| Output Type |
NPN |
| Supply Voltage |
20.4–26.4 VDC |
| Mounting |
DIN rail chassis mount |
| Memory Card Slot |
Yes |
| Max Scene Storage |
Up to 1,000 scenes (with 128 MB card) |
| Vision Functions |
I/O monitor, screen capture, displacement compensation |
| Dimensions |
16 × 6 × 11 cm |
| Weight |
1 kg |
Information About F160-C10E
The F160-C10E is part of Omron’s F160 Series Vision Sensor controllers, built for precision image processing and scene analysis in automated inspection and positioning systems. It operates on a 24 VDC supply (range: 20.4–26.4 VDC), with NPN output compatibility, and is designed for DIN rail chassis mounting—ideal for integration into industrial control panels. The unit enhances usability with features such as screen capture, I/O monitoring, and position displacement compensation. Notably, it includes a memory card slot that allows storage of up to 1,000 scenes with a 128 MB card, eliminating the need for external computers in vision applications. This expandable data-handling capacity reduces setup complexity while supporting scalable image management.
Key Features:
- 24 VDC Power Operation: Accepts 20.4–26.4 VDC, offering stable and noise-tolerant operation in industrial environments.
- Advanced Vision Features: Supports screen capture, I/O monitoring, and positional compensation for high-accuracy image analysis.
- Expandable Scene Storage: Memory card slot enables up to 1,000 scenes to be saved, simplifying application changeover.
- DIN Rail Mountable: Compact 16 × 6 × 11 cm footprint allows seamless integration into control cabinets.
- NPN Output Type: Ensures compatibility with NPN-style sensor and controller configurations.
- Cost-Effective Setup: Reduces the need for computer-based systems by offering self-contained scene management and transfer.
The F160-C10E brings powerful vision control to automation lines, simplifying system design while enhancing inspection versatility and efficiency.
