Description

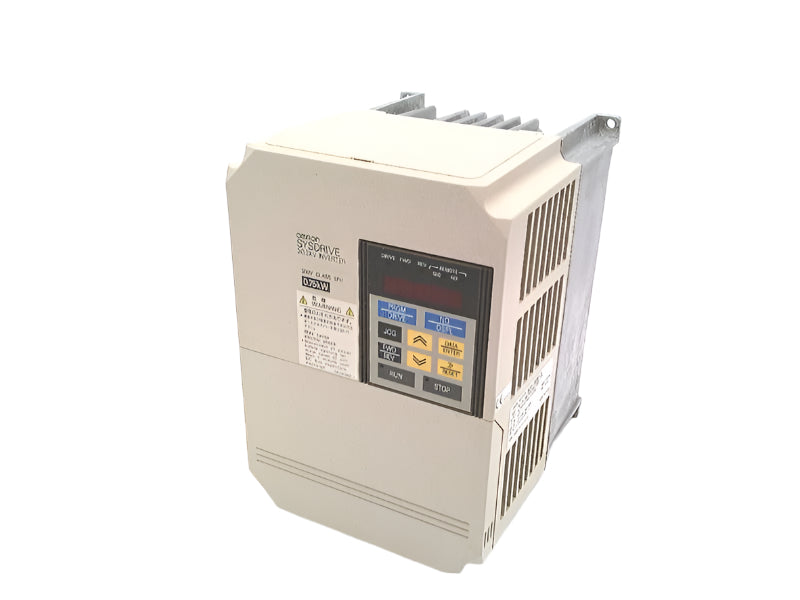

The Omron 3G3XV‑AB007‑CE is a compact, high-performance single-phase drive inverter from the Sysdrive 3G3XV series, optimized for industrial motor control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
3G3XV-AB007-CE |
| Subcategory |
Drives |
| Series |
3G2 |
| Inverter Type |
Variable Frequency Drive (VFD) |
| Input Voltage |
Single-phase 200–240 V AC
|
Output Voltage
|
Three-phase 0–240 V AC |
| Output Current |
6.5 A |
| Frequency Range |
0.1 Hz to 400 Hz |
| Motor Capacity |
0.75 kW (1 HP) |
| Control Method |
V/f (Voltage/Frequency) Control |
| Installation Method |
Panel Mounting |
| Display |
Digital operator panel |
| Operating Temperature |
0°C to +50°C |
| Noise Level |
Low-noise operation |
| Enclosure Type |
Enclosed |
| Cooling Method |
Self-cooling (fan assisted) |
| Weight |
6.00 lbs |
Information About 3G3XV-AB007-CE
The 3G3XV-AB007-CE is a compact and reliable drive inverter from Omron’s Sysdrive 3G3XV series, designed for precise motor speed control in industrial applications. This inverter operates with a single-phase input and delivers a three-phase output, supporting motors up to 0.75 kW (1 HP). Built with robust protective features and a space-saving enclosure, the 3G3XV-AB007-CE ensures efficient performance and ease of installation. Although discontinued, it remains available through select distributors as a dependable solution for legacy systems.
Key Features:
- Single-Phase Input, Three-Phase Output: Ideal for converting single-phase power into controlled three-phase output for small industrial motors.
- Motor Capacity: Supports motors up to 0.75 kW (1 HP), suitable for compact machines and equipment.
- Frequency Control Range: Adjustable from 0.1 Hz to 400 Hz for precise speed regulation.
- Voltage/Frequency (V/f) Control: Ensures stable performance and compatibility with various motor types.
- Output Current: Delivers up to 6.5 A output current, supporting robust motor drive needs.
- Overload and Fault Protections: Equipped with overcurrent, thermal overload, short-circuit, and undervoltage protections for enhanced operational safety.
- Digital Operator Panel: Includes a detachable operator panel for simple setup and real-time monitoring.
- Enclosed Compact Design: Space-efficient enclosure supports easy panel mounting in restricted spaces.
- Low-Noise Operation: Designed for quiet running, suitable for noise-sensitive environments.
- Weight and Handling: Approximately 2.7 kg (6 lbs), facilitating easy handling and installation.
The 3G3XV-AB007-CE offers reliable frequency control and compact versatility for small-scale industrial motor applications. While officially discontinued, it remains a solid choice for equipment upgrades, replacements, or retrofits where compact form and operational reliability are essential.
