Description

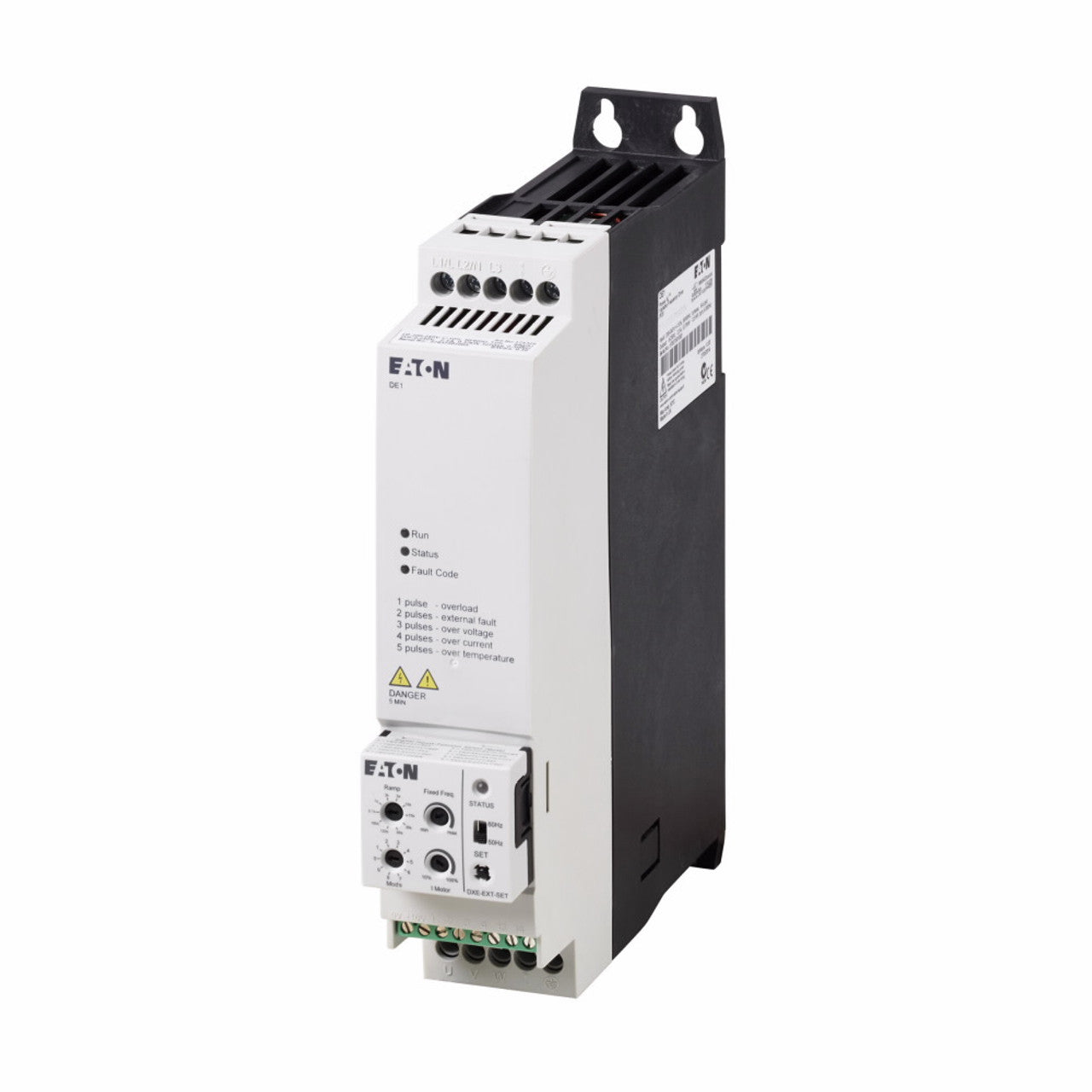

The DE1‑129D6NN‑N20N is part of Eaton’s PowerXL DE1 variable speed starter series—compact, intuitive devices that blend the functionality of a motor starter with variable frequency drive (VFD) capabilities.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
|
| Part Number |
DE1-129D6NN-N20N |
| Subcategory |
Starters |
| Serial Interface |
Modbus
|
| User Interface |
RS-485 |
| Enclosure |
IP20
|
| Frame |
1 |
| Series |
PowerXL DE1 |
| Input Voltage (AC) |
200 – 240 VAC |
| Output Voltage (AC) |
200 – 240 VAC |
| Input Phase |
Single Phase |
| Output Phase |
Three Phase |
| Rated Current |
9.6 Amps |
| Horsepower Rating |
3 HP |
| Enclosure Rating |
IP20 (Open Type) |
| Mounting Style |
DIN Rail / Panel Mount |
| Length/Depth |
9.09 in |
| Height |
3.54 in |
| Width |
6.65 in |
| Weight |
3.7 lbs |
Information About DE1-129D6NN-N20N
The DE1‑129D6NN‑N20N is part of Eaton’s PowerXL DE1 series of variable speed starters—compact, user-friendly devices that bridge the gap between conventional motor starters and variable frequency drives. Designed for single-phase 230 VAC input and three-phase 230 VAC output, this 3 HP (9.6 A) starter offers reliable speed control, integrated motor protection, and built-in Modbus RTU communication. With its IP20 open-type enclosure and support for SmartWire‑DT connectivity, the DE1‑129D6NN‑N20N is ideal for OEMs, panel builders, and automation systems requiring quick setup and flexible integration.
Key Features:
- Integrated Modbus RTU Communication: Equipped with RS‑485 for direct monitoring, diagnostics, and remote control via Modbus protocol.
- Single-Phase to Three-Phase Conversion: Accepts 200–240 VAC single-phase input and delivers three-phase output for 3 HP (2.2 kW) motors.
- 9.6 A Motor Capacity: Rated for 9.6 A continuous current, with 150% overload capacity for 60 seconds, ideal for demanding motor loads.
- IP20 Enclosure Rating: Open-type construction allows installation inside control cabinets while maintaining compact dimensions.
- SmartWire-DT Ready: Seamlessly integrates into Eaton’s SmartWire-DT system, reducing wiring complexity in distributed control panels.
- Flexible Mounting: DIN-rail or panel mountable for quick installation in standard enclosures and automation cabinets.
- Quick Configuration: Supports tool-free setup via DIP switches or software-based configuration through Eaton drivesConnect.
- Compact Design: Frame size FS2 measures approximately 169 × 90 × 230 mm, offering a space-efficient solution for tight panel layouts.
- Global Compliance: Meets international standards including IEC 61800-2, IEC 61800-3, UL 508C, CSA C22.2, CE, RoHS, and RCM.
- Reliable Motor Protection: Built-in thermal overload, under/overvoltage, stall, and short-circuit protections to safeguard motor operation.
The Eaton DE1‑129D6NN‑N20N delivers dependable motor control with integrated communication and streamlined installation—making it an ideal solution for cost-effective speed control and protection in modern industrial and commercial automation systems.
