Description

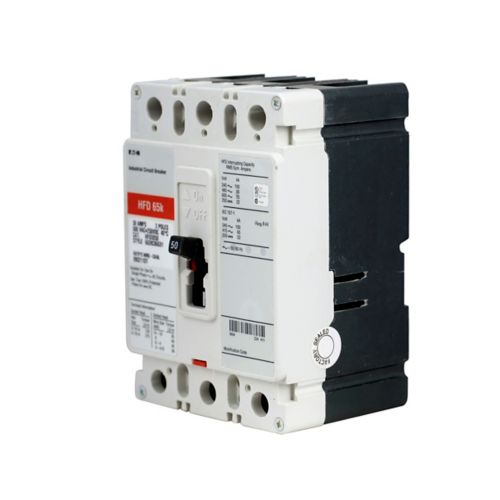

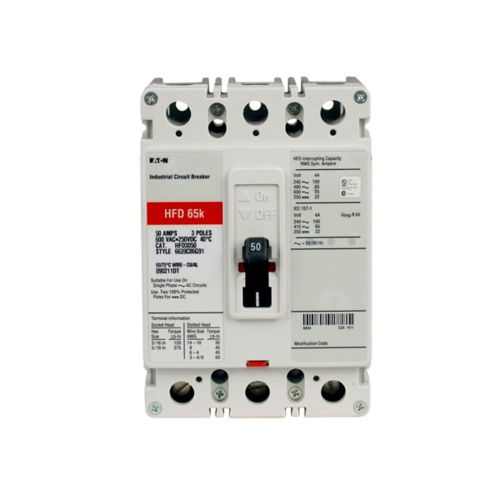

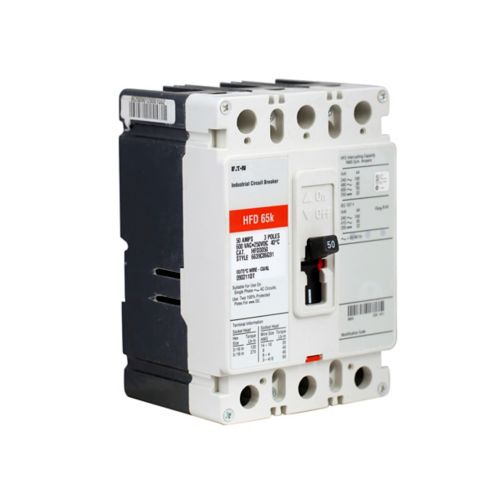

The Eaton HFD3200BP10 is a Series C, F‑frame, complete molded-case circuit breaker (MCCB) designed for three-phase power protection in industrial and commercial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
|
| Part Number |
HFD3200BP10 |
| Subcategory |
Molded Case Circuit Breaker |
| Amperage Rating |
200 A
|
| Voltage Rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit Breaker Type |
HFD
|
| Series |
Series C
|
| Terminals |
Load side
|
| Frame |
F
|
| Frequency Rating |
50 to 60 Hz
|
| Interrupt Rating |
65 kAIC at 480 Vac
100 kAIC at 240 Vac |
| Number of Poles |
Three-pole |
| Breaker Line Side Term Method |
Busbar (No Lugs) |
| Breaker Load Side Term Method |
Lugs |
| Height |
4.13 in |
| Length |
3.38 in |
| Width |
4.13 in |
| Weight |
3 lbs |
Information About HFD3200BP10
The HFD3200BP10 is part of Eaton’s Series C F-frame molded-case circuit breakers, built to deliver high-performance circuit protection in industrial and commercial power distribution systems. Rated at 200 A, this 3-pole breaker offers a 65 kA interrupting capacity at 480 VAC, and is suitable for systems up to 600 VAC or 250 VDC. Its fixed thermal-magnetic trip unit ensures consistent, maintenance-free protection, while bolt-on mounting and compact dimensions make it easy to integrate into panelboards and switchgear. Designed for reliability and safety, the HFD3200BP10 meets UL standards and supports a wide range of Eaton accessories.
Key Features:
- 200A Rating: Fixed current protection suitable for branch and feeder circuits.
- High Interrupt Capacity: Rated for 65 kAIC at 480 VAC and 100 kAIC at 240 VAC—ideal for high-fault environments.
- Wide Voltage Support: Operates on 600 VAC or 250 VDC systems, providing versatile deployment options.
- Thermal-Magnetic Trip: Integrated fixed trip mechanism for overload and short-circuit protection without adjustment.
- Compact Dimensions: 6.00″ H × 4.13″ W × 3.38″ D with bolt-on mounting—fits standard industrial enclosures.
- Load-Side Lugs: Cable in/cable out termination for secure, straightforward wiring.
- Blow-Open Contacts: Patented contact mechanism ensures rapid arc interruption and long operating life.
- Accessory Compatibility: Supports auxiliary contacts, shunt trips, and other Series C modules for system expansion.
- UL Certified: Meets UL and CSA safety standards for molded-case circuit protection.
The Eaton HFD3200BP10 is a robust, high-capacity breaker designed for demanding power distribution systems, offering the protection, performance, and flexibility required in critical electrical infrastructure.
