Description

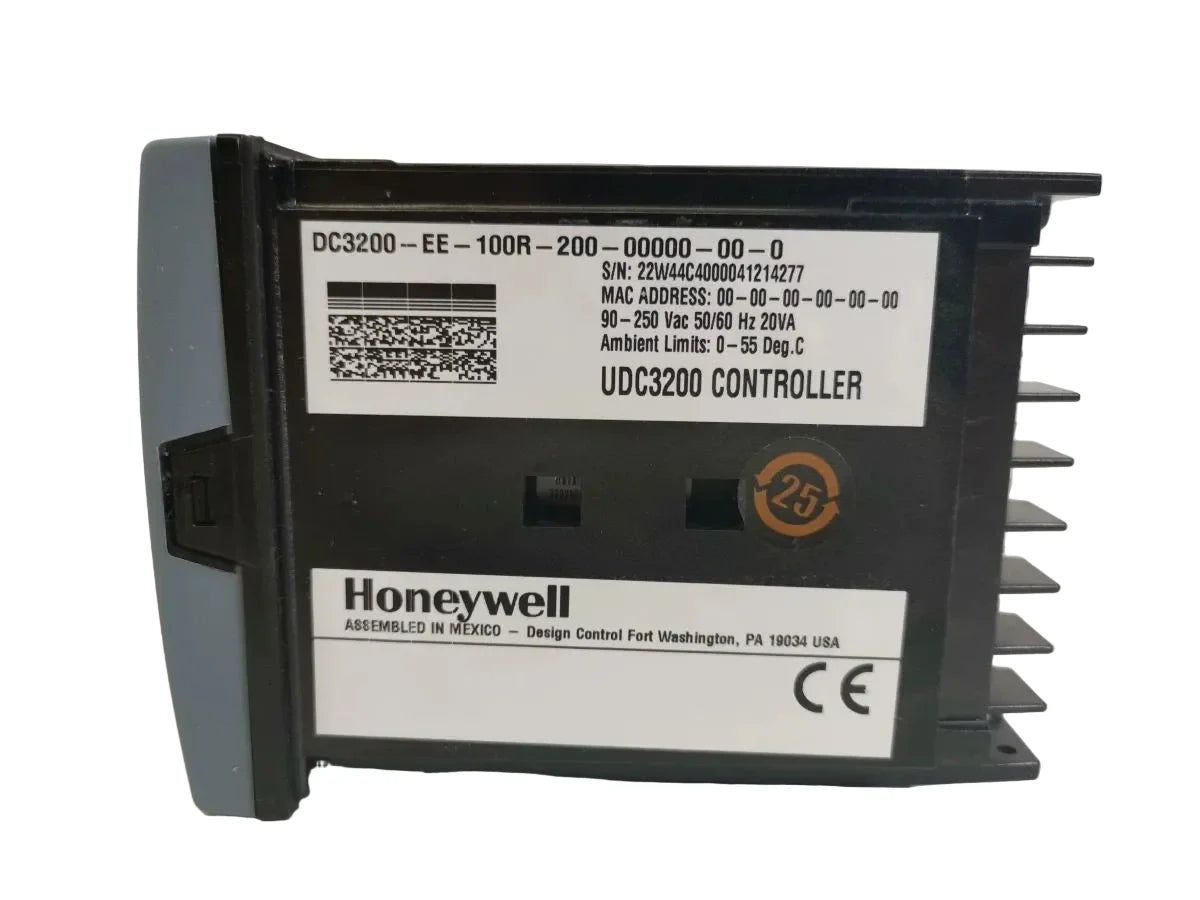

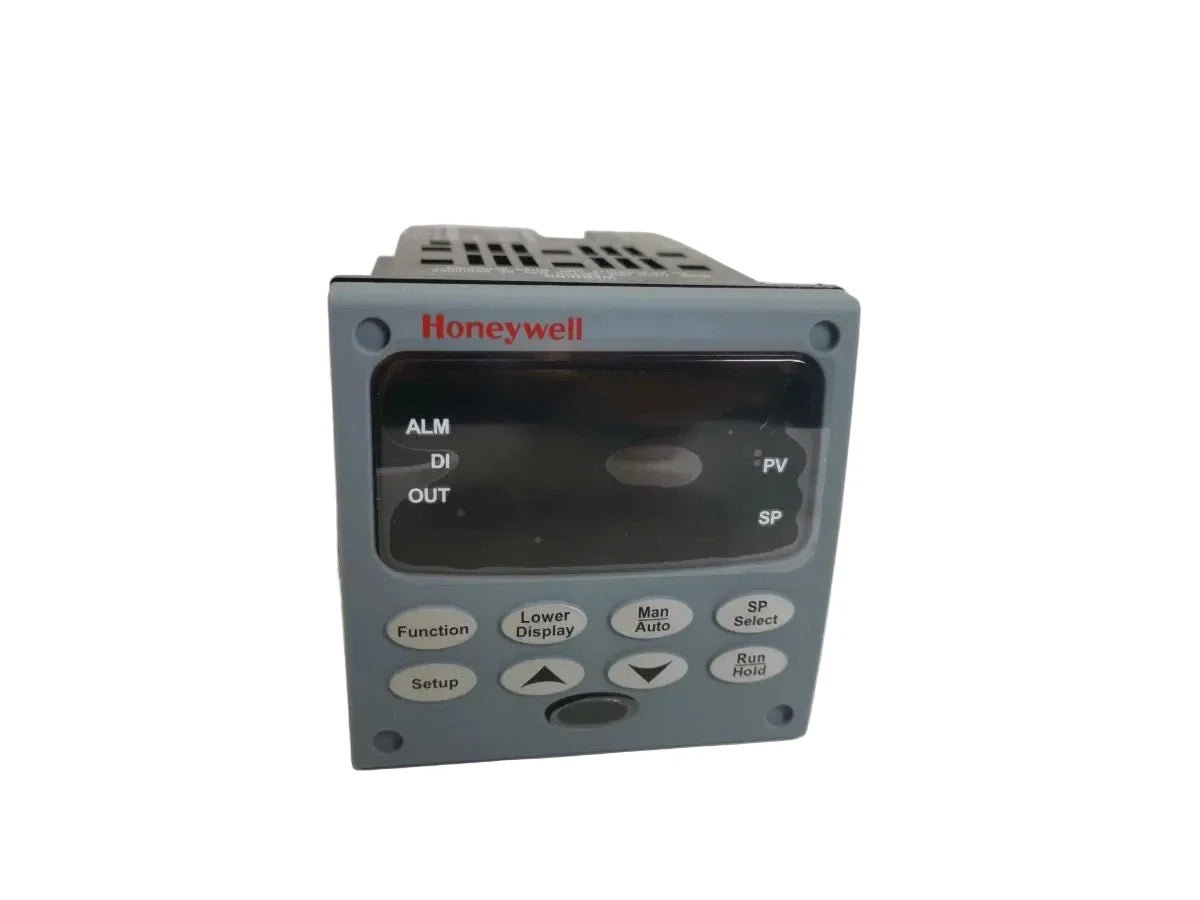

The Honeywell DC3200-EE-100R-200-00000-00-0 is a UDC3200 universal digital controller designed for precise monitoring and control of industrial temperature and process variables. It supports multiple input types and provides reliable relay-based outputs within a compact 1/4 DIN enclosure.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Industrial Controls |
| Part Number |
DC3200-EE-100R-200-00000-00-0 |
| Subcategory |
Digital Process Controllers |
| Controller Series |
UDC3200 |
| Form Factor |
1/4 DIN |
| Supply Voltage |
90–250 VAC |
| Input Types |
TC, RTD, mV, 0–5 V, 0/4–20 mA |
| Number of Inputs |
1 universal analog input |
| Output 1 |
Relay output |
| Output 2 |
Relay output / Alarm |
| Auxiliary I/O |
Auxiliary output / Digital input |
| Interface |
Infrared configuration port |
| Control Type |
Universal digital control |
| Compliance |
CE |
| Weight |
3.00 lbs |
Information About DC3200-EE-100R-200-00000-00-0
The DC3200-EE-100R-200-00000-00-0 is a Honeywell UDC3200 Series universal digital controller developed for flexible industrial process control applications. It accepts a wide range of sensor inputs, including thermocouples, RTDs, millivolt, voltage, and current signals, allowing integration into diverse control systems. The controller operates from a wide-range AC power supply and includes relay outputs for control and alarm functions. Its 1/4 DIN format and infrared configuration capability support straightforward panel installation and efficient setup.
Key Features
- Universal Input Capability: Supports TC, RTD, mV, voltage, and current signals to accommodate multiple sensor types in one controller.
- Dual Relay Outputs: Provides one control relay and a second configurable relay for alarm or auxiliary control functions.
- Wide Power Supply Range: Operates from 90 to 250 VAC to simplify integration into global electrical systems.
- Infrared Configuration Interface: Allows non-intrusive setup and parameter adjustment using infrared communication.
- Compact 1/4 DIN Design: Enables efficient panel space utilization in control cabinets and operator consoles.
- Integrated Auxiliary I/O: Includes auxiliary output and digital input for expanded control and signaling flexibility.
The DC3200-EE-100R-200-00000-00-0 delivers the reliability and precision required for stable temperature and process regulation in industrial control environments.
