Description

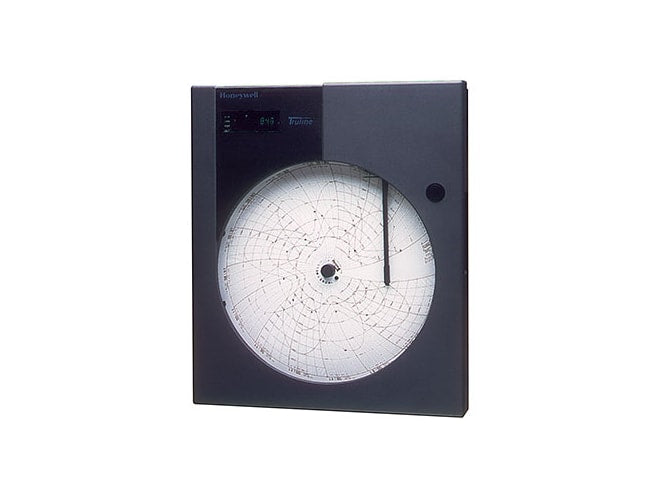

The Honeywell DR45AT-1000-00-000-0-000P00-0 is a circular chart recorder designed for accurate recording of process variables in industrial control systems. This Truline-series recorder supports multiple input types, including thermocouples, RTDs, voltage, and current signals. It is used in applications requiring continuous, reliable visual documentation of process conditions.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Honeywell
Category	Data Control System
Part Number	DR45AT-1000-00-000-0-000P00-0
Subcategory	Chart Recorder
Series	Truline DR45
Recorder Type	Circular chart recorder
Chart Size	12-inch circular
Input Types	Thermocouple, RTD, 0–5 VDC, 4–20 mA
Input Configuration	Field selectable
Mounting Type	Panel mount
Recording Method	Continuous analog recording
Application	Process monitoring and documentation
Weight	12.00 lbs





Information About DR45AT-1000-00-000-0-000P00-0

The DR45AT-1000-00-000-0-000P00-0 is part of Honeywell’s Truline DR45 series of circular chart recorders developed for precision data recording. It features a robust panel-mounted enclosure with a 12-inch circular chart format for clear trend visualization. The recorder is compatible with a wide range of field-selectable input signals, allowing integration into diverse process control environments. Typical usage includes industrial plants, laboratories, and utilities where permanent process records and compliance documentation are required.

Key Features:

• Truline DR45 series: Designed for industrial-grade circular chart recording applications.
• 12-inch circular chart: Provides clear, easy-to-read process trend documentation.
• Multi-signal input support: Accepts thermocouple, RTD, 0–5 VDC, and 4–20 mA inputs.
• Field-selectable input configuration: Allows flexible setup without hardware changes.
• Panel-mount design: Enables secure installation in control cabinets and panels.
• Continuous data recording: Produces permanent visual records of process conditions.
• Industrial construction: Built for reliable operation in demanding environments.

The DR45AT-1000-00-000-0-000P00-0 delivers the reliability and precision required for continuous process monitoring and data recording in industrial control systems.
