Description

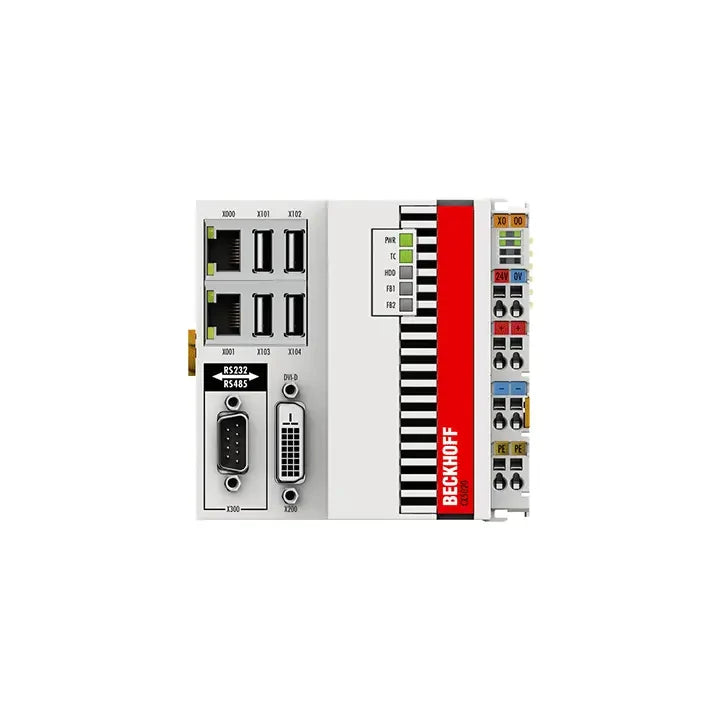

The Beckhoff CX5010-0110 is a compact DIN rail-mounted Embedded PC designed for flexible control tasks in industrial automation. With an Intel Atom® Z510 processor and integrated 512 MB RAM, it ensures reliable performance while maintaining a small footprint.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Embedded PC |
| Part Number |
CX5010-0110 |
| Processor |
Intel Atom® Z510, 1.1 GHz |
| Number of Cores |
1 |
| Flash Memory |
128 MB CompactFlash® card (expandable) |
| Main Memory |
512 MB RAM (not expandable) |
| UPS |
Integrated 1-second UPS (1 MB CF storage) |
| Interfaces |
2 × RJ45 (10/100/1000 Mbit/s), 4 × USB 2.0, 1 × DVI-D |
| Optional Interface |
Yes |
| Cooling |
Passive |
| Operating System |
Windows Embedded CE 6, Windows Embedded Standard 2009 |
| Control Software |
TwinCAT 2 PLC runtime, TwinCAT 3 runtime (XAR) |
| I/O Connection |
E-bus or K-bus, auto recognition |
| Power Supply |
24 V DC (-15%/+20%) |
| Max. Power Consumption |
12 W |
| Current Supply E-bus/K-bus |
2 A |
| Max. Power Consumption E/K Bus |
10 W (5 V/max. 2 A) |
| Diagnostics |
LEDs: Power, TC status, Flash access, Bus status |
| Clock |
Battery-backed, replaceable |
| Operating Temperature |
-25…+60°C |
| Storage Temperature |
-40…+85°C |
| Relative Humidity |
95%, no condensation |
| Weight |
approx. 575 g (1.27 lbs) |
Information About CX5010-0110
The CX5010-0110 is part of Beckhoff’s CX Embedded PC Series, combining PC-based control and PLC functions in a modular, scalable platform. It operates with a 1.1 GHz Intel Atom® processor and supports TwinCAT 2 and TwinCAT 3 runtimes for versatile automation tasks. The system integrates a CompactFlash® card slot for storage, two Ethernet ports with Gigabit capability, four USB interfaces, and passive cooling for silent, efficient operation. Designed for robustness, it provides flexible I/O connectivity through E-bus or K-bus systems, with integrated UPS for data security, and runs on Windows Embedded CE 6 or Windows Embedded Standard 2009.
Key Features:
-
Intel Atom® Z510 Processor: 1.1 GHz single-core CPU ensures reliable performance for automation applications with low power consumption.
-
Integrated Memory: 512 MB internal RAM (non-expandable) combined with 128 MB CompactFlash® card storage, expandable for data needs.
-
Wide Connectivity: Equipped with 2 × RJ45 Gigabit Ethernet, 4 × USB 2.0, DVI-D interface, and optional expansion slot for flexibility.
-
Integrated UPS: 1-second UPS with 1 MB storage on CompactFlash® provides enhanced data protection during power failures.
-
Flexible I/O Support: Compatible with Beckhoff’s modular E-bus and K-bus systems for seamless expansion and connectivity.
-
Energy-Efficient Design: Passive cooling and 12 W max. power consumption allow for quiet, efficient operation in industrial environments.
-
System Reliability: Includes battery-backed real-time clock, diagnostic LEDs, and wide OS support (Windows CE 6, Windows Embedded Standard 2009).
-
Compact Industrial Form Factor: DIN rail mounting with a lightweight 575 g design ensures easy installation in control cabinets.
-
Operational Flexibility: Supports TwinCAT 2 PLC runtime and TwinCAT 3 runtime (XAR), enabling scalable automation solutions.
-
Durability: Operates at -25…+60°C with strong resistance to industrial environmental conditions.
The CX5010-0110 delivers the reliability and performance required for compact industrial control and automation environments.
