Description

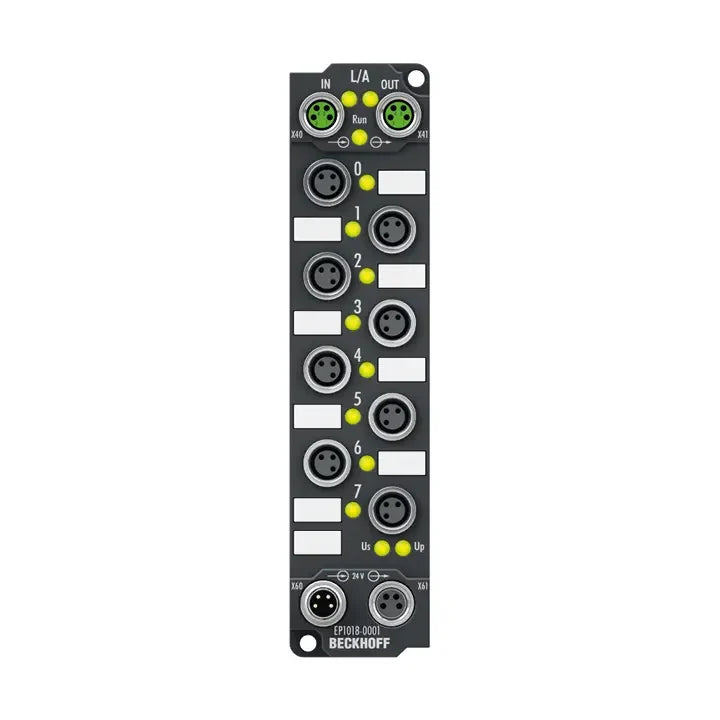

The Beckhoff EP1018-0001 is an EtherCAT Box module with 8 digital inputs for 24 V DC signal processing. Designed with M8 screw-type connectors and a 10 µs input filter, it ensures fast and reliable data acquisition in harsh industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial I/O Modules |
| Part Number |
EP1018-0001 |
| Subcategory |
EtherCAT Box Modules |
| Protocol |
EtherCAT |
| Bus Interface |
2 × M8 socket, 4-pin, a-coded, shielded |
| Specification Compliance |
EN 61131-2, type 1/3 |
| Number of Inputs |
8 |
| Input Connections |
M8 × 1, 3-pin, a-coded |
| Nominal Input Voltage |
24 V DC (-15% / +20%) |
| Input Filter |
10 µs |
| “0” Signal Voltage |
-3…+5 V (EN 61131-2, type 3) |
| “1” Signal Voltage |
11…30 V (EN 61131-2, type 3) |
| Input Current |
Typical 3 mA (EN 61131-2, type 3) |
| Power Supply Connections |
Feed: 1 × M8 male socket, 4-pin; Downstream: 1 × M8 female socket, 4-pin |
| Sensor Supply |
From control voltage, max. 0.5 A, short-circuit proof |
| Current Consumption from US |
120 mA |
| Electrical Isolation |
500 V |
| Protection Class |
IP65/66/67 |
| Operating Temperature |
-25…+60 °C |
| Storage Temperature |
-40…+85 °C |
| Weight |
Approx. 165 g |
Information About EP1018-0001
The EP1018-0001 is part of Beckhoff’s EtherCAT Box I/O family, designed for decentralized signal acquisition directly in the field. This module provides 8 digital inputs for 24 V DC signals with a fast 10 µs input filter, ensuring high-speed detection of control signals. Equipped with robust M8 screw-type connections and galvanic isolation up to 500 V, it guarantees safe and stable performance even in electrically noisy environments. With its compact and fully sealed housing rated IP65/66/67, the unit is built for reliable operation in demanding industrial automation applications.
Key Features:
-
8 Digital Inputs: Provides eight channels for reliable 24 V DC signal acquisition in distributed control systems.
-
Fast 10 µs Input Filter: Ensures rapid response to input signals, supporting high-speed automation processes.
-
EtherCAT Protocol Support: Enables real-time communication with fast synchronization across field devices.
-
Rugged M8 Connections: Uses M8 screw-type input and bus connectors for secure and durable field wiring.
-
High Signal Integrity: Designed to meet EN 61131-2, type 1/3 standards for compatibility and reliability.
-
Wide Voltage Tolerance: Accepts -15% to +20% variations on 24 V DC inputs to withstand unstable supply conditions.
-
IP65/66/67 Protection: Fully sealed housing protects against dust, moisture, and industrial contaminants.
-
Compact and Lightweight: At only 165 g, it is easy to install close to sensors and actuators in distributed systems.
The EP1018-0001 delivers the reliability and precision required for decentralized EtherCAT installations in tough industrial environments.
