Description

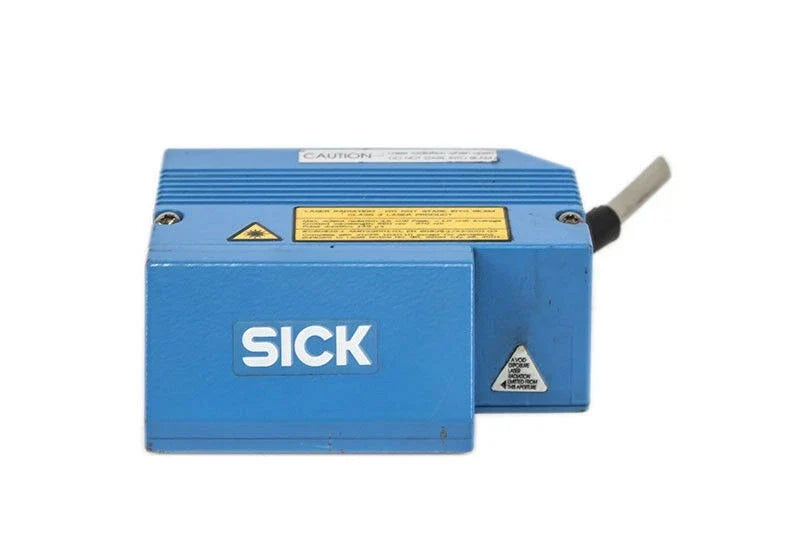

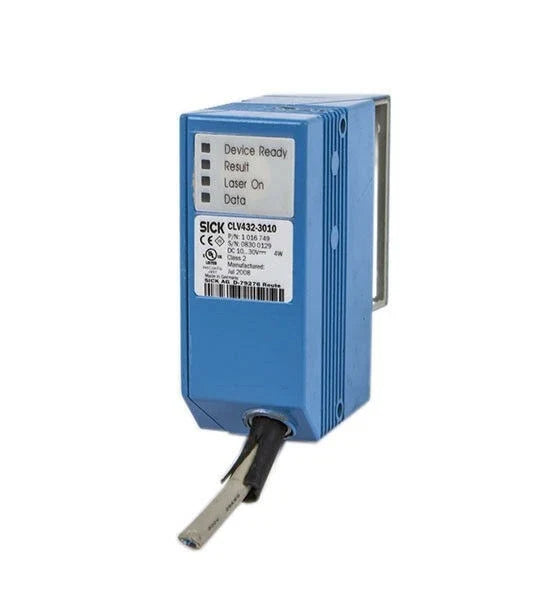

The SICK CLV432-3010 is an industrial bar code scanner designed for close-range raster scanning applications in automated identification systems. It features a right-angle mirror configuration to support compact installation layouts. This scanner is commonly used in material handling, logistics, and production tracking environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Bar Code Equipment |
| Part Number |
CLV432-3010 |
| Subcategory |
Bar Code Scanner Industrial |
| Product Type |
Fixed-mount bar code scanner |
| Series |
CLV4xx |
| Scanning Method |
Raster scan |
| Reading Range |
Close range |
| Optical Configuration |
Right-angle mirror |
| Communication Interfaces |
RS-232 / RS-422 / RS-485 |
| Host Port |
Program selectable |
| Application Type |
Automated identification |
| Manufacturer Status |
Discontinued by manufacturer |
| Weight |
1.43 lbs |
Information About CLV432-3010
The CLV432-3010 is part of SICK’s CLV4xx series of fixed-mount bar code scanners developed for reliable code reading in industrial automation. It is built with a robust housing suitable for continuous-duty operation on production lines and conveyor systems. The unit supports multiple serial communication standards, including RS-232, RS-422, and RS-485, allowing flexible integration with host controllers. Its program-selectable host port and raster scan technology enable stable decoding of bar codes in close-range applications.
Key Features:
- Raster Scan Technology: Enables consistent bar code reading across varying orientations.
- Close-Range Scanning Design: Optimized for short-distance code detection.
- Right-Angle Mirror Configuration: Allows compact mounting in space-restricted installations.
- CLV4xx Series Platform: Designed for industrial identification and tracking systems.
- Multi-Protocol Serial Communication: Supports RS-232, RS-422, and RS-485 interfaces.
- Program-Selectable Host Port: Provides flexible configuration for different control systems.
- Industrial-Grade Construction: Suitable for continuous operation in automation environments.
The CLV432-3010 delivers the reliability and precision required for industrial bar code scanning and automated identification applications.
