Description

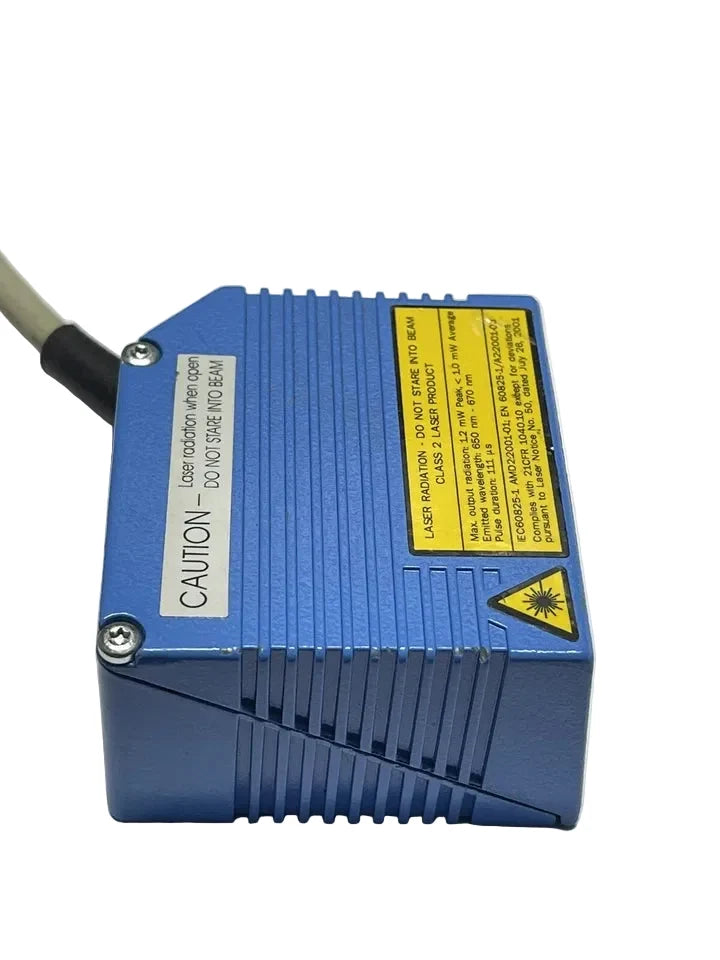

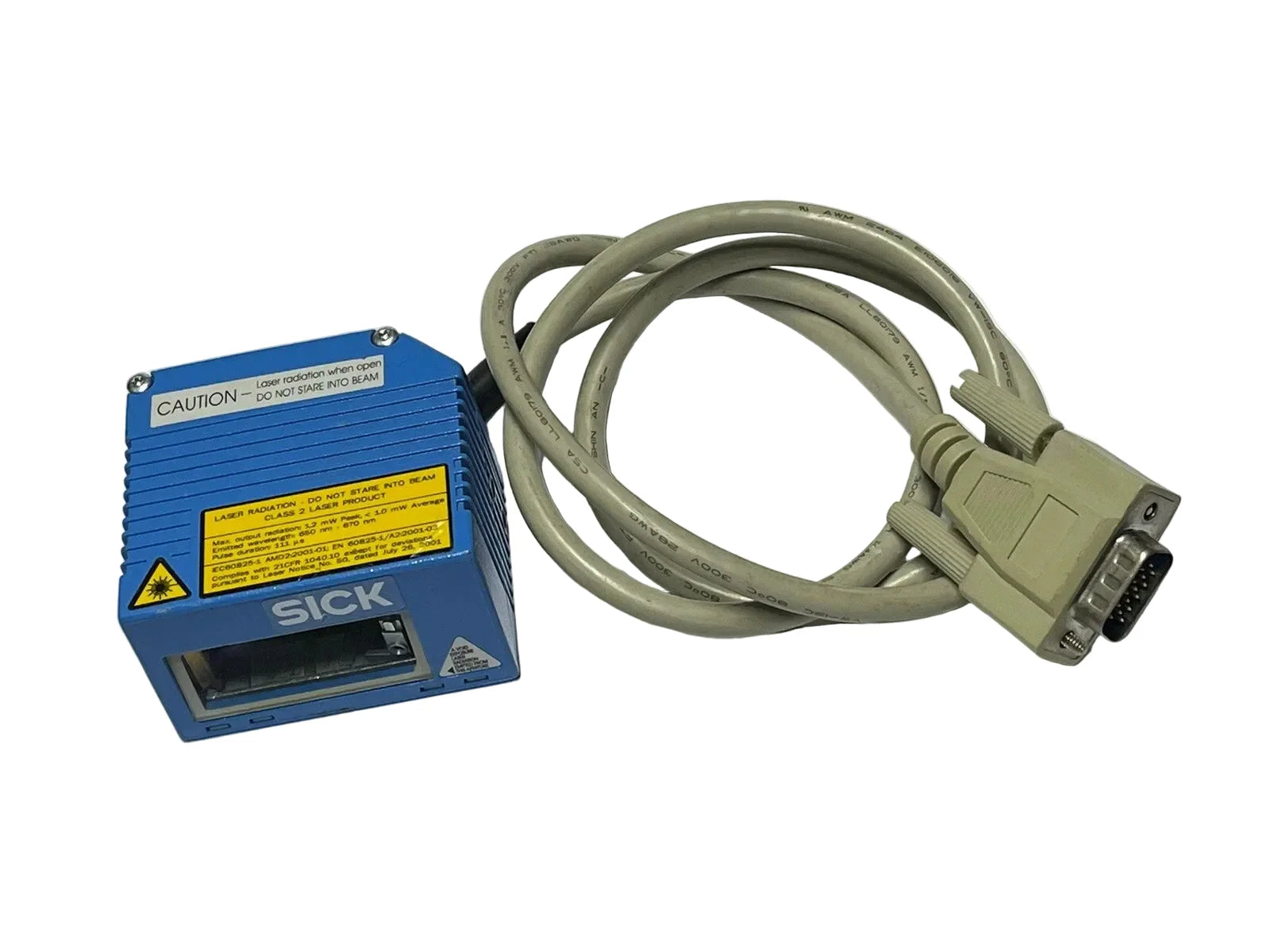

The SICK CLV422-1010 is a fixed mount barcode scanner designed for high-density code reading in industrial automation environments. It uses raster scanning technology with a visible red laser to accurately read small and high-resolution barcodes at close ranges. This scanner is commonly used in electronics manufacturing, packaging, and precision identification applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Industrial Identification |
| Part Number |
CLV422-1010 |
| Subcategory |
Fixed Mount Barcode Scanners |
| Series |
CLV42x |
| Scanner Design |
Raster scanner |
| Reading Field |
Front |
| Optical Focus |
Fixed focus |
| Light Source |
Visible red laser |
| Laser Class |
Class 2 (DIN EN 60825-1) |
| Aperture Angle |
≤ 50° |
| Reading Distance |
55 to 200 mm |
| Scanning Frequency |
400 to 1,200 Hz |
| Code Resolution |
0.15 to 0.5 mm |
| Supply Voltage |
10 to 30 V DC |
| Power Consumption |
3.5 W |
| Interfaces |
Digital I/O, serial interface |
| Electrical Connection |
15-pin D-Sub HD male, 0.9 m cable |
| Enclosure Rating |
IP65 |
| Housing Material |
Die-cast zinc |
| Housing Color |
Light blue (RAL 5012) |
| MTBF |
20,000 hours |
| Dimensions (L × W × H) |
59 × 62.7 × 35.2 mm |
| Operating Temperature |
0 to +40 °C |
| Weight |
250 g |
Information About CLV422-1010
The CLV422-1010 is part of SICK’s CLV42x series of fixed mount barcode scanners engineered for high-density barcode applications. It features a fixed-focus optical system optimized for reading small barcodes with tight module widths. The scanner supports a wide range of common barcode symbologies and integrates into industrial systems via digital I/O and serial interfaces. Its compact die-cast zinc housing and IP65 protection rating ensure reliable operation in demanding industrial environments.
Key Features:
- High-Density Barcode Reading: Optimized for reading small and high-resolution barcodes.
- Raster Scanner Design: Uses multi-line scanning to improve read reliability across orientations.
- Visible Red Laser Source: Class 2 laser provides precise and consistent barcode illumination.
- High Scanning Frequency: Operates from 400 Hz to 1,200 Hz for fast-moving applications.
- Compact Industrial Housing: Die-cast zinc enclosure with IP65 protection.
- Wide Barcode Compatibility: Supports all common 1D barcode symbologies.
- Integrated I/O and Indicators: Includes digital inputs, outputs, LEDs, and acoustic signaling.
The CLV422-1010 delivers the reliability and precision required for high-density barcode identification in industrial automation systems.
