Description

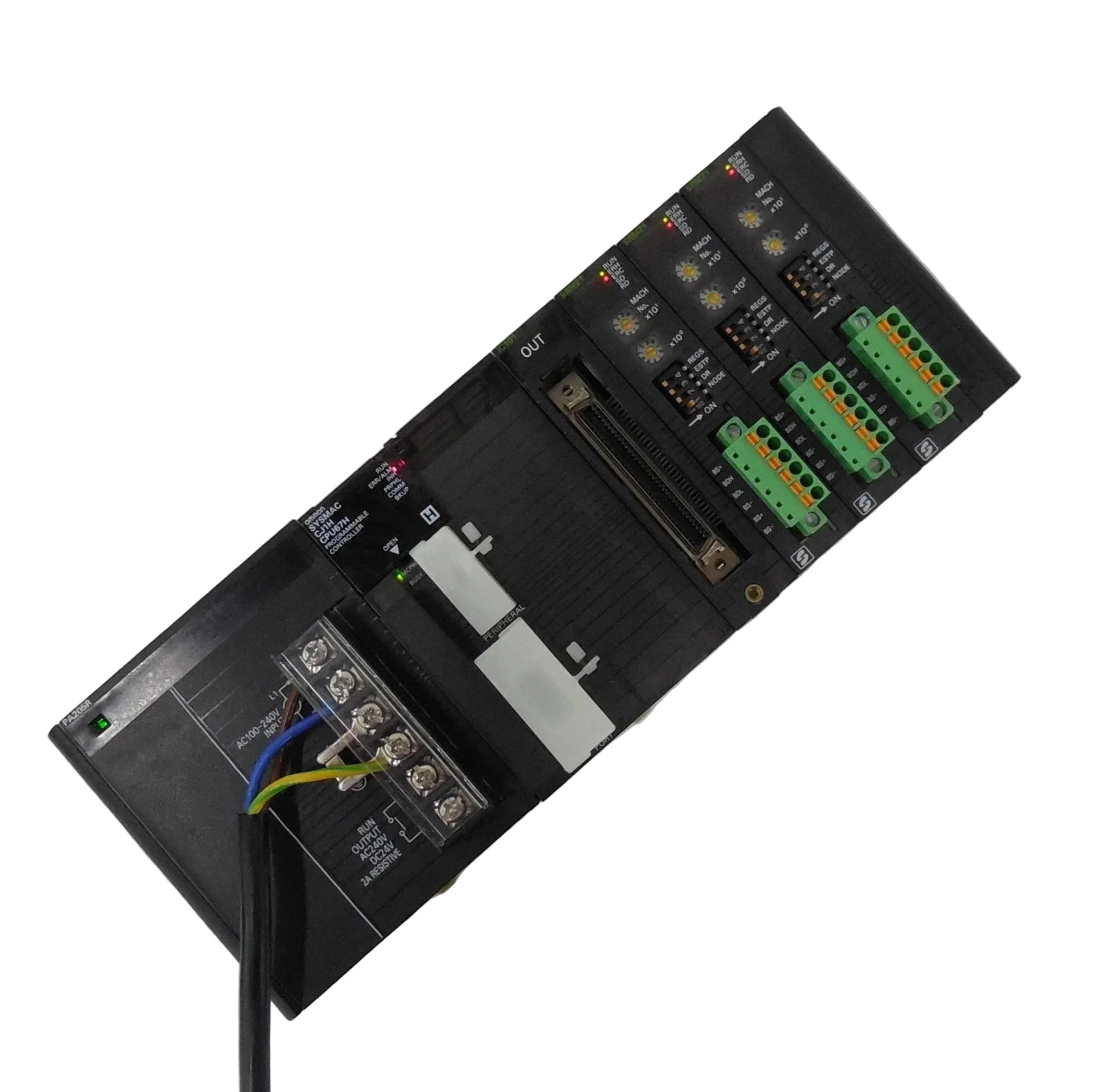

The Omron CJ1H-CPU67H is a high-performance programmable logic controller CPU designed for large-scale industrial automation systems. It offers fast instruction execution, extensive program capacity, and large data memory to support complex control logic. The CJ1H-CPU67H is engineered for reliable operation in advanced control architectures requiring multiple expansion racks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Programmable Logic Controllers |
| Part Number |
CJ1H-CPU67H |
| Subcategory |
PLC CPUs |
| Series |
CJ1H |
| Product Type |
Programmable Logic Controller CPU |
| Program Capacity |
250 Ksteps |
| Data Memory Capacity |
448 Kwords |
| I/O Capacity |
2,560 I/O bits |
| Ladder Instruction Execution Time |
0.02 µs |
| Internal Communication Ports |
1 Peripheral, 1 RS-232C |
| Expansion Rack Capacity |
Up to 3 expansion racks |
| Mounting Option |
DIN Rail |
| Unit Width |
62 mm |
| Power Supply Voltage Group |
5 VDC |
| Current Consumption |
0.99 A |
| Weight |
0.25 lbs (0.11 kg) |
Information About CJ1H-CPU67H
The CJ1H-CPU67H is part of Omron’s CJ1H series, developed as an advanced CPU unit for applications with high memory and processing demands. It features a large program and data memory structure, enabling complex ladder logic and extensive data handling. The controller supports multiple expansion racks and a high I/O capacity, making it suitable for scalable automation systems. Integrated communication ports allow direct connection to programming tools and external devices without additional interface modules.
Key Features:
- High-Speed Processing: Executes ladder instructions at 0.02 µs for responsive control performance.
- Large Program Capacity: Supports up to 250 Ksteps for complex automation logic.
- Extensive Data Memory: Provides 448 Kwords of data memory across DM and EM banks.
- High I/O Capacity: Supports up to 2,560 I/O bits for large-scale control systems.
- Expansion Rack Support: Accommodates up to three expansion racks for system scalability.
- Integrated Communication Ports: Includes peripheral and RS-232C ports for programming and device communication.
- DIN Rail Mounting: Designed for secure and efficient installation in control panels.
The CJ1H-CPU67H delivers the reliability and precision required for large-scale industrial automation and control applications.
