Description

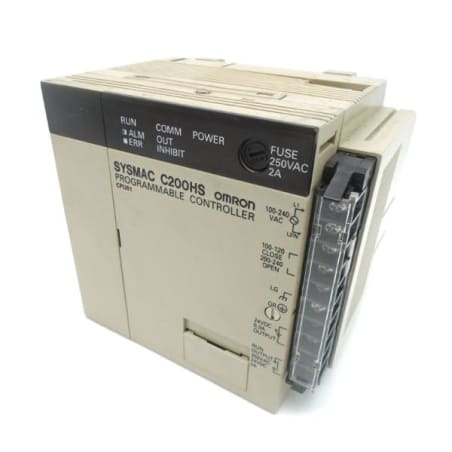

The Omron C200HS-CPU01 is a standard CPU module for SYSMAC C200HS systems, offering 16K RAM, 320 I/O support, and dual-range AC power input. Designed for ladder logic programming, it ensures reliable control with 0.75 µs instruction execution and robust data integrity features.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLC & PAC Control Systems |
| Part Number |
C200HS-CPU01 |
| Subcategory |
CPU Modules |
| Series |
C200H |
| Power Input |
100–120 / 200–240 VAC, 50/60 Hz |
| Power Source |
Internal 5 VDC logic power |
| Power Consumption |
100 VA |
| RAM Capacity |
16K |
| User Program Memory |
3.2 KB (~3,200 steps) |
| Data Memory |
2,000 words (DM) |
| Execution Time |
0.75 µs per basic instruction |
| Programming Language |
Ladder Diagram |
| Communication Ports |
RS-232C, 1 peripheral port |
| I/O Capability |
Up to 320 I/O points |
| Timer/Counter Support |
128 timers and counters |
| Expansion Compatibility |
Supports 1 expansion rack |
| I/O Module Slots |
Up to 10 |
| Error Detection |
Parity and BCC |
| Operating Temperature |
0°C to 55°C |
| Weight |
2.82 lb (1.28 kg) |
Information About C200HS-CPU01
The C200HS-CPU01 belongs to Omron’s C200H series and serves as the core CPU unit in modular programmable logic controller configurations. It supports a user program memory of 3.2 KB (approx. 3,200 steps) and 2,000 words of DM data memory, while accommodating up to 10 I/O modules and a single expansion rack. It offers RS-232C communication for device interfacing and includes a peripheral port for system configuration or monitoring. With a fast instruction cycle time of 0.75 µs and built-in parity/BCC checks, the unit ensures both responsiveness and operational reliability.
Key Features:
-
Dual-Voltage AC Input: Operates on 100–120 VAC or 200–240 VAC at 50/60 Hz for flexible deployment.
-
16K RAM with 3.2KB User Program: Provides storage for medium-scale ladder logic applications and user data.
-
High-Speed Execution: Achieves instruction cycle times as low as 0.75 microseconds for responsive system control.
-
320 I/O Point Capacity: Supports control across a variety of devices through up to 10 I/O module slots.
-
RS-232C and Peripheral Ports: Enables serial communication and peripheral connection for system management.
-
Data Integrity Mechanisms: Includes parity and BCC checks to verify communication accuracy and reliability.
-
Environmental Resilience: Operates reliably from 0°C to 55°C in industrial environments.
-
Ladder Diagram Programming: Compatible with industry-standard ladder logic for intuitive configuration.
The C200HS-CPU01 delivers the reliability and precision required for mid-range modular PLC automation systems in industrial environments.
