Description

The Omron CIMR-J7AZ20P4 is a compact inverter drive designed for controlling low-power three-phase motors. With a 0.55 kW output and 200 VAC input, it ensures stable performance in panel-mounted industrial systems.

Technical Specifications

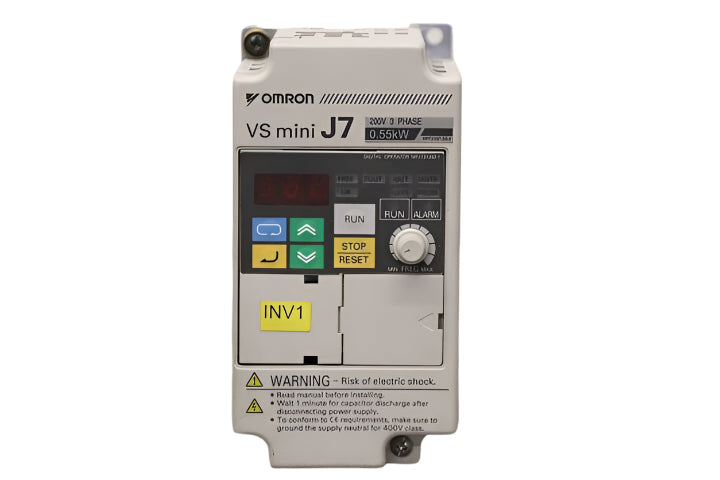

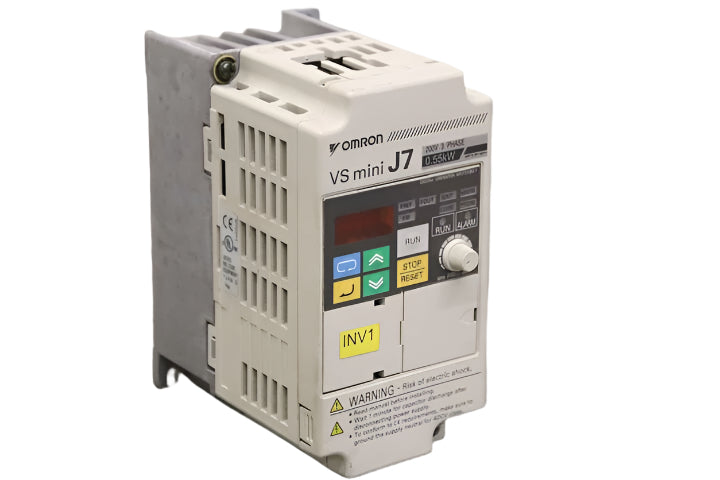

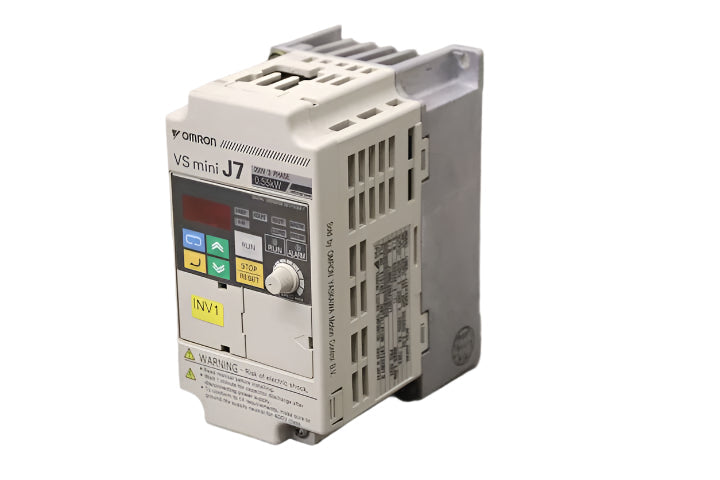

Information About CIMR-J7AZ20P4

The CIMR-J7AZ20P4 is part of Omron’s Varispeed J7 series, developed for applications that demand essential motor control in limited space. This model features a compact housing, optimized for panel mounting, and supports 3-phase 200 VAC operation. It is ideally suited for light industrial machinery such as conveyors, pumps, and fans. With its 0.55 kW power rating and 3 A output current, it offers a good balance between performance and energy efficiency. The IP20 protection rating ensures basic safeguarding when installed in enclosed environments. Built for simplicity and reliability, the drive delivers consistent operation with minimal configuration.

Key Features:

• Rated Output Power – 0.55 kW: Supports small motor loads with accurate speed and torque control in everyday systems.
• Input Voltage – 200 VAC 3-Phase: Compatible with standard industrial three-phase power supply configurations.
• Output Current – 3 A: Maintains reliable current delivery for stable and efficient motor performance.
• Panel Mounting Configuration: Simplifies installation within control enclosures, saving space in compact panels.
• IP20 Protection Rating: Provides basic protection from solid objects in clean, closed installations.
• Compact Form Factor: Enables use in tight spaces without sacrificing core drive functionality.

The CIMR-J7AZ20P4 ensures stable motor control in compact installations. It offers a practical mix of performance, protection, and ease of use.
