Description

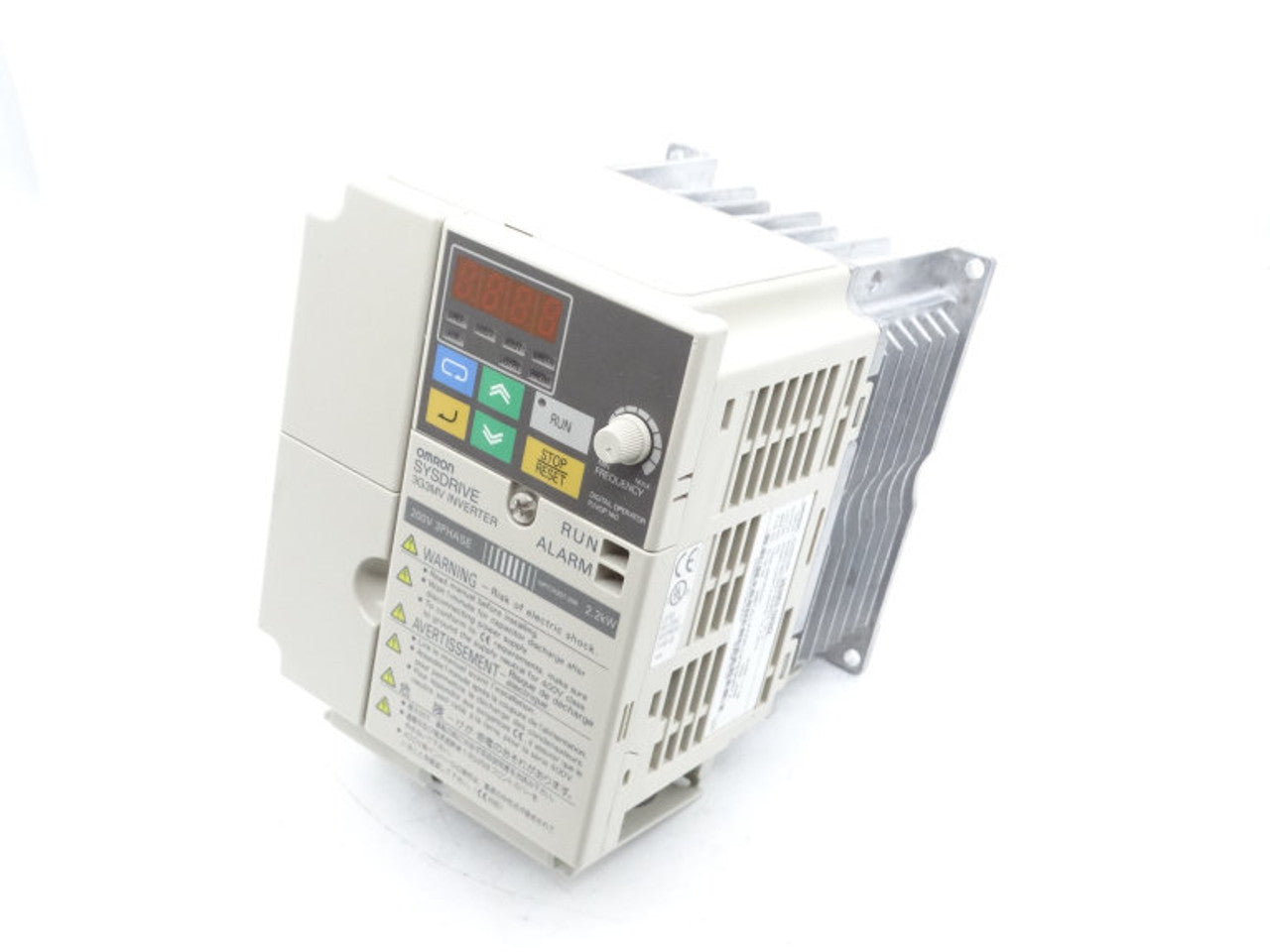

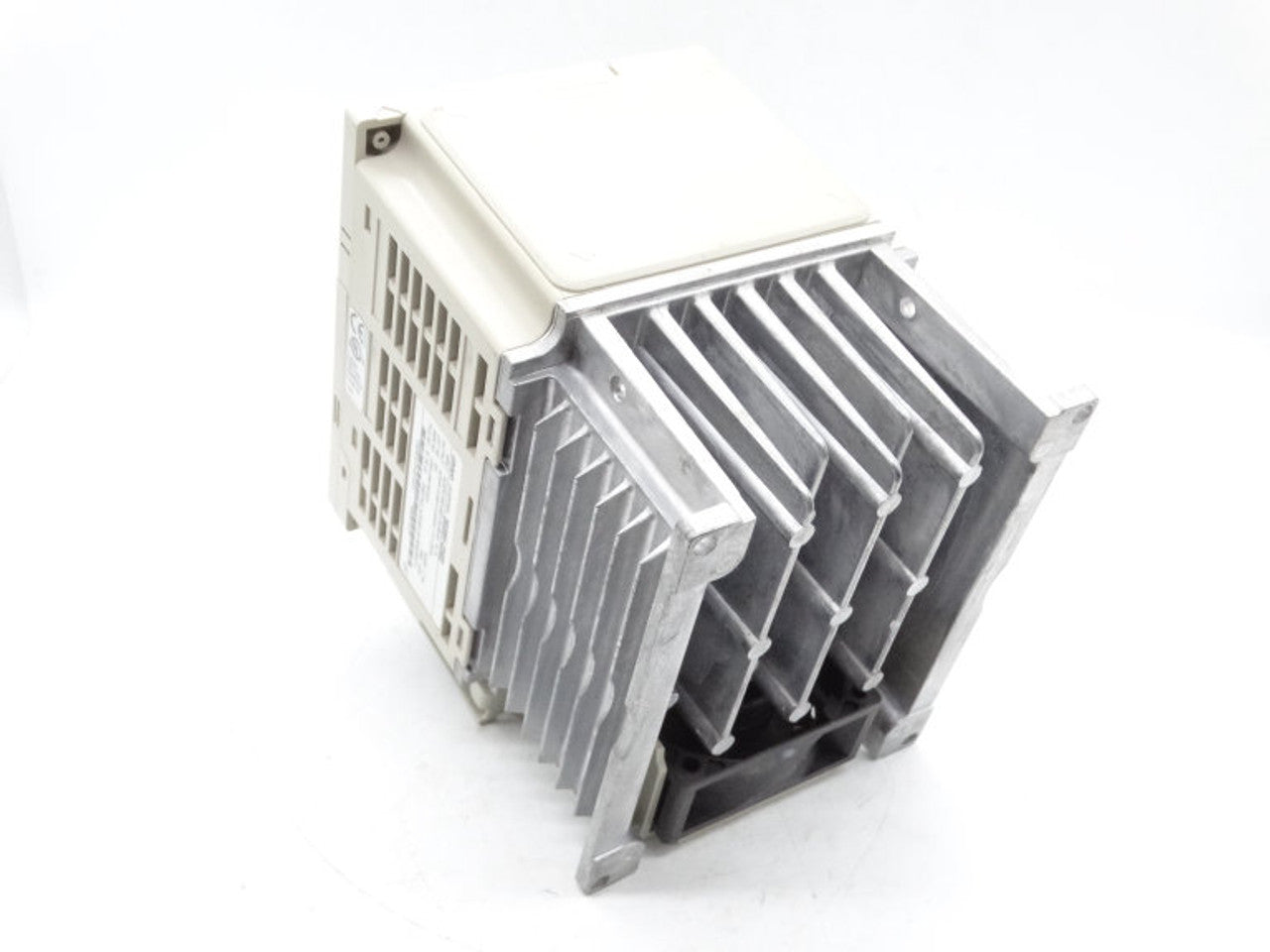

The Omron 3G3MV-C2022 is an AC inverter drive designed to provide efficient speed control for three-phase induction motors. Operating on a 230 VAC supply with a 3 HP (2.2 kW) power rating, it offers reliable variable frequency performance for industrial automation, process control, and machinery applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Motor Drives |
| Part Number |
3G3MV-C2022 |
| Subcategory |
AC Inverter Drive |
| Series |
3G3MV Series |
| Drive Type |
Variable Frequency Drive (VFD) |
| Input Voltage |
230 VAC |
| Power Rating |
3 HP (2.2 kW) |
| Input Phase |
Single or Three Phase (depending on configuration) |
| Frequency Range |
0.1–400 Hz (typical) |
| Output Voltage |
0–230 VAC adjustable |
| Control Method |
V/F (voltage/frequency) control |
| Overload Capacity |
150% rated current for 1 minute |
| Enclosure Rating |
NEMA 1 |
| Mounting Type |
DIN-rail or panel mount |
| Cooling Method |
Fan-cooled |
| Protection Features |
Overcurrent, overvoltage, overload, ground fault |
| Operating Temperature |
–10°C to +50°C |
| Storage Temperature |
–20°C to +65°C |
| Communication Interface |
RS-485 (optional, model-dependent) |
| Display/Control |
Keypad and LED indicators |
| Compliance |
CE, UL, cUL |
| Application |
Variable speed control for industrial motors |
| Weight |
Approx. 2.5 kg |
Information About 3G3MV-C2022
The 3G3MV-C2022 is part of Omron’s 3G3MV series of compact, high-performance AC drives engineered for precise motor control and energy efficiency. This inverter converts fixed-frequency AC input into variable-frequency output to control motor speed and torque. Featuring a DIN-rail mount design and NEMA 1 enclosure, it’s ideal for both standalone and panel-mounted installations. The unit supports standard control methods such as V/F control, offers overload protection, and integrates easily with PLCs and automation networks for coordinated system control.
Key Features:
- 230 VAC Operation: Supports single or three-phase 230 V AC supply for industrial motors.
- 3 HP (2.2 kW) Power Rating: Suitable for mid-range drive applications requiring moderate load control.
- Variable Frequency Control: Provides smooth speed adjustment and energy-efficient motor operation.
- Compact DIN-Rail Mount Design: Enables easy installation in control panels or enclosures.
- NEMA 1 Enclosure: Offers protection against dust and accidental contact in indoor environments.
- Integrated Motor Protection: Includes overload, overvoltage, and short-circuit protection.
- Flexible Control Options: Supports analog input, digital input, and serial communication interfaces.
- Energy Efficient: Optimized for reduced power consumption and improved motor performance.
The 3G3MV-C2022 delivers the reliability and precision required for motor control in industrial automation, conveyors, fans, and process equipment.
