Description

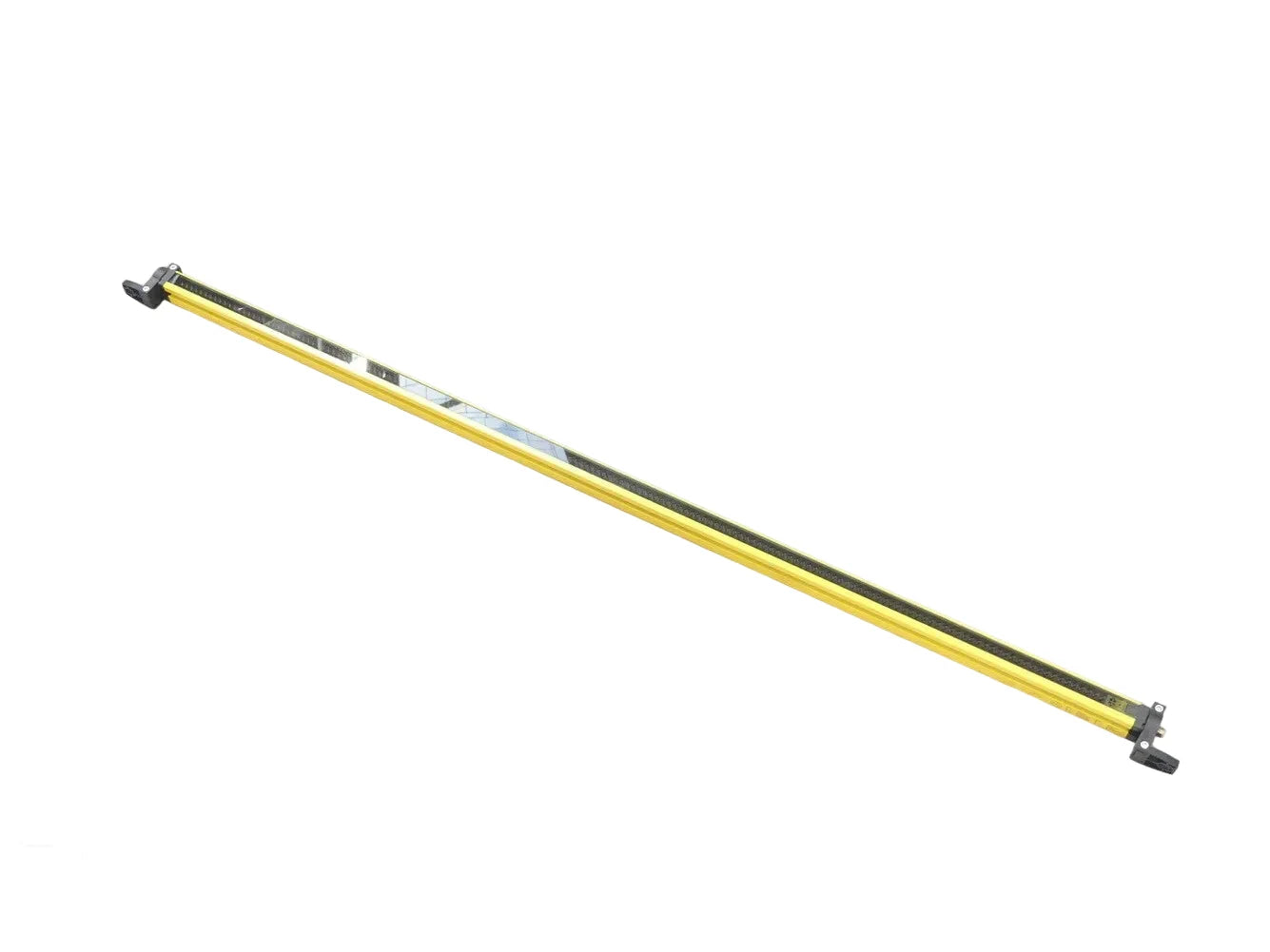

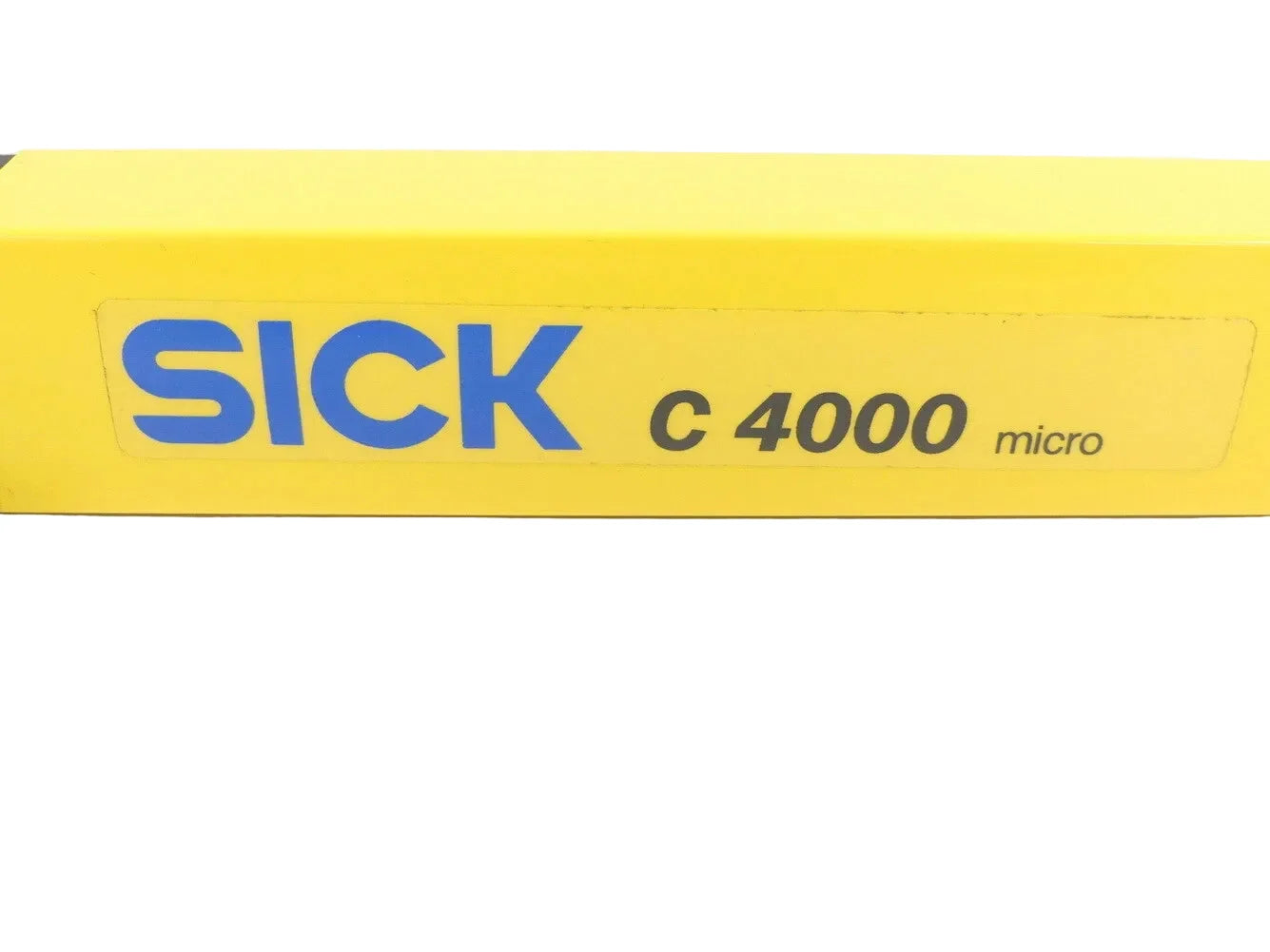

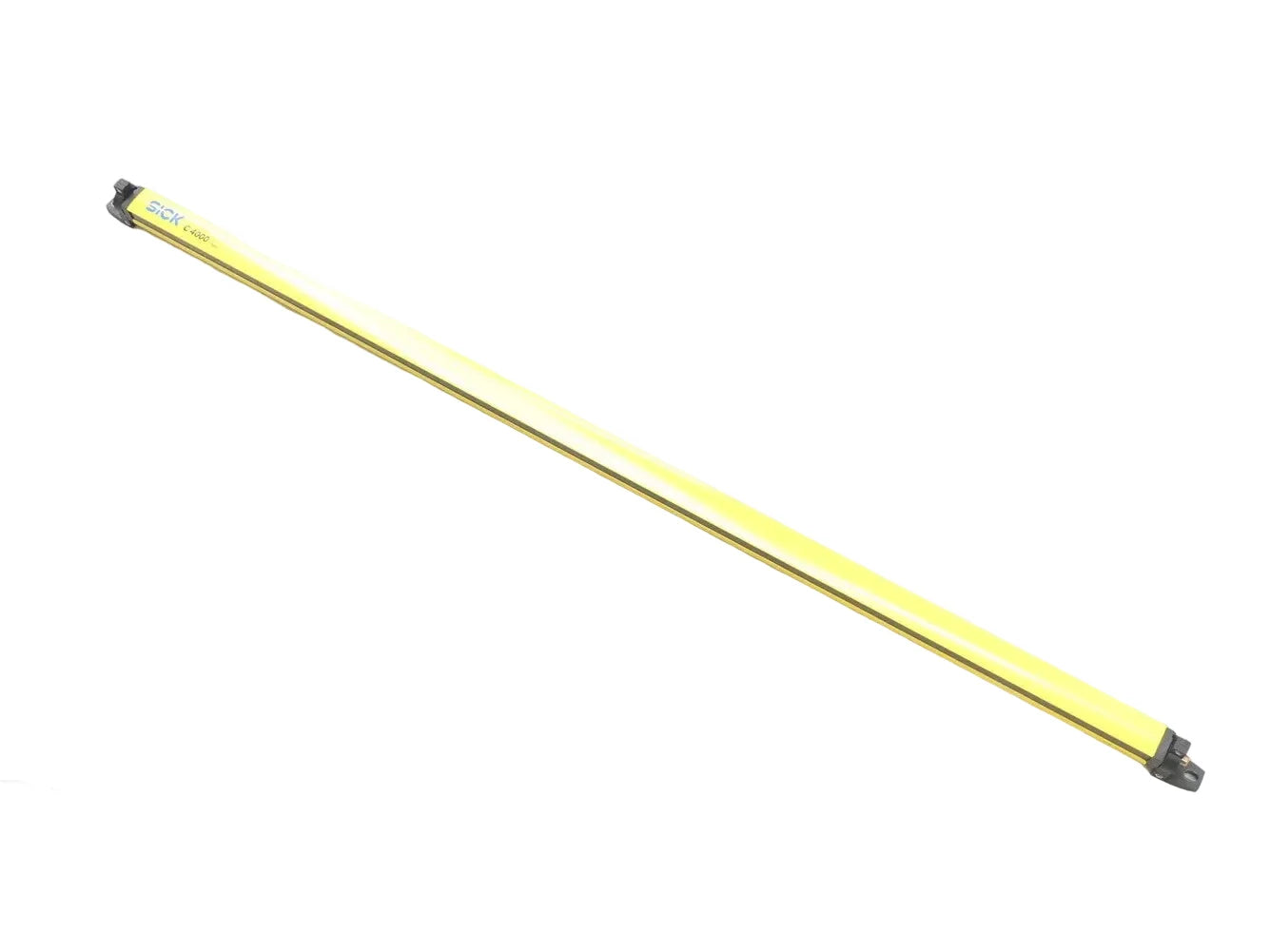

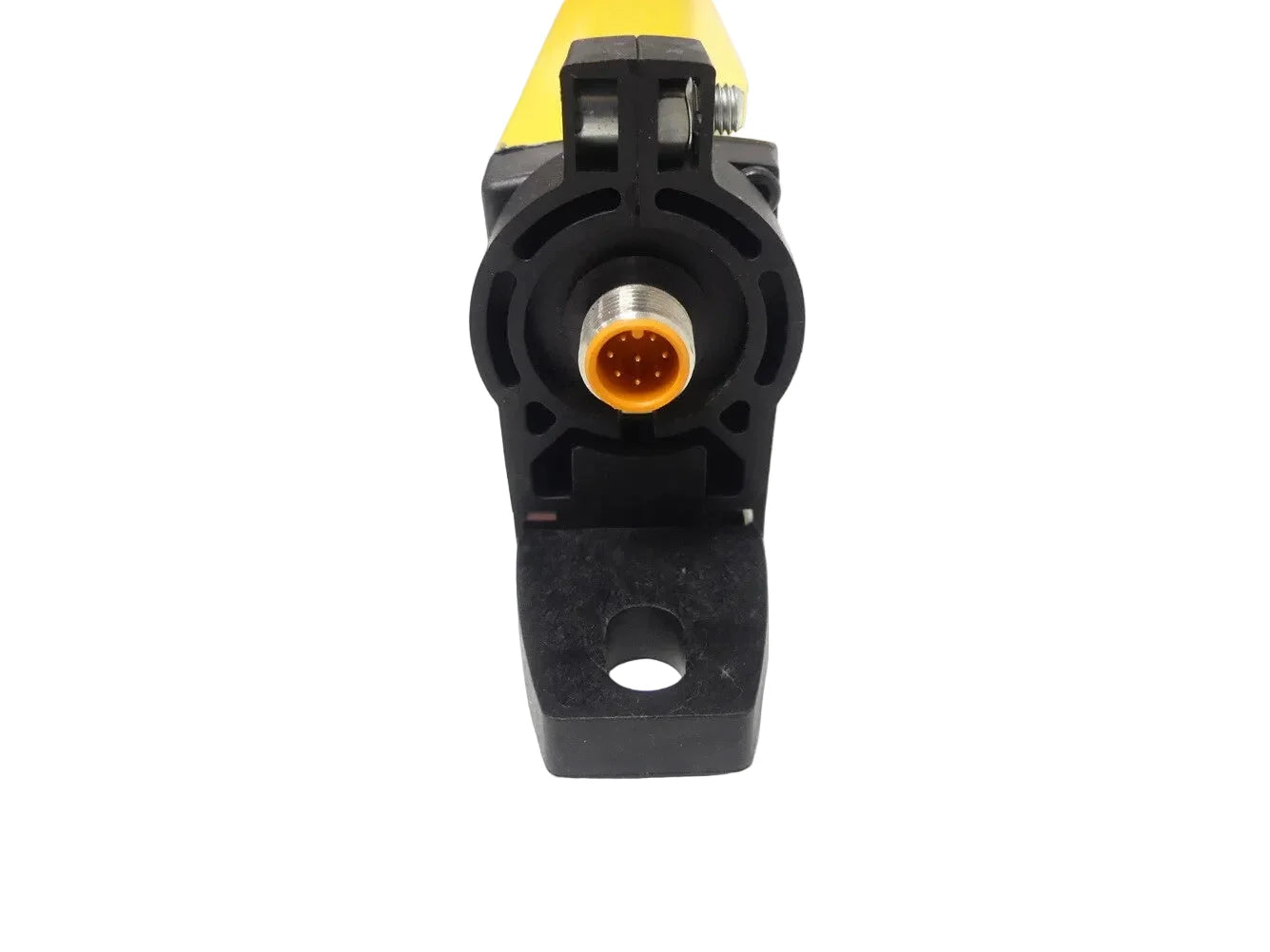

The SICK C41S-1201AA300 is a C4000 Micro safety light curtain sender designed for high-resolution machine guarding in compact industrial applications. It provides reliable finger protection with Type 4 safety performance and a slim housing for space-constrained installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
C41S-1201AA300 |
| Subcategory |
Safety Light Curtains |
| Series |
C4000 Micro |
| System Part |
Sender |
| Resolution |
14 mm |
| Protective Field Height |
1200 mm |
| Scanning Range |
Up to 5 m |
| Synchronization |
Optical Synchronization |
| Safety Type |
Type 4 (IEC 61496-1) |
| Safety Integrity Level |
SIL 3 (IEC 61508) |
| Safety Category |
Category 4 (EN ISO 13849) |
| Performance Level |
PL e (EN ISO 13849) |
| PFHD |
15 × 10⁻⁹ per hour |
| Mission Time (TM) |
20 years |
| Protection Class |
Class III (IEC 61140) |
| Supply Voltage |
24 VDC (19.2–28.8 VDC) |
| Residual Ripple |
≤ 10% |
| Housing Material |
Aluminum Extruded Profile |
| Housing Cross-Section |
33.5 mm × 28.5 mm |
| Ingress Protection |
IP65 |
| Operating Temperature |
-30°C to +55°C |
| Storage Temperature |
-30°C to +70°C |
| Weight |
1,235 g |
Information About C41S-1201AA300
The C41S-1201AA300 is part of SICK’s C4000 Micro safety light curtain series, engineered to deliver high-resolution finger protection in compact machinery designs. This sender operates as one half of a matched Type 4 safety light curtain system, working in conjunction with a compatible receiver to ensure reliable hazard detection. It meets stringent international safety standards including PL e and SIL 3, making it suitable for safety-critical industrial environments. The slim aluminum housing supports installation where space is limited while maintaining robust environmental protection.
Key Features
- 14 mm High-Resolution Detection: Enables precise finger protection for hazardous machine access points.
- Type 4 Safety Performance: Designed in accordance with IEC 61496-1 for the highest level of machine safety.
- PL e And SIL 3 Compliance: Supports advanced functional safety architectures in high-risk applications.
- Compact Protective Height: 1200 mm sensing field provides effective vertical coverage in restricted spaces.
- Optical Synchronization: Ensures stable and accurate alignment with the corresponding receiver.
- Slim C4000 Micro Housing: Space-efficient aluminum profile supports compact machine integration.
- Wide Environmental Operating Range: Maintains reliable performance from -30°C to +55°C.
The C41S-1201AA300 delivers the reliability and precision required for compact, high-performance machine safety and finger protection systems.
