Description

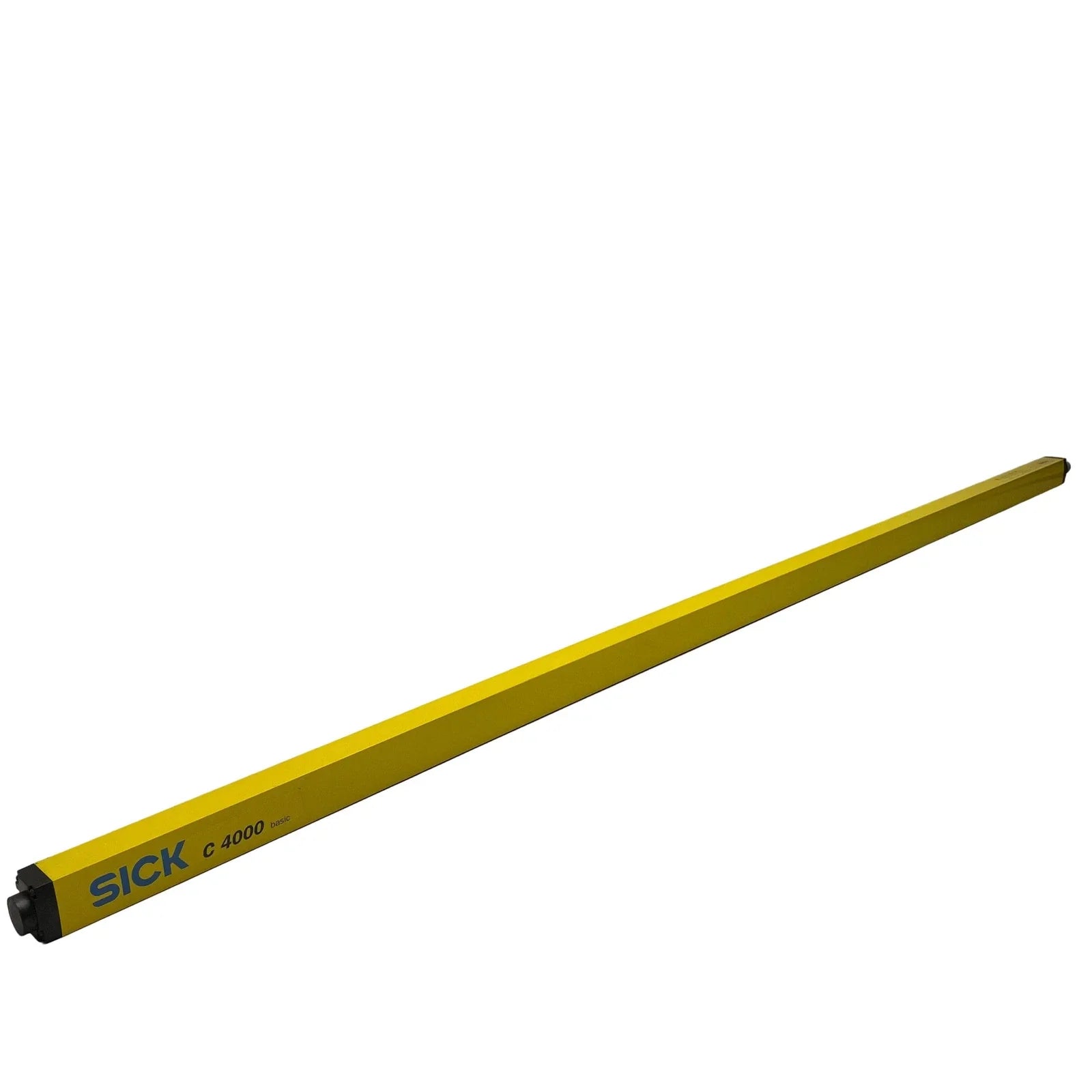

The SICK C40S-1803AA030 is a safety light curtain sender designed for reliable machine guarding in industrial automation environments. It provides a tall protective field with certified Type 4 safety performance to support advanced personnel protection systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
C40S-1803AA030 |
| Subcategory |
Safety Light Curtains |
| Series |
C4000 |
| System Part |
Sender |
| Resolution |
30 mm |
| Protective Field Height |
1800 mm |
| Scanning Range |
Up to 6 m |
| Synchronization |
Optical Synchronization |
| Safety Type |
Type 4 (IEC 61496-1) |
| Safety Integrity Level |
SIL 3 (IEC 61508) |
| Safety Category |
Category 4 (EN ISO 13849) |
| Performance Level |
PL e (EN ISO 13849) |
| Protection Class |
Class III (IEC 61140) |
| Supply Voltage |
24 VDC (19.2–28.8 VDC) |
| Residual Ripple |
≤ 10% |
| Housing Material |
Aluminum Extruded Profile |
| Housing Cross-Section |
48 mm × 40 mm |
| Ingress Protection |
IP65 |
| Operating Temperature |
0°C to +55°C |
| Storage Temperature |
-25°C to +70°C |
| Weight |
3,680 g |
Information About C40S-1803AA030
The C40S-1803AA030 is part of SICK’s C4000 safety light curtain series, engineered to deliver dependable machine guarding in industrial environments. This sender forms the transmitting component of a Type 4 safety light curtain system and is designed to operate in conjunction with a compatible C4000 receiver. It features optical synchronization to ensure stable beam alignment and consistent system operation. The rugged aluminum housing and high ingress protection rating support long-term use in demanding automation applications.
Key Features
- Type 4 Safety Architecture: Designed in accordance with IEC 61496-1 to meet the highest machine safety requirements.
- PL e And SIL 3 Compliance: Supports advanced functional safety systems for high-risk industrial applications.
- Extended Protective Height: 1800 mm sensing field enables effective area and access protection.
- Short-Range Scanning Capability: Optimized for installations requiring scanning distances up to 6 meters.
- Optical Synchronization: Ensures stable and accurate operation with the corresponding receiver.
- Rugged Industrial Housing: Extruded aluminum profile with IP65 protection ensures durability in harsh environments.
- Wide Operating Temperature Range: Maintains reliable performance in typical industrial conditions.
The C40S-1803AA030 delivers the reliability and precision required for advanced industrial machine safety and personnel protection systems.
