Description

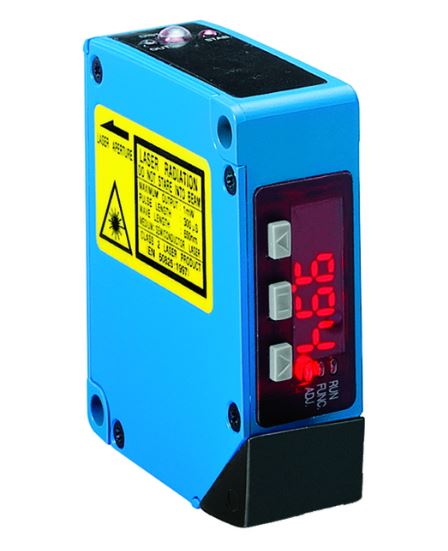

The SICK OD-30-04P850 is a compact displacement sensor designed for precise distance and position measurement in industrial automation systems. It provides a sensing range of 30 mm with a ±4 mm measuring window and operates using a PNP output with a 12–24 V DC supply.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Sensors |
| Part Number |
OD-30-04P850 |
| Subcategory |
Displacement Sensors |
| Sensor Type |
Displacement Sensor |
| Sensing Range |
30 mm ± 4 mm |
| Output Type |
PNP |
| Supply Voltage |
12…24 V DC |
| Electrical Connection |
M12 connector, 8-pin |
| Measurement Principle |
Optical distance measurement |
| Series |
OD Hi |
| Application |
Position and displacement monitoring |
| Housing Type |
Compact industrial design |
| Weight |
1.00 lbs |
Information About OD-30-04P850
The OD-30-04P850 is part of SICK’s OD Hi series of displacement sensors developed for accurate non-contact distance measurement. It is designed to deliver stable and repeatable measurement results within a defined sensing window, supporting precise positioning tasks. The sensor uses a PNP switching output for straightforward integration into standard PLC and control systems. Its compact housing and M12 8-pin connector support easy installation in space-constrained industrial environments.
Key Features
- Defined Displacement Measuring Range: Supports accurate sensing within a 30 mm range with a ±4 mm tolerance window for precise positioning tasks.
- PNP Output Configuration: Enables direct and reliable connection to common industrial control and automation systems.
- OD Hi Optical Technology: Provides stable and repeatable measurement performance for displacement and distance monitoring.
- Compact Sensor Design: Allows installation in confined machine layouts without compromising measurement accuracy.
- Standard M12 Connector Interface: Uses an 8-pin M12 connection for secure electrical integration and simplified wiring.
- Wide Operating Voltage Range: Operates on 12 to 24 V DC for compatibility with standard industrial power supplies.
The OD-30-04P850 delivers the reliability and precision required for accurate displacement measurement in industrial automation and quality control applications.
